31
SimpleSet
TM

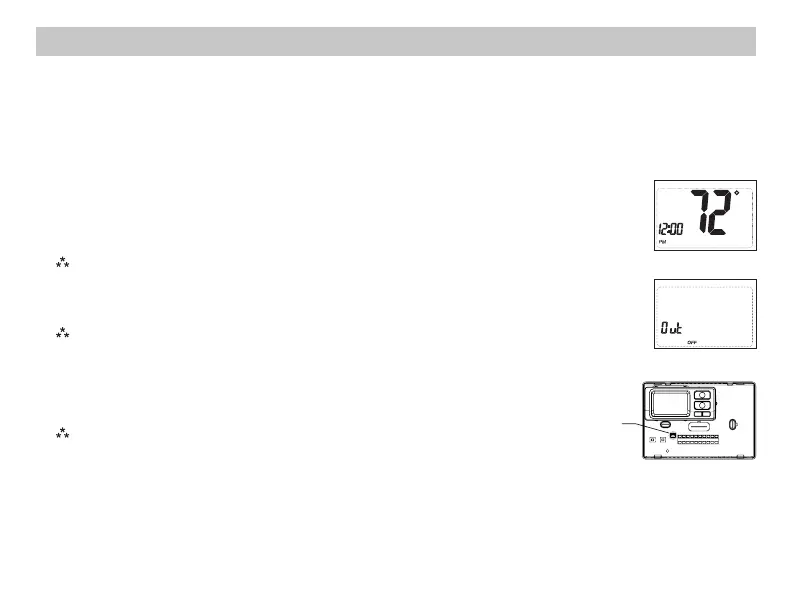

Field Programming
This feature is used for transferring configuration and program schedule from the master to the target
thermostat. All thermostats for a job can be mounted and powered up. Configure and program one
thermostat. This will be the master. The master will be used to copy the program to the rest of the
thermostats.
Preparing the master to Send:
1. The master must be powered with 24 VAC.
2. Verify the master thermostat is in OFF mode.
3. Press SYS (left) button until OFF mode displays.
4. Remove cover of the master thermostat by gently pulling near one of the corners at
the top of the thermostat.
Note: Do not force open. Use a small coin or slotted screwdriver to release tabs if necessary.
5. Press the up and down buttons and CONFIG switch simultaneously for 5 seconds.
6. The OUT screen displays indicating the master thermostat is ready to
transfer data.
Note: Press the up and down buttons and CONFIG switch simultaneously for 5
seconds to exit from data transfer mode and to return the master to the
OFF mode.
7. Turn off power to the master and remove it from the wall.
8. Connect the master to the target using the 3 wire connector. Attach one end to the
Master’s FP pins and the other end to the Target’s FP pins.
Note: Target thermostat must be powered with 24 VAC for field
programming to occur
When the connection has been made correctly, the master thermostat will power
up and the target will count from 5 down to 1. It will then display the LOCK
confirming the data has been saved in memory.
When all target thermostats have been completed, reinstall the master thermostat.
Press the up and down buttons and the CONFIG switch simultaneously for 5 seconds to exit from the data
transfer mode and to return the master thermostat to the OFF mode.
FP pins
OFF
S1 S2 R C W
O/B
GY1 W2 W3Y2
RESET CONFIG
FP
Requires SimpleSet
TM
Transfer Cable (ACC-WIH21)
