Icom Amateur IC-2200H User Manual

II
QUICK REFERENCE GUIDE

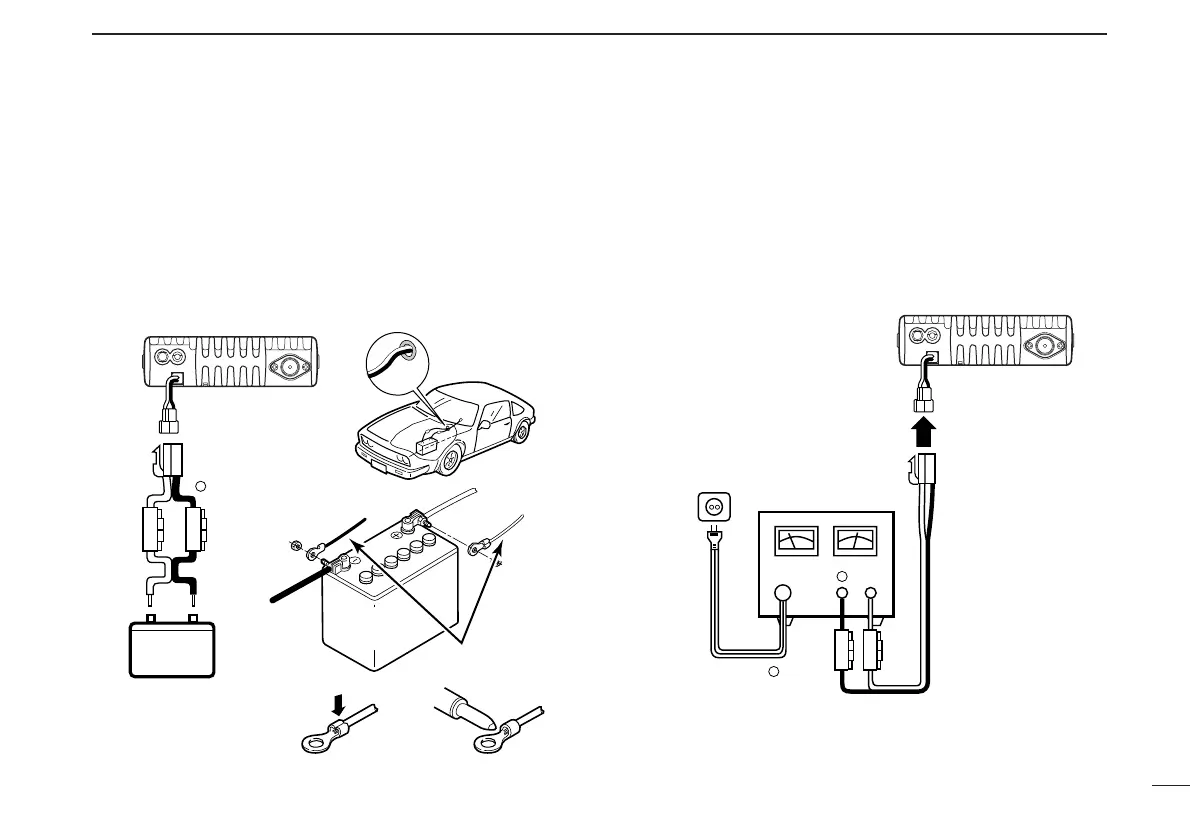

D Battery connection
☞ NEVER connect the transceiver directly to a 24 V battery.
☞ DO NOT use the cigarette lighter socket for power con-
nections. (See p. 5 for details)
Attach a rubber grommet when passing the DC power cable
through a metal plate to prevent short circuiting.
• CONNECTING TO A DC POWER SOURCE
• See p. 90 for fuse replacement.
D DC power supply connection
Use a 13.8 V DC power supply with at least 15 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.
• CONNECTING TO A DC POWER SUPPLY
• See p. 90 for fuse replacement.
DC power
supply 13.8 V
to an
AC
outlet
Fuses
20 A
black
red⊕
−
⊕
−
IC-2200H
Fuses
20 A
Crimp Solder
black
red⊕
Grommet
IC-2200H
−
12 V
12 V
battery
Supplied
DC power cable
NOTE:
Use terminals for the
cable connections.
+ red
_ black

Icom Amateur IC-2200H Specifications

General

Frequency Range	144-148 MHz
Mode	FM
Weight	1.2 kg
Receiver Sensitivity	0.18 μV (12 dB SINAD)
Voltage	13.8V DC ±15%
Antenna Connector	SO-239
Memory Channels	207 (6 scan edges)
Type	Mobile
Current drain RX	1.0A
Output Power	65W, 25W, 10W
Current drain TX	15.0A (max)
