Icom IC-2300H - 3 BASIC OPERATION: Receiving; Receiving Signals and Monitor Function

W2
W2
W2
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
UNSOLDER
Solder
remover
3 - 2
W2
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
4 screws 9 screws
W2
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
Chassis

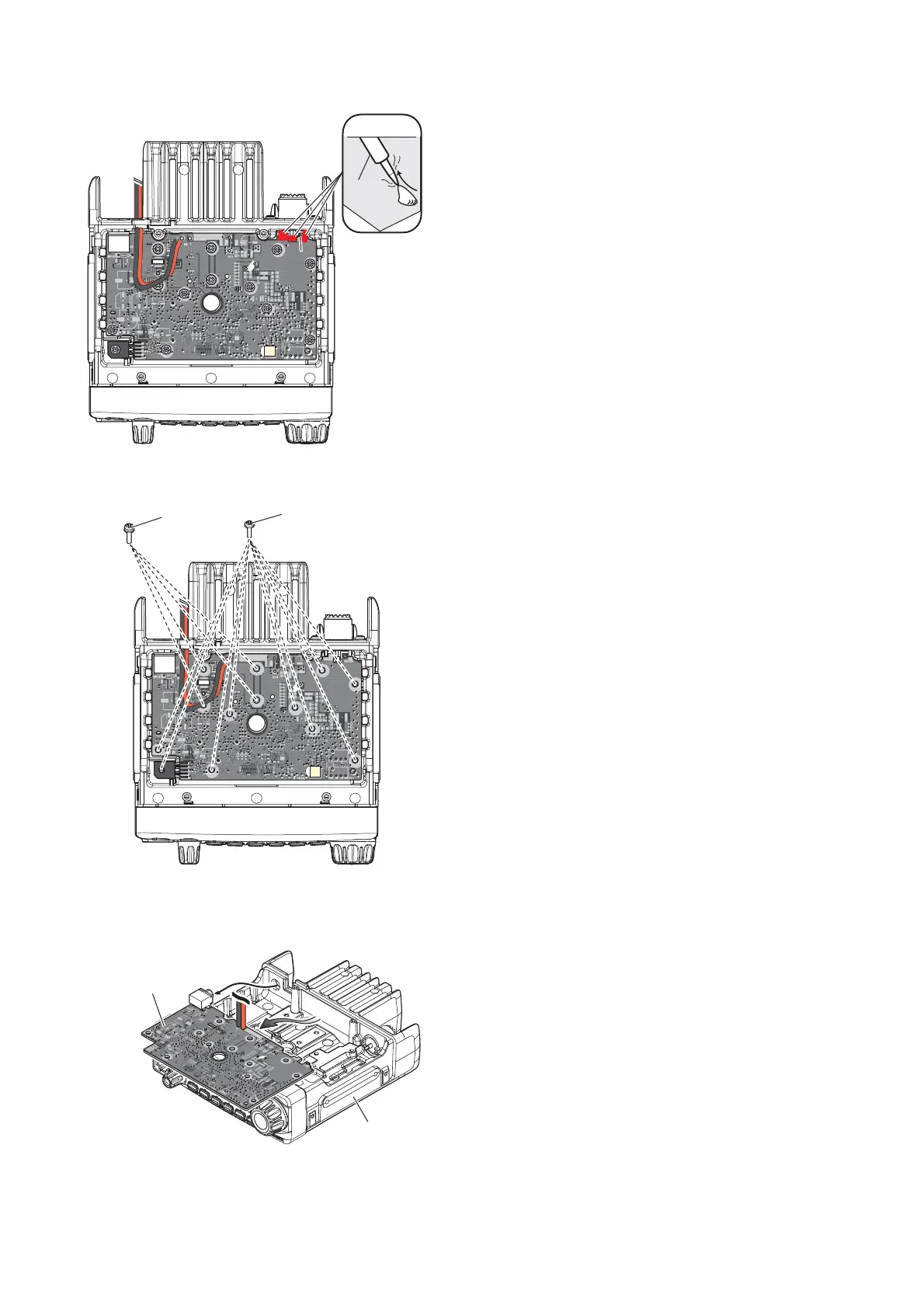

5) Unsolder 3 points at the antenna connector.
6) Remove the total of 13 screws from the MAIN UNIT.
7) Remove the MAIN UNIT from the chassis in the di-
rection of the arrow.
REMOVING THE MAIN UNIT (Conitunued)
