Icom IC-7100 Quick Start Guide

2
Figure 2
B. Menu Selection
The first thing to understand about the radio is that it has a touch screen. There are five
soft keys (virtual buttons) across the bottom of the screen, providing access to a menu of
special functions. The functions of the soft keys change depending on which menu or

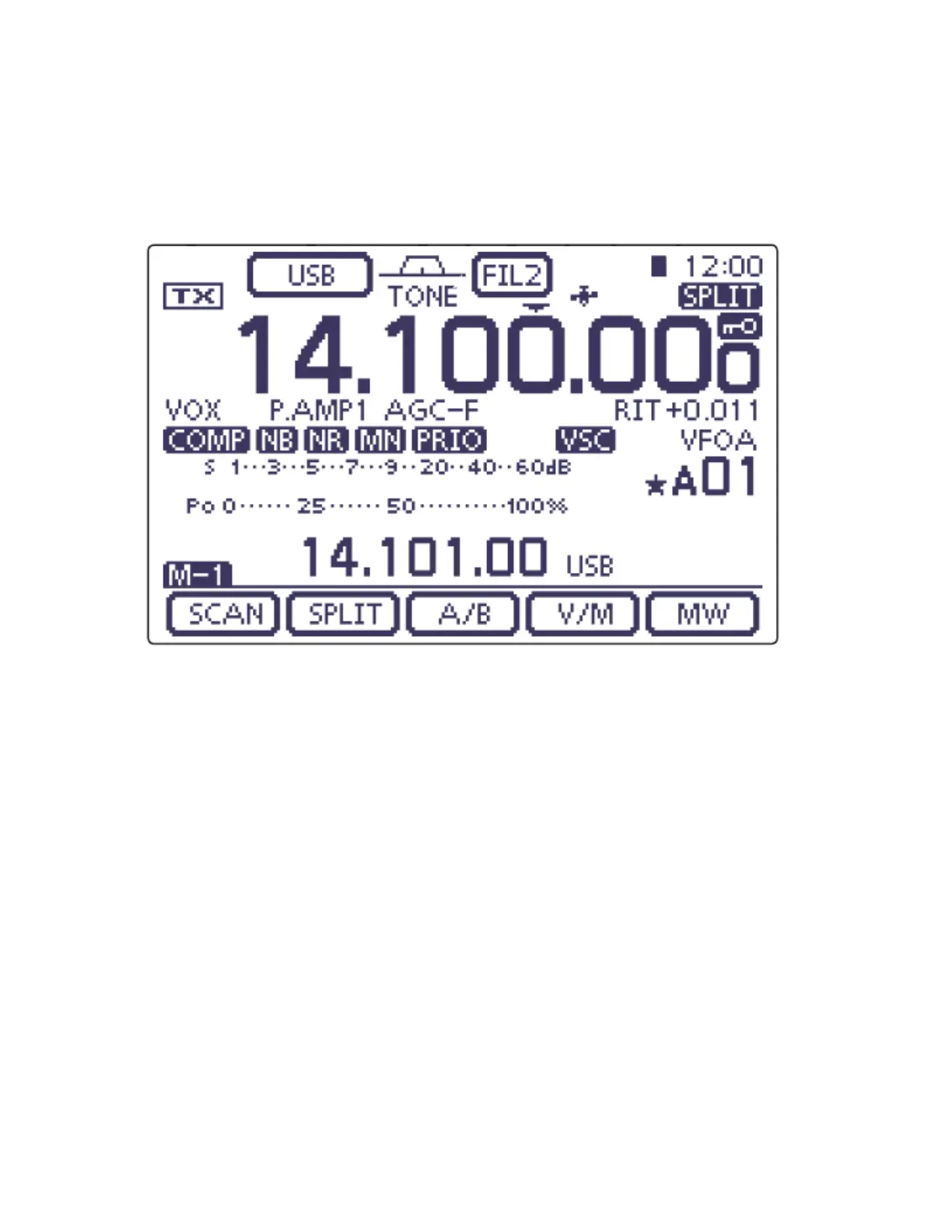

sub-menu you are in. The menu that is being displayed in Figure 2 is Menu-1, as
indicated by the M-1 indication just above the left-most soft key.
To scroll through the various menus, press the MENU button repeatedly. As seen in
Figure 1, it is a “real” button, located just below the left corner of the display.

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
