IC-746 FAQ

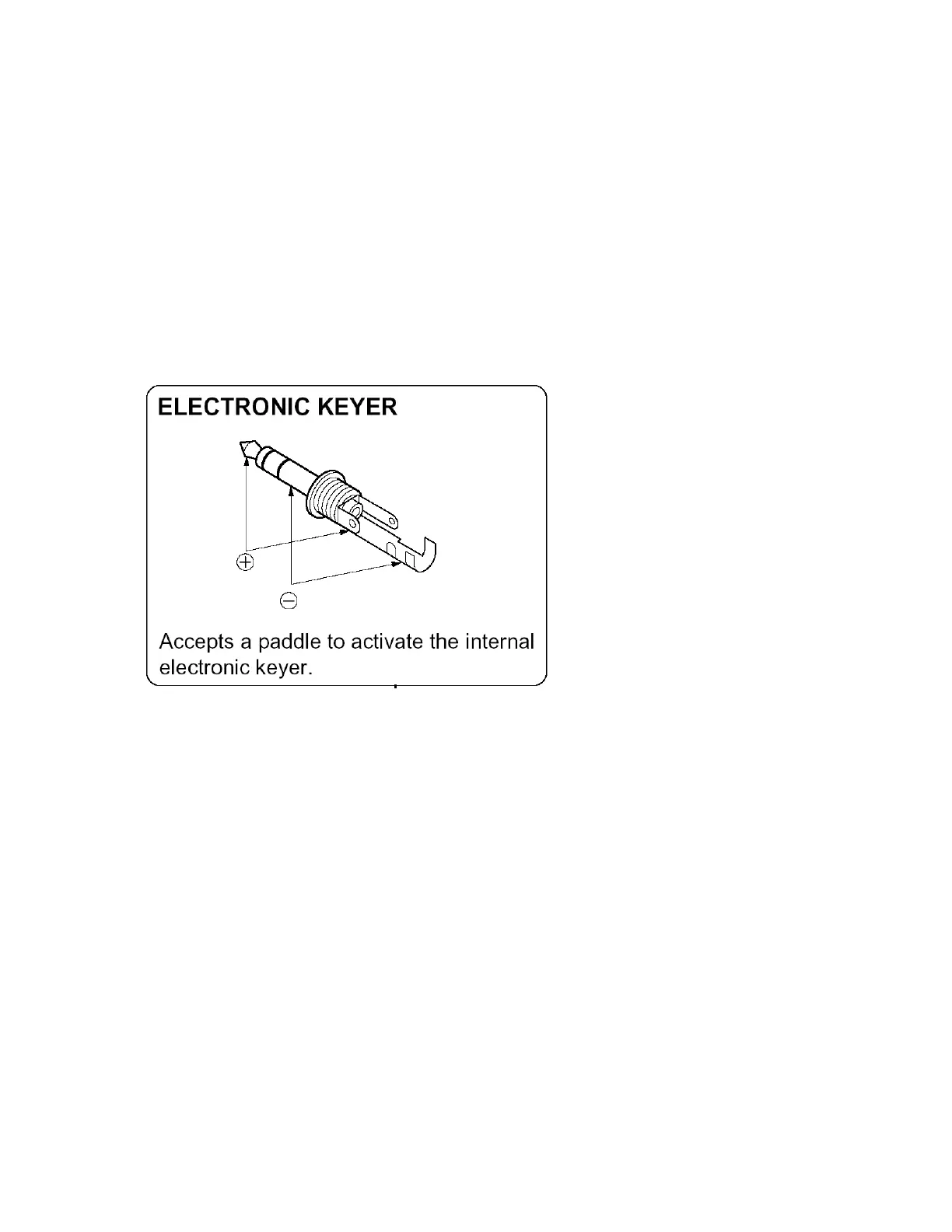

tip ring sleeve
oooo ==== ]]]]]]} ---------> 3 cond wire to paddles
(dit) (dash) (-)
To set the radio to use the internal electronic keyer, You do have to go to the "key", "set"
menu and tell it you will be using paddles. See Page 23 and page 27 in the operation
manual. While in CW mode press KEY(F4), then press SET(F5), Press the down arrow(F2)
until you reach the sixth menu (KEYER TYPE), Use the Main tuning knob to set the type of
keyer to "Elec Key". (or "bug Key" to use the bug without electronic keyer)
3.4.4 Can I use the internal and external keyers at the same time?
Sure ... you can have an iambic keyer plugged into the front, and a straight or external
electronic keyer plugged into the back. You can then use either interchangeably.
We don't yet know of anyone brave enough (let alone capable) to actually use both keys
SIMULTANEOUSLY. Would such an person be a "two fisted" operator? 8)
Page 41 of 113
2003-02-08
