Icom IC-746PRO Series - Page 4

Icom Inc.
1-1-32, Kamiminami, Hirano-ku, Osaka, 547-0003
JAPAN
Phone : 06 6793 5302 Fax : 06 6793 0013
URL : http://www.icom.co.jp/
Page. 4 of 7

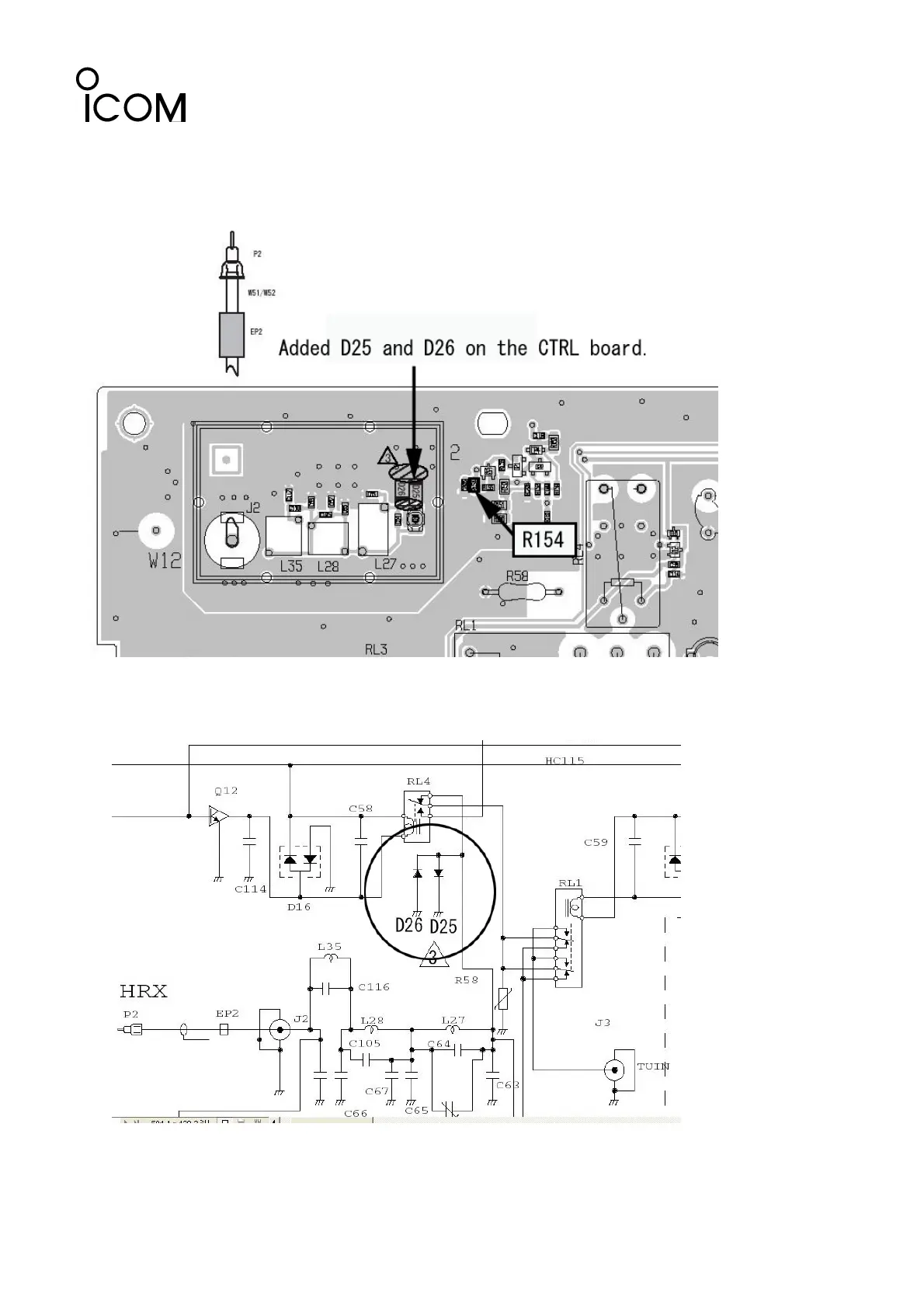

Parts Location on the CTRL board. (D25, D26 and R154)
Schematic Diagram of the CTRL board. (D25 and D26)
