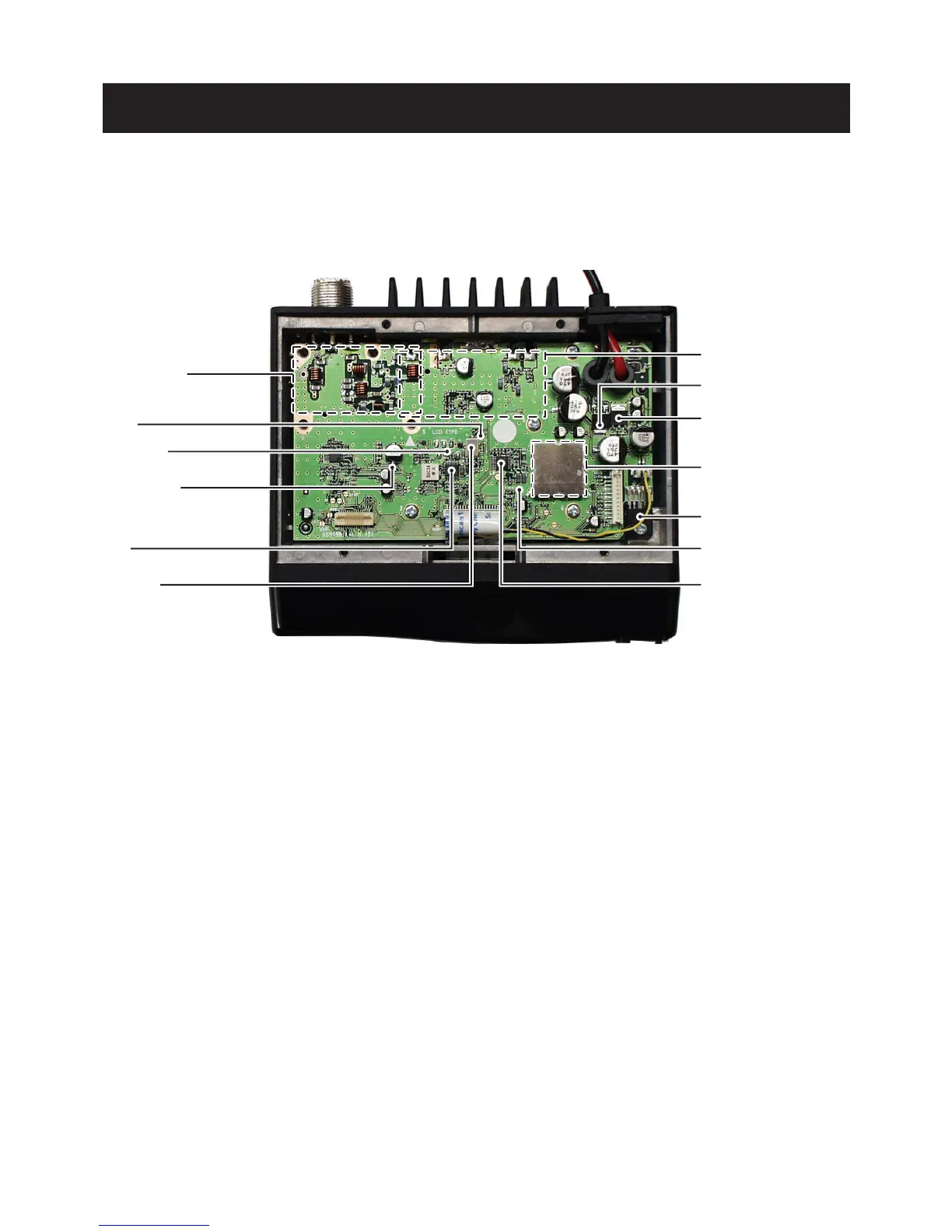

2 - 1
SECTION 2
INSIDE
VIEW
Antenna switch/
Low-pass filter circuit
Mixer*
(Q3:
3SK299)
2nd IF filter*
(FI2:
ALFYM450F=K)
D/A conv
er
ter*
(IC6:
M62363FP-650C)
IF IC
(IC1:
T
A31136FN)
1st IF filter
(FI1:
FL-335)
* Located under side of the point.
Final FET module
(IC3:
S-A
V33)
CPU 5V regurator*
(IC10:
AN78L05M)
8V regurator
(IC9:
T
A7808F)
VCO circuit
AF amplifier
(IC8:
LA4425A)
Reference crystal oscillator*
(X2:
CR-740 15.3 MHz)
PLL IC
(IC4:
MB15A02PFV
-1)
4
6
