Icom IC-F15 - Page 29

25
5
BATTERY CHARGING

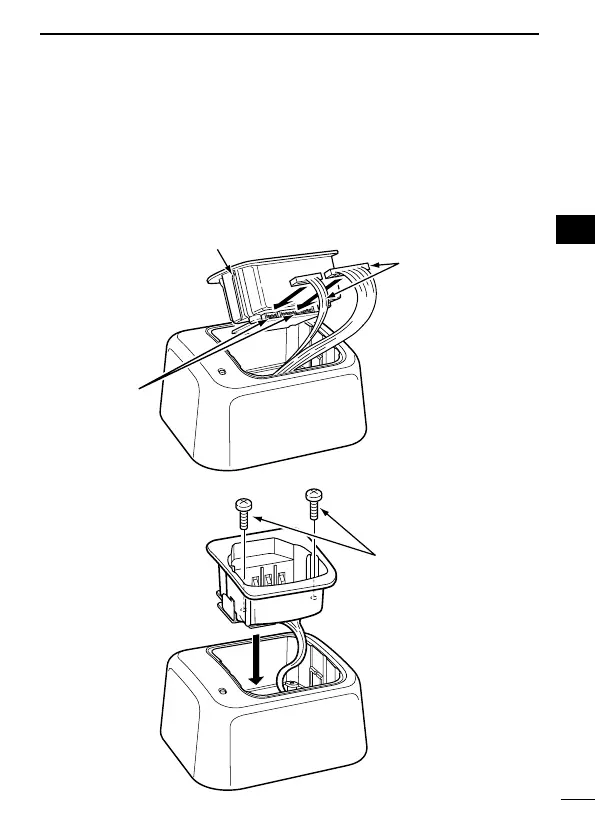

D AD-106 installation
The AD-106 charger adapter must be installed into the BC-119N
or BC-121N before battery charging.
➥
Connect the AD-106 charger adapter and the BC-119N/
BC-121N as below, then install the AD-106 into the holder
space of the BC-119N or BC-121N with the supplied screws.
AD-106
Connectors
Plugs
Screws supplied
with the charger
adapter
