2 - 1
SECTION 2

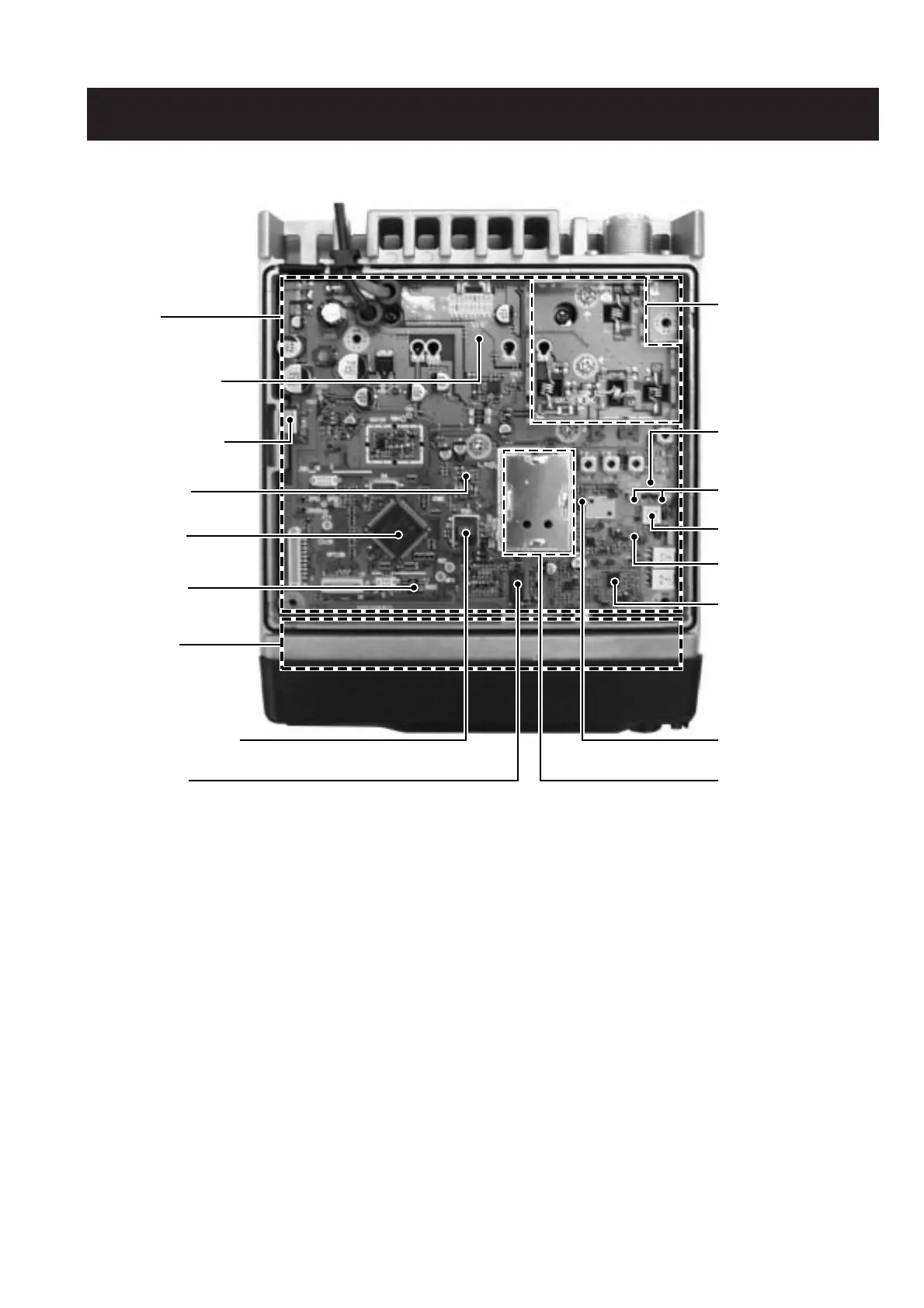

INSIDE VIEW
MAIN unit
Power module*
(IC1
1 : SC-1
188)
AF power amplifier
(IC8 : LA4425A)
VCO circuit
PLL
reference TCXO
(X501 : CR-573)
PLL
IC*
(IC12 : MC145190F)
D/A
converter
(IC5 : M62363FP)
FRONT unit
CPU
(IC20 : HD64F3437F16)
EEPROM
(IC27 : X25650S8I-2-5)
Low-pass filter circuit
1st mixer*
(Q2 : 3SK166)
RF amplifier*
(Q1 : 3SK1
16)
1st IF filter
(FI1 : FL-264)
FM IF IC*
(IC1 : MC3372SVM)
Discriminator
(X2 : CDBC455CX16)
Microphone amplifier
circuit
(IC22 :
µ
PC5023GR)
*Located under side
of the point
4
6
Table of Contents
Default Chapter
3
Table of Contents
3
Circuit Description
8
Receiver Circuits
8
Transmitter Circuits
9
Pll Circuits
10
Power Supply Circuits
11
Port Allocations
12
Adjustment Procedures
13
Preparation
13
Initial Set Mode
14
Pll Adjustment
15
Receiver Adjustment
16
Transmitter Adjustment
17
Parts List
18
Semi-Conductor Information
28
Board Layouts
29
Front Unit
29
Main Unit
31
Block Diagram
33
Voltage Diagram
34
Front Unit
34
Main Unit
35
