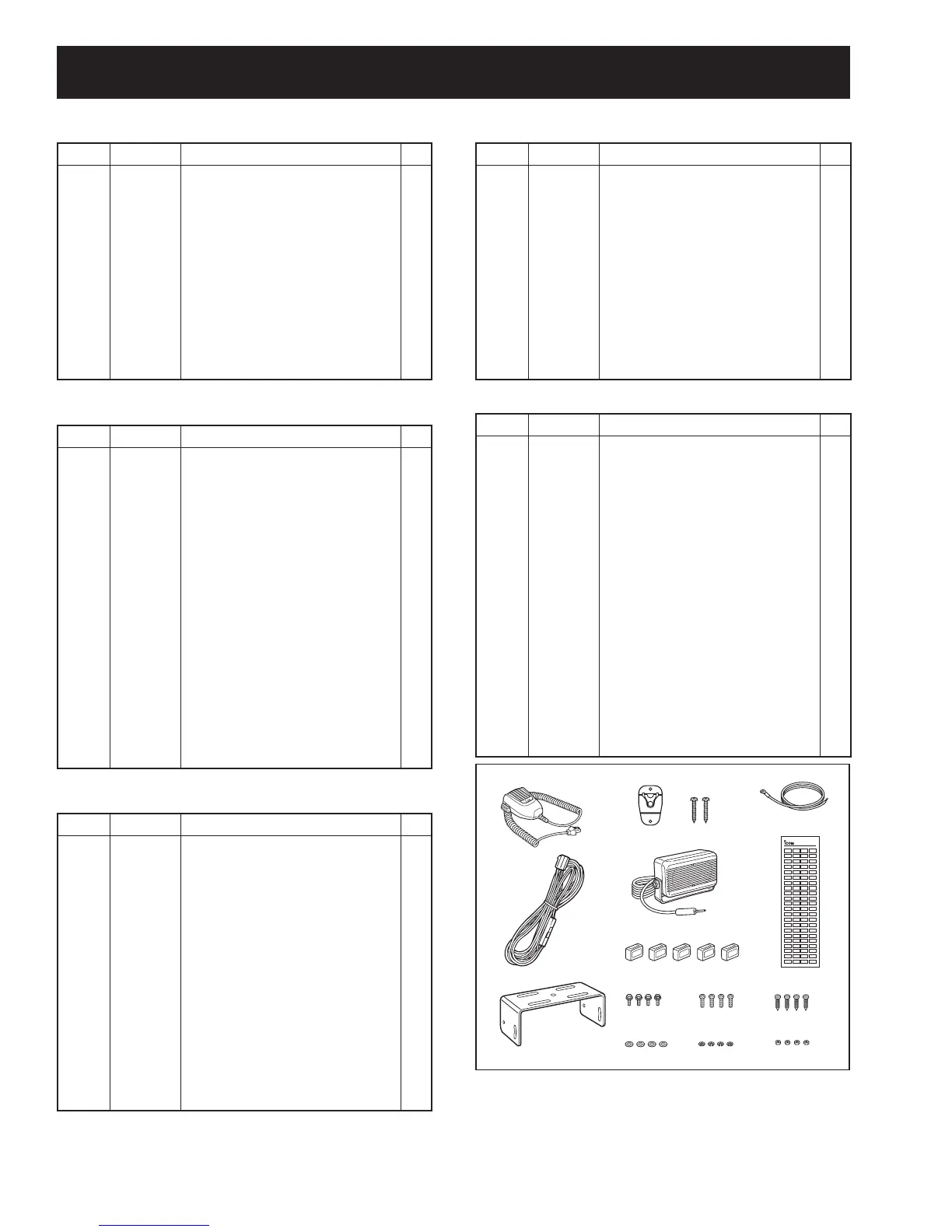

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
Screw abbreviations A0, B0, BT: Self-tapping
PH: Pan head
NI: Nickel
SUS: Stainless
NI-ZU: Nickel-Zinc
[CHASSIS PARTS]
[ACCESSORIES]
REF. NO. ORDER NO. DESCRIPTION QTY.
W1 8900010990 DC power cable OPC-1132 [USA] 1
8900011780 DC power cable OPC-1194 [EUR], [GEN] 1
W2 8900000730 Microphone hanger cable OPC-049 1
MC1
Optional puroduct
Microphone HM-100N [EUR], [GEN] 1
Optional puroduct
Microphone HM-148 [USA] 1
MP1 8010019880 2781 mounting blacket assembly 1
MP2 8820000530 Screw bracket bolts M4 × 8 NI 4
MP3 8810000470 Screw M5 × 12 (+ –) 4
MP4 8810000950 Screw (PH) A0 M5 × 16 4
MP5 8850000150 Flat washer M5 NI BS 4
MP6 8850000390 Spring washer M5 4
MP7 8830000120 Nut M5 4
MP8 8950005110 2289 mic hanger 1
MP9 8930064670 2781 key cap 5
MP10 8930064820 2781 key sheet 1
MP10 8930064820 2781 key sheet 1
MP12 8810004700 Screw (PH) A0 M3 × 16 SUS 2
SP1
Optional puroduct
Speaker SP-22 [F2821/D], [F2810] only 1
[FRONT-B UNIT] (IC-F2800 Series)
REF. NO. ORDER NO. DESCRIPTION QTY.
W1 8900013690 Cable OPC-1425 (N=12, L=92) 1
EP1 8930065150 LCD contact SRCN-2781-SP-N-W 2
MP1 8930064190 2781 front key 1
MP2 8930064220 2781 knob rubber 1
MP3 8930064260 2781 LCD holder Y753 1
MP5 8210021190 2781 reflector 1
MP6 8930064370 2781 T-angle 1
MP7 8210021440 2781 T-front panel assembly 1
MP8 8930064520 2781 UP/DOWN key 1
MP10 8930064380 2781 10-key 1
MP11 8610012160 Knob N324 1
MP12 8810008760 Screw PH BT M2 × 8 NI-ZU 6
MP14 8930064890 2781 T-sheet 1
MP17 8930065250 2781 A-lens 1
MP18 8930065240 2781 B-lens 1
MP20 8930065170 2781 LED sheet 2
REF. NO. ORDER NO. DESCRIPTION QTY.
J1 6510004880 Connector MR-DS-E 01 1
MP1 8010019801 2781 chassis-1 1
MP2 8110008270 2781 cover 1
MP3 8810008660 Screw PH BT M3 × 8 NI-ZU 12
MP4 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP5 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP6 8810009990 Screw PH BT M3 × 8 ZK 2
MP7 8810009990 Screw PH BT M3 × 8 ZK 4
MP8 8930064590 Plate 2781 D-SUB PLATE 1
MP9 8510016740 Case 2781 FILTER CASE Y755 1
MP10 8930048550 2177 clip 1
MP11 8930048520 2156 clip 1
MP12 8810009990 Screw PH BT M3 × 8 ZK 2
[MAIN UNIT]
REF. NO. ORDER NO. DESCRIPTION QTY.
W3 8900013680 Cable OPC-1414 <CMI>T 1
J11 6510023210 CD6125SA1J0 1
EP10 6910010280 Bead HF70BB9.5 × 10.4 × 4.9 1
EP11 6910010280 Bead HF70BB9.5 × 10.4 × 4.9 1
MP1 8510016470 2775 VCO case 1
MP2 8510016460 2775 VCO cover 1
MP3 8510016470 2775 VCO case
MP4 8510016460 2775 VCO cover
MP5 8510014890 2577 DBM case 1
MP8 8930065060 2781 M-plate 1
MP9 8510016820 2781 shield plate 1
[FRONT-A UNIT] (IC-F2700 Series)
REF. NO. ORDER NO. DESCRIPTION QTY.
W1 8900013690 Cable OPC-1425 (N=12, L=92) 1
W2 8900013700 Cable OPC-1426 1
EP1 8930065150 LCD contact SRCN-2781-SP-N-W 2
MP1 8930064250 2781 angle Y754 1
MP2 8930064190 2781 front key 1
MP3 8210021431 2781 front panel assembly 1
MP4 8930064220 2781 knob rubber 1
MP5 8930064260 2781 LCD holder Y753 1
MP7 8210021190 2781 reflector 1
MP9 8610012160 Knob N324 1
MP10 8610012150 Knob N325 1
MP11 8810008660 Screw PH BT M3 × 8 NI-ZU 3
MP12 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP16 8930051500 Seal O-ring (AB) 1
MP18 8830000030 VR nut (C) 1
MP19 8930065250 2781 A-lens 1
MP20 8930065240 2781 B-lens 1
SP1 2510001290 Speaker C062SB504-11 1
