5-2 SOFT WARE ADJUSTMENT
Select an operation using [
↑
] / [
↓
] keys, then set specifi ed value using [
←
] / [
→
] keys on the connected
computer keyboard
ADJUSTMENT ADJUSTMENT CONDITION
MEASUREMENT
VALUE
UNIT LOCATION UNIT ADJUST
LCD
CONTRAST
1 • Operating freq.
• Receiving
: 155.000 MHz FRON Connecta digital
multimeter or an oscillo-
scope to the check point
"CONTRAST".
–2.0 V FRONT R59
CONVENIENT:
The PLL lock voltage can be adjustment automatically.
Set the cursor to "RX LVA"/"TX LVA" and then push [ENTER] key.
CONTRAST CHCK POINT

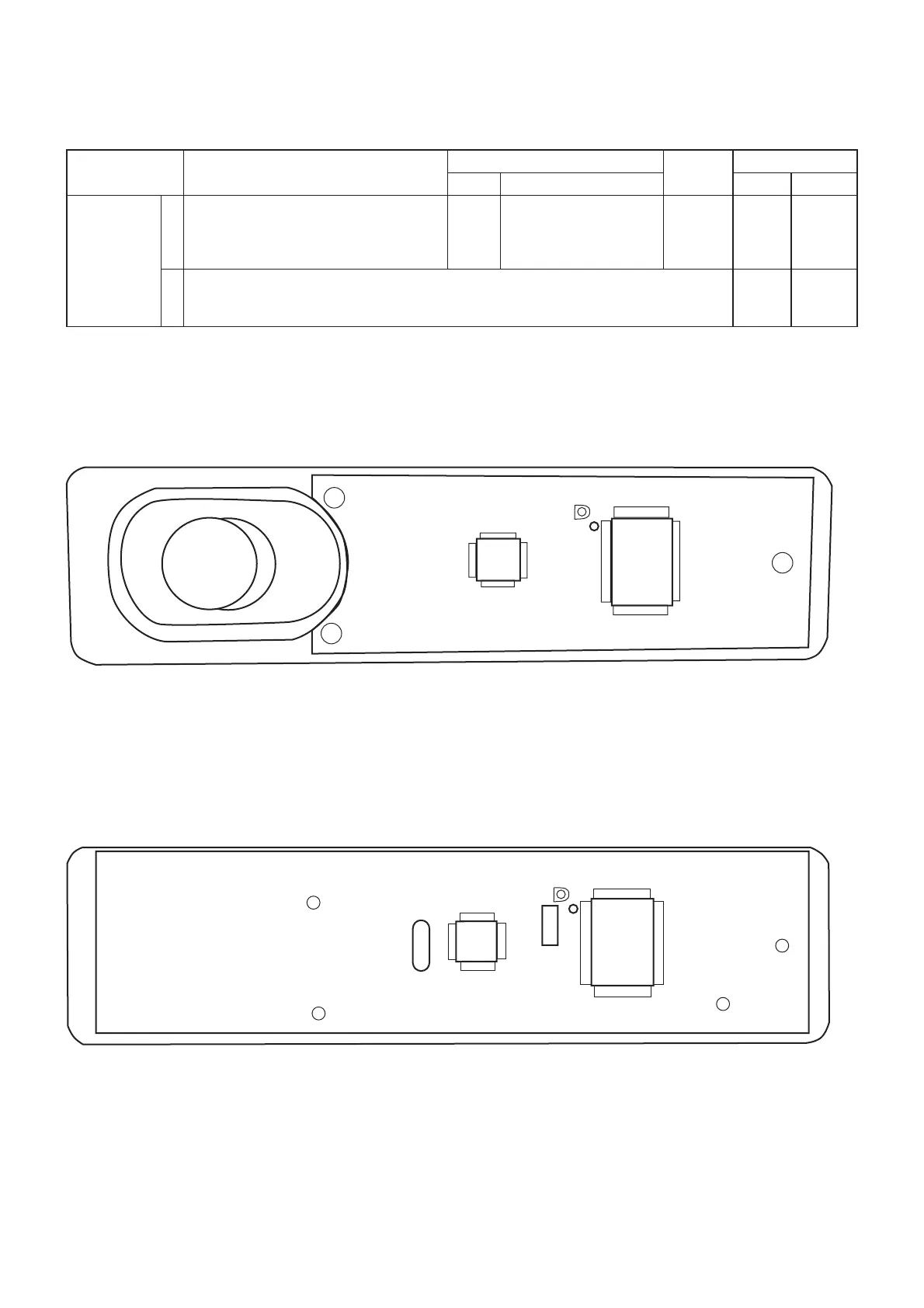

R53: CONTRAST ADJUSTMENT
• FRONT PANEL-A
• FRONT PANEL-B
To Next Page
