Icom IC-F1810 Service Manual

5 - 6

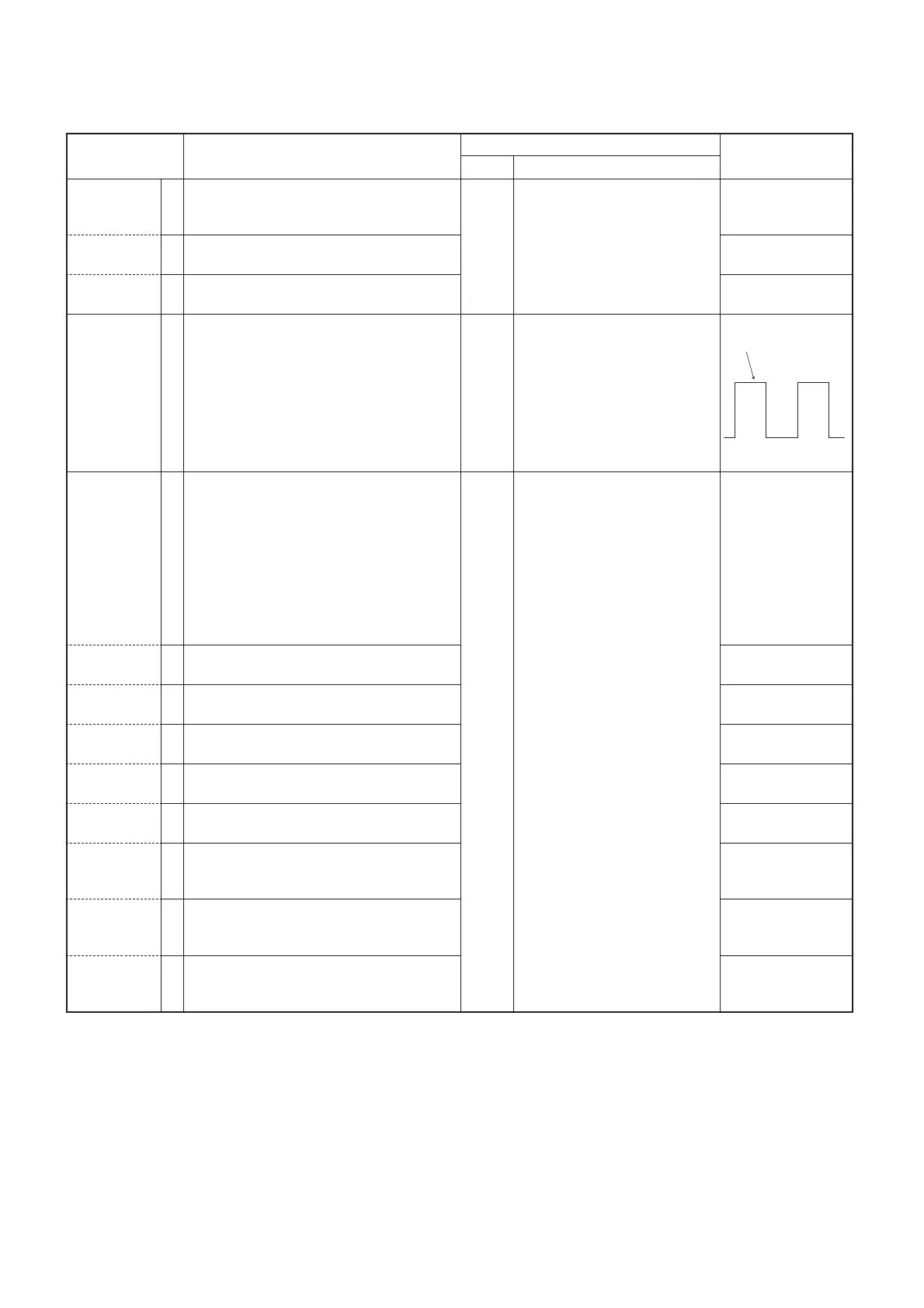

SOFTWARE ADJUSTMENT (Continued)
Select an operation using [
↑
] / [
↓
] keys, then set specifi ed value using [
←
] / [
→
] keys on the connected computer keyboard
ADJUSTMENT ADJUSTMENT CONDITION
MEASUREMENT
VALUE
UNIT LOCATION
OUTPUT
POWER
[Power (Hi)]
1 • Operating CH.
• Transmitting
: CH 3 Rear
panel
Connect an RF power meter to
the antenna connector.
25.0 W [25W]
50.0 W [50W]
[Power (L2)] 2 • Operating CH.
• Transmitting
: CH 2 10.0 W [25W]
25.0 W [50W]
[Power (L1)] 3 • Operating CH.
• Transmitting
: CH 1 2.5 W [25W]
5.0 W [50W]
MODULATION
BALANCE
[BAL]
1 • Operating CH.
• Preset [MOD N]
: CH 11
: 100
Rear
panel
Connect a modulation analyzer
with an oscilloscope to the
antenna connector through an
attenuator.
Set to square wave
form
• No audio applied to the [MIC] connector.
• Set a modulation analyzer as:
HPF
LPF
De-emphasis
Detector
: OFF
: 20 kHz
: OFF
: (P–P)/2
• Push [P0] while transmitting.
FM
DEVIATION
(NARROW)
[MOD N C]
1
• Operating CH. : CH 4
Rear
panel
Connect a modulation ana-
lyzer to the antenna connector
through an attenuator.
±
2.10 kHz
• Connect an audio generator to the [MIC]
connector and set as
: 1.0 kHz/40 mVrms
• Set a Modulation analyzer as:
HPF
LPF
De- emphasis
Detector
• Transmitting
: OFF
: 20 kHz
: OFF
: (P–P)/2
(NARROW)
[MOD N L]
2
• Operating CH.
• Transmitting
: CH 11
±
2.10 kHz
(NARROW)
[MOD N H]
3
• Operating CH.
• Transmitting
: CH 8
±
2.10 kHz
(WIDE)
[MOD W C]
4
• Operating CH.
• Transmitting
: CH 1
±
4.10 kHz
(WIDE)
[MOD W L]
5
• Operating CH.
• Transmitting
: CH 10
±
4.10 kHz
(WIDE)
[MOD W H]
6
• Operating CH.
• Transmitting
: CH 7
±
4.10 kHz
(MIDDLE)
[MOD W C]
([EUR] only)
7
• Operating CH.
• Transmitting
: CH 1
±
3.20 kHz
(MIDDLE)
[MOD W L]
([EUR] only)
8
• Operating CH.
• Transmitting
: CH 10
±
3.20 kHz
(MIDDLE)
[MOD W H]
([EUR] only)
9
• Operating CH.
• Transmitting
: Ch 7
±
3.20 kHz
