Icom IC-F310 Service Manual

3 - 1
SECTION 3 DISASSEMBLY INSTRUCTIONS

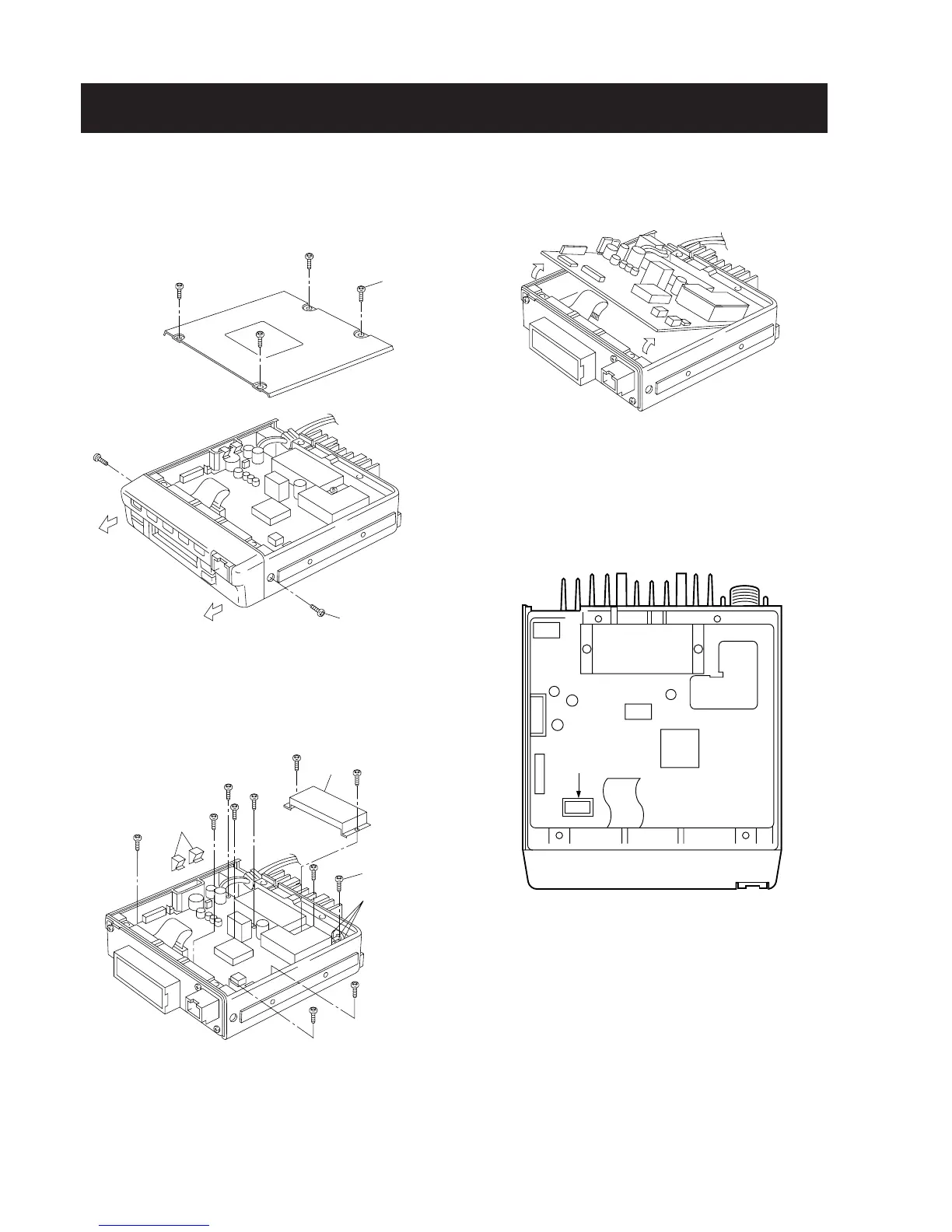

• Opening case
1 Unscrew 4 screws, A, and remove the bottom cover.
2 Unscrew 2 screws, B, and remove the front case.
3 Unscrew 10 screws, C, and remove 2 clips, D.
4 Remove shield case, E.
5 Unsolder 3 points, F, from the antenna connector.
6 Lift the front portion of the main unit and remove it.
• Instration location
UT-96 TONE UNIT
UT-105 SmarTrank 2
TM
Logic Board
A
B
C
F
D
E
J3
J2
UT-96
UT-105
