4
BATTERY CHARGING
D AD-106 installation
The AD-106 charger adapter must be installed into the
BC-119N or BC-121N before battery charging.

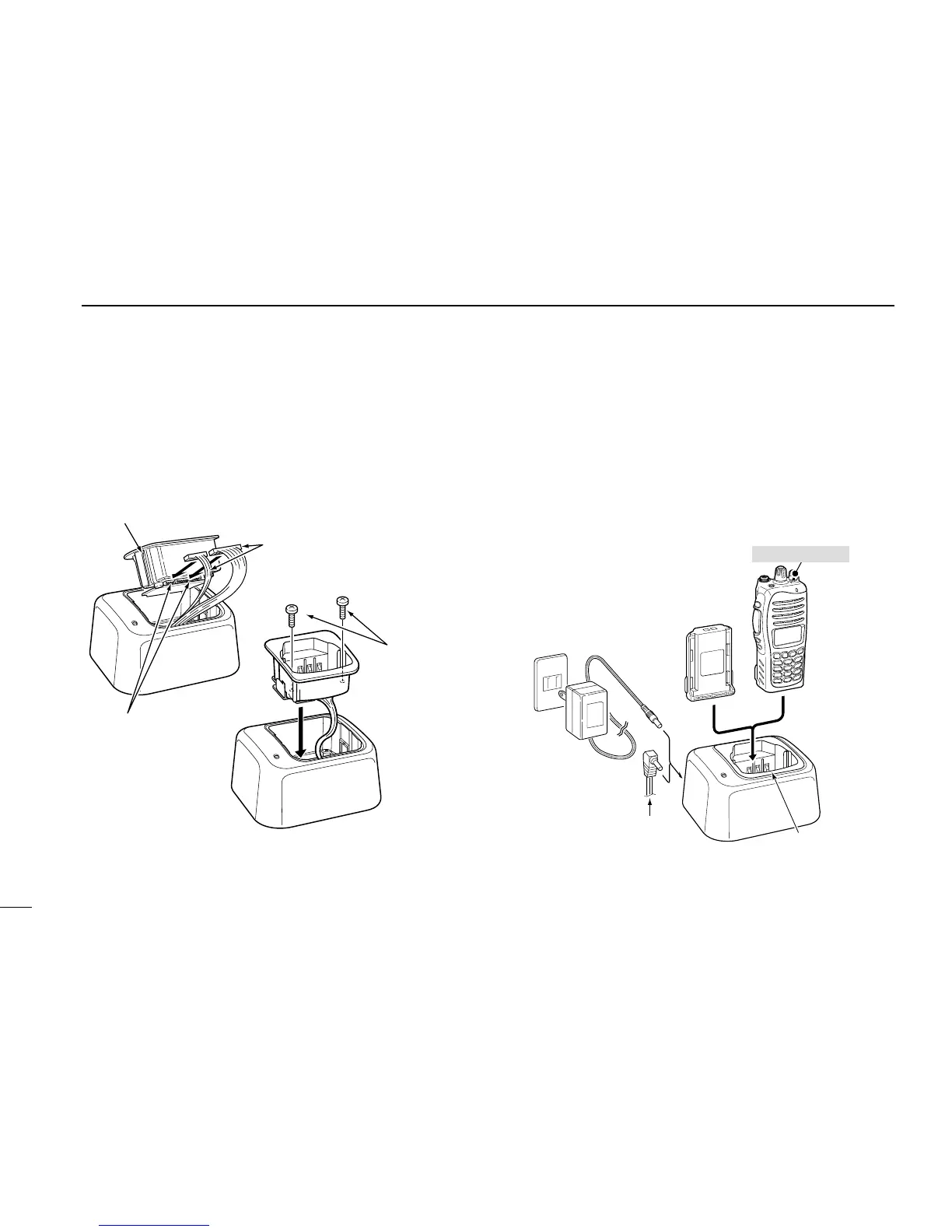

➥ Connect the AD-106 charger adapter and the BC-
119N/BC-121N as below, then install the AD-106 into the
holder space of the BC-119N or BC-121N with the sup-
plied screws.
Screws supplied
with the charger
adapter
AD-106
Connectors
Plugs
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-Ion
battery pack. Charging period: Approx. 3 hours (with BP-
232N)
The following items are additionally required.
• AD-106 charger adapter (purchase separately)
• An AC adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-17L).
AD-106 charger
adapter is installed
in BC-119N.
Optional OPC-515L (for
13.8 V power source) or
CP-17L (for 12 V cigarette
lighter socket) can be used
instead of the AC adapter.
AC adapter
(A different type, or no AC
adapter is supplied, de-
pending on the version.)
Transceiver
Battery
pack
Turn power OFF
To Next Page
