Icom IC-F4261DS User Manual

(Replacement page)
October 2012

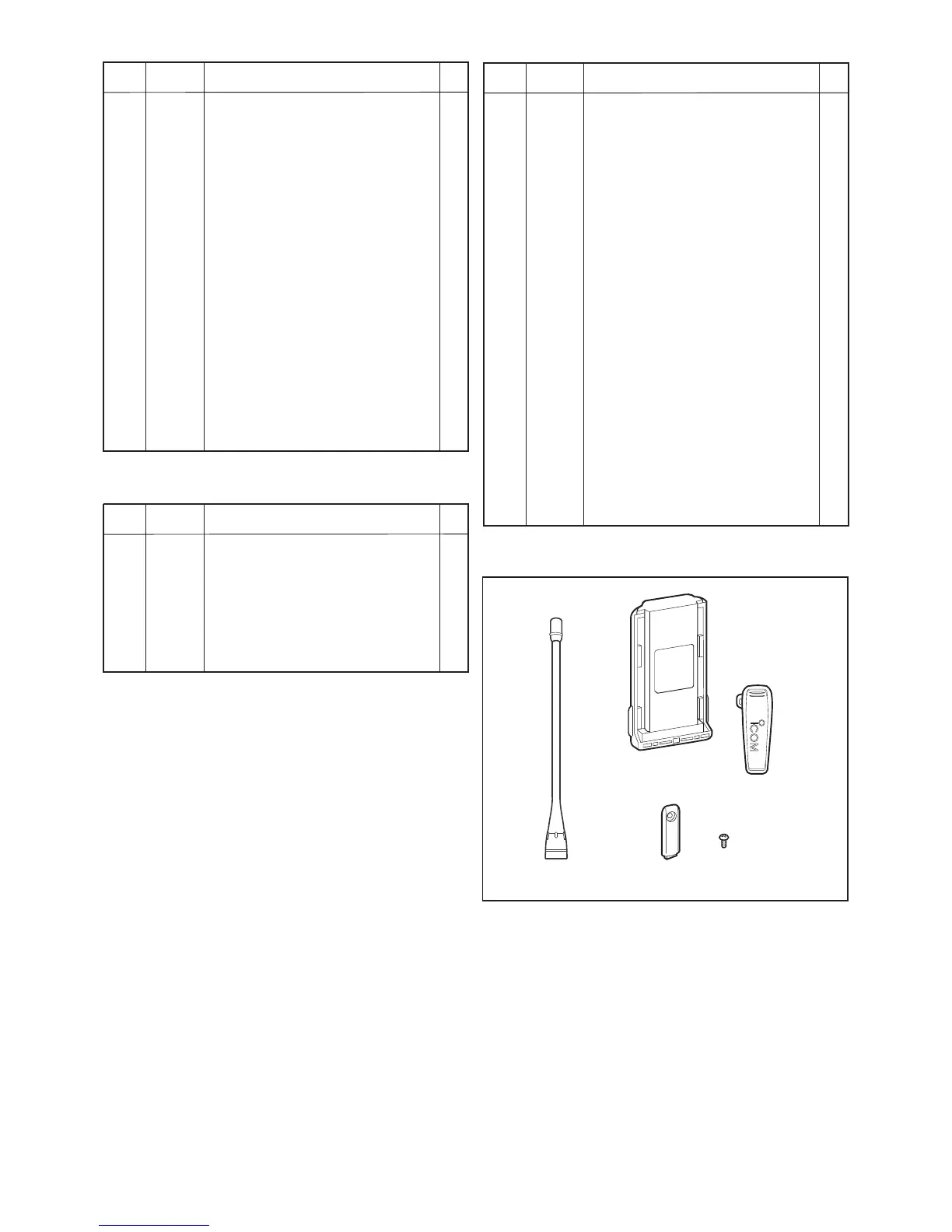

[ACCESSORIES]
REF ORDER
DESCRIPTION QTY.
NO. NO.
EP1 (Optional) FA-SC57U-1 <EIK> [1] 1
(Optional) FA-SC57U-1 <EIK> [2] 1
(Optional) FA-SC57U-1 <EIK> [3] 1
(Optional) FA-SC57U-1 <EIK> [4] 1
(Optional) FA-SC57U-1 <EIK> [5] 1
(Optional) FA-SC57U-1 <EIK> [6] 1
(Optional) FA-SC57U-1 <EIK> [7] 1
(Optional) FA-SC25U-1 <EIK> [8] 1
(Optional) FA-SC57U-1 <EIK> [9] 1
(Optional) FA-SC57U-1 <EIK> [10] 1
(Optional) FA-SC57U-1 <EIK> [11] 1
(Optional) FA-SC57U-1 <EIK> [12] 1
(Optional) FA-SC57U-1 <EIK> [13] 1
(Optional) FA-SC57U-1 <EIK> [14] 1
(Optional) FA-SC57U-1 <EIK> [15] 1
(Optional) FA-SC57U-1 <EIK> [16] 1
(Optional) FA-SC57U-1 <EIK> [17] 1
(Optional) FA-SC57U-1 <EIK> [18] 1
(Optional) FA-SC57U-1 <EIK> [19] 1
(Optional) FA-SC72U-1 <EIK> [20] 1
(Optional) FA-SC72U-1 <EIK> [21] 1
(Optional) FA-SC72U-1 <EIK> [22] 1
(Optional) FA-SC72U-1 <EIK> [23] 1
(Optional) FA-SC72U-1 <EIK> [24] 1
(Optional) FA-SC72U-1 <EIK> [25] 1
(Optional) FA-SC72U-1 <EIK> [26] 1
(Optional) FA-SC72U-1 <EIK> [27] 1
(Optional) FA-SC72U-1 <EIK> [28] 1
(Optional) FA-SC03U <EIK> [29] 1
(Optional) FA-SC03U <EIK> [30] 1
(Optional) FA-SC03U <EIK> [31] 1
(Optional) FA-SC03U <EIK> [32] 1
(Optional) FA-SC03U <EIK> [33] 1
(Optional) FA-SC03U <EIK> [34] 1
EP2 (Optional) BP-232WP (TWS) <TOMEN> 1
MP1 (Optional) MB-94R (2734CLIPPLATE) 1
MP2 8210024790 3062 SIDE PANEL 1
MP3 8810010771 TRUSS M4X5 SUS SSBC 1
7 - 4
EP1
EP2
MP1
MP2
MP3
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
[VR UNIT]
[JACK UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
J501* 6510027900 IMSA-9631S-10Y933 1
S501 2250000800 TP70TF5164S-17.6F-3401 1
MP501* 8510020560 OG-603060 [1] 1
8510020560 OG-603060 [2] 1
8510020560 OG-603060 [4] 1
8510020560 OG-603060 [5] 1
8510020560 OG-603060 [6] 1
8510020560 OG-603060 [7] 1
8510020560 OG-603060 [8] 1
8510020560 OG-603060 [9] 1
8510020560 OG-603060 [10] 1
8510020560 OG-603060 [12] 1
8510020560 OG-603060 [13] 1
8510020560 OG-603060 [14] 1
8510020560 OG-603060 [15] 1
8510020560 OG-603060 [20] 1
8510020560 OG-603060 [21] 1
8510020560 OG-603060 [22] 1
8510020560 OG-603060 [23] 1
8510020560 OG-603060 [24] 1
8510020560 OG-603060 [25] 1
8510020560 OG-603060 [26] 1
8510020560 OG-603060 [27] 1
8510020560 OG-603060 [28] 1
8510020560 OG-603060 [29] 1
8510020560 OG-603060 [30] 1
8510020560 OG-603060 [31] 1
8510020560 OG-603060 [32] 1
8510020560 OG-603060 [33] 1
8510020560 OG-603060 [34] 1
J801* 6510028740 14FLH-SM1-TB (LF) (SN) 1
J802* 6510021901 BM02B-ASRS-TF (LF) (SN) 1
MP802 8930069960 2893 EARTH SPRING Y866 [20] 1
8930069960 2893 EARTH SPRING Y866 [21] 1
8930069960 2893 EARTH SPRING Y866 [22] 1
8930069960 2893 EARTH SPRING Y866 [23] 1
8930069960 2893 EARTH SPRING Y866 [24] 1
8930069960 2893 EARTH SPRING Y866 [25] 1
8930069960 2893 EARTH SPRING Y866 [26] 1
8930069960 2893 EARTH SPRING Y866 [27] 1
8930069960 2893 EARTH SPRING Y866 [28] 1
