3 - 1
SECTION 3
DISASSEMBLY INSTRUCTION
FLAT
CABLE
BOTTOM COVER
FRONT PANEL
SPEAKER
CABLE
MAIN UNIT
FILTER
CASE
EARTH
SPRING
UNSOLDER
Solder
remover
UNSOLDER
Solder
remover
MAIN UNIT
MAIN UNIT

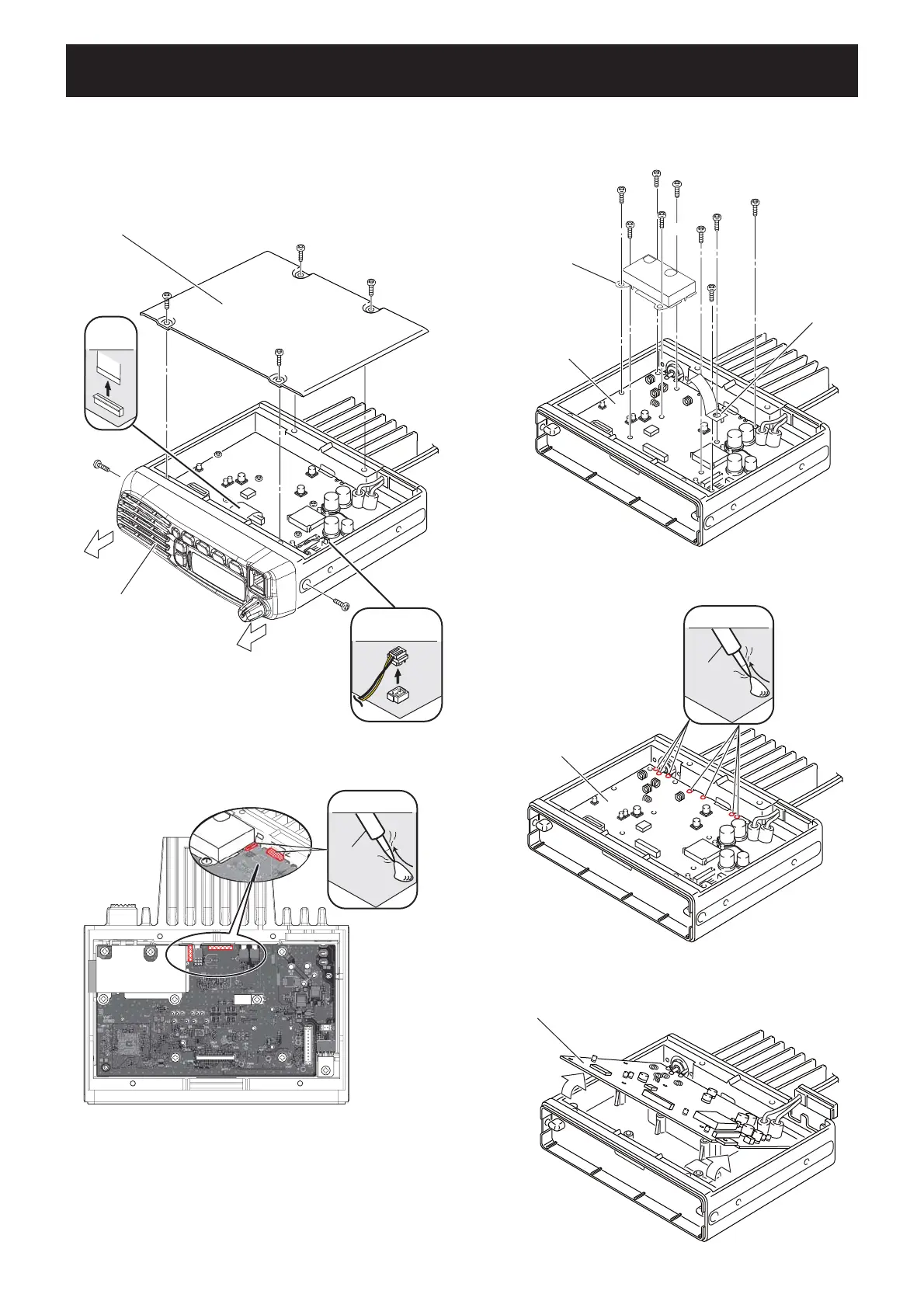

1) Unscrew 4 screws from the bottom cover, and remove the
bottom cover.
2) Disconnect the fl at cable and speaker cable.
3) Unscrew 2 screws from the both sides, and remove the
front panel in the direction of the arrow.
5) Unscrew 9 screws and remove the filter case and the
earth spring from the MAIN UNIT.
6) Unsolder total of 7 points; 3 points at the antenna
connector, 4 points at the PA module.
7) Take off the MAIN UNIT from the CHASSIS.
4) Unsolder 2 points.
To Next Page
