VHF AND UHF TRANSCEIVERS
09ES004D* © 2009–2013 Icom Inc.

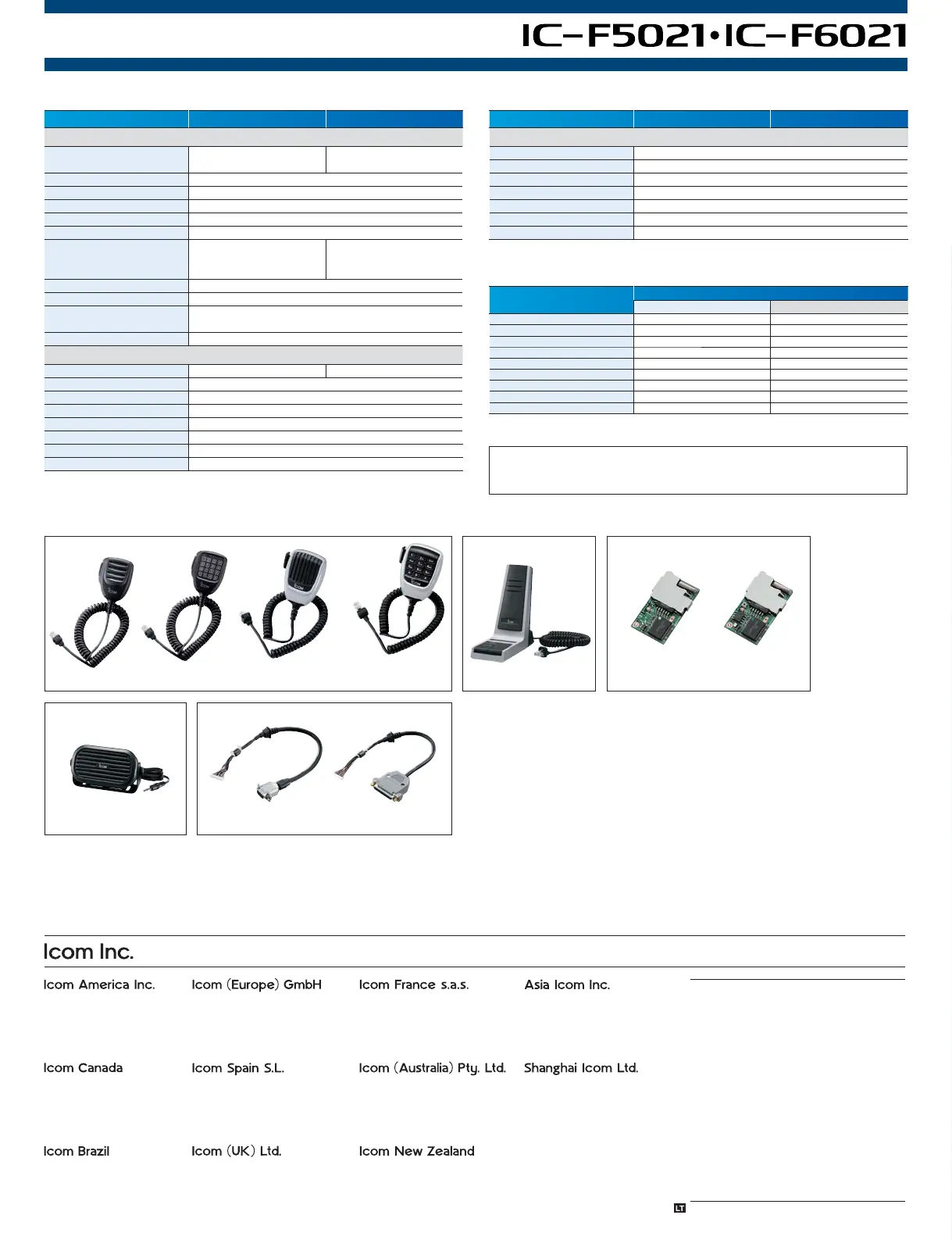

SPECIFICATIONS
Supplied Accessories
• Hand microphone (HM-152) • DC power cable • Mounting bracket kit
• Microphone hanger • Key assign stickers
IC-F5021 IC-F6021
GENERAL
Frequency coverage 136–174 MHz
400–470 MHz
450–512 MHz
Number of channels Max. 128 Ch/ 8 zones
Type of emission 16K0F3E*, 11K0F3E
Channel spacing 12.5/25, 15/30 kHz*
PLL channel step 2.5/3.125 kHz
Power supply requirement 13.6 V DC
Current drain
(approx.)
Tx 50 W/45 W
Rx Max. audio/Standby
10 A
0.7 A/250 mA
11 A
0.7 A/250 mA
Antenna impedance
50 Ω (SO-239)
Operating temperature range
–30 °C to +60 °C
; –22 ˚F to +140 ˚F
Dimensions (W × H × D)
(Projections not included)
150 × 40 × 167.5 mm; 5.9 × 1.6 × 6.6 in
Weight
(approx.) 1.1 kg; 2.4 lb
TRANSMITTER
Output power (at 13.6 V DC) 50 W, 25 W, 5 W (Hi, L2, L1)
45 W, 25 W, 4.5 W (Hi, L2, L1)
Max. frequency deviation ±5.0 kHz/±2.5 kHz (Wide/Narrow)
Frequency stability ±2.5 ppm
Spurious emissions 70 dB
typ.
FM Hum and noise 46 dB/40 dB typ. (Wide/Narrow)
Audio harmonic distortion 3% typ. (AF 1 KHz, 40% deviation)
Modulation limiting 70–100% of Max. deviation
Ext. microphone impedance
600 Ω (8-pin modular)
* 25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions. Ask your dealer if
you need 25kHz bandwidth.
IC-F5021 IC-F6021
RECEIVER
Sensitivity
(at 12 dB SINAD) 0.25 μV typ.
Adjacent channel selectivity
75 dB/65 dB typ. (Wide/Narrow)
Spurious response
80 dB typ.
Intermodulation 75 dB typ.
Hum and noise 45/40 dB typ. (Wide/Narrow)
Audio output power 4 W typ. (at 5% distortion, 4 Ω load)
Ext. speaker connector
2-conductor 3.5 (d) mm (
1
⁄8ʺ)/4 Ω
Measurements made in accordance with TIA-603.
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
Standard
MIL 810 F
Method Procedure
Low Pressure 500.4 I, II
High Temperature 501.4 I, II
Low Temperature 502.4 I, II
Temperature Shock 503.4 I
Solar Radiation 505.4 I
Humidity 507.4 –
Settling Dust 510.4 III
Vibration 514.5 I
Shock 516.5 I, IV
Also meets equivalent MIL-STD-810-C, -D and -E.
OPTIONS
VOICE SCRAMBLER UNITS
Some options may not be available in some countries. Please ask your dealer for details.
EXTERNAL SPEAKERS
DESKTOP MICROPHONE
ACC CABLES
HAND MICROPHONES
SP-35: 2 m cable
SP-35L: 6 m cable
UT-109R VOICE
SCRAMBLER UNIT
Non-rolling type
UT-110R VOICE
SCRAMBLER UNIT
Rolling type
OPC-2078
25-pin type
OPC-1939
15-pin type
HM-148T
Heavy duty microphone
with DTMF keypad
HM-152T
DTMF microphoneHM-152 SM-26
HM-148G
Heavy duty microphone
