6 - 2
M
ADJUSTMENT FREQUENCIES

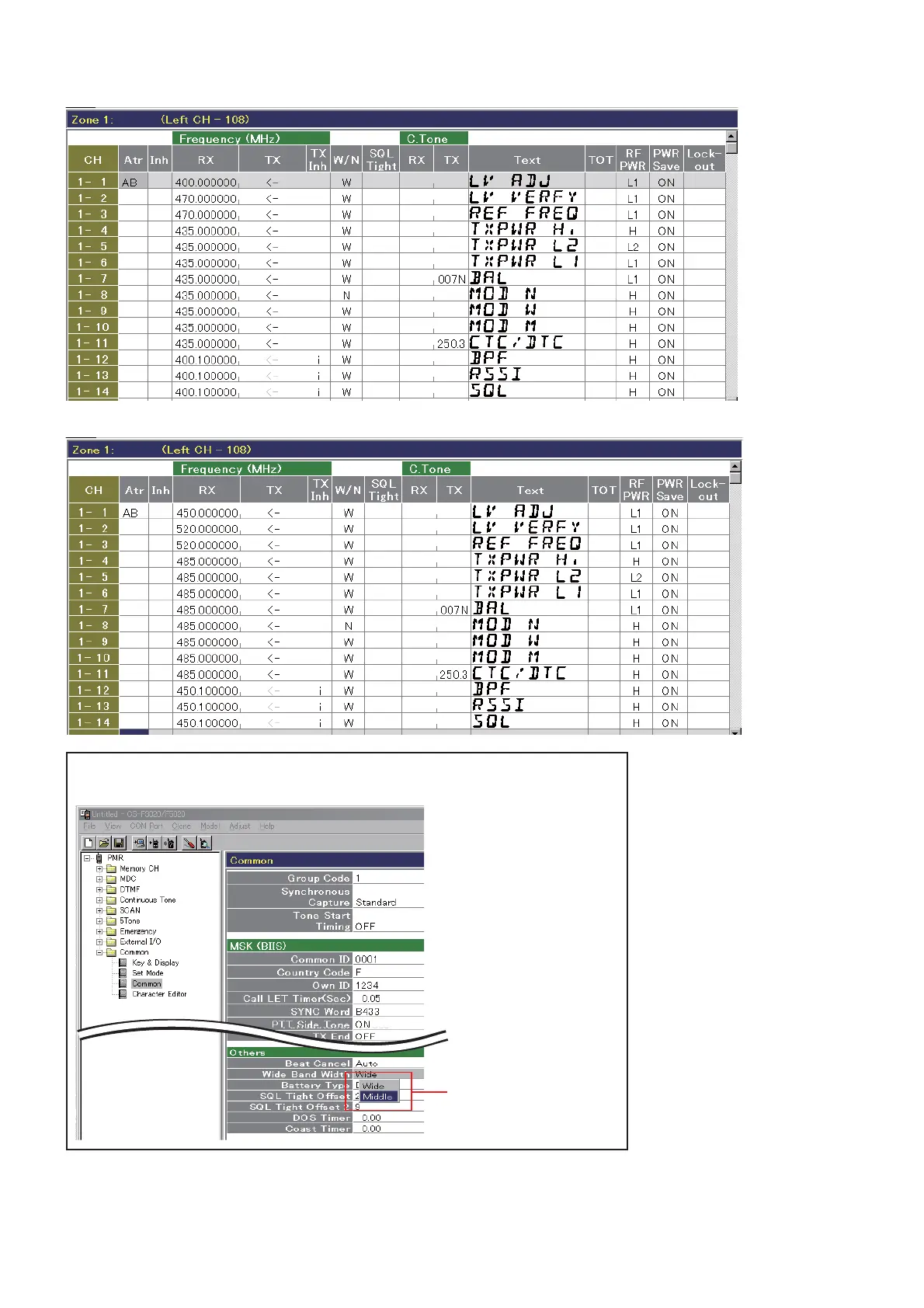

Before starting adjustment, clone adjustment frequencies and settings into the transceiver as below.
• For [Low band] version (400–470 MHz)
• For [High band] version (450–512/520 MHz)
NOTE: FOR [F6022], when adjust “Deviation,” “Modulation Balance,” “RX SENSITIVITY”
and “S-meter” in the middle mode, change the bandwidth to “Middle” as below.
To Next Page
