Icom IC-F6021 - Internal Component Views; Front Unit PCB Layout

2 - 1
SECTION 2
.
INSIDE VIEWS

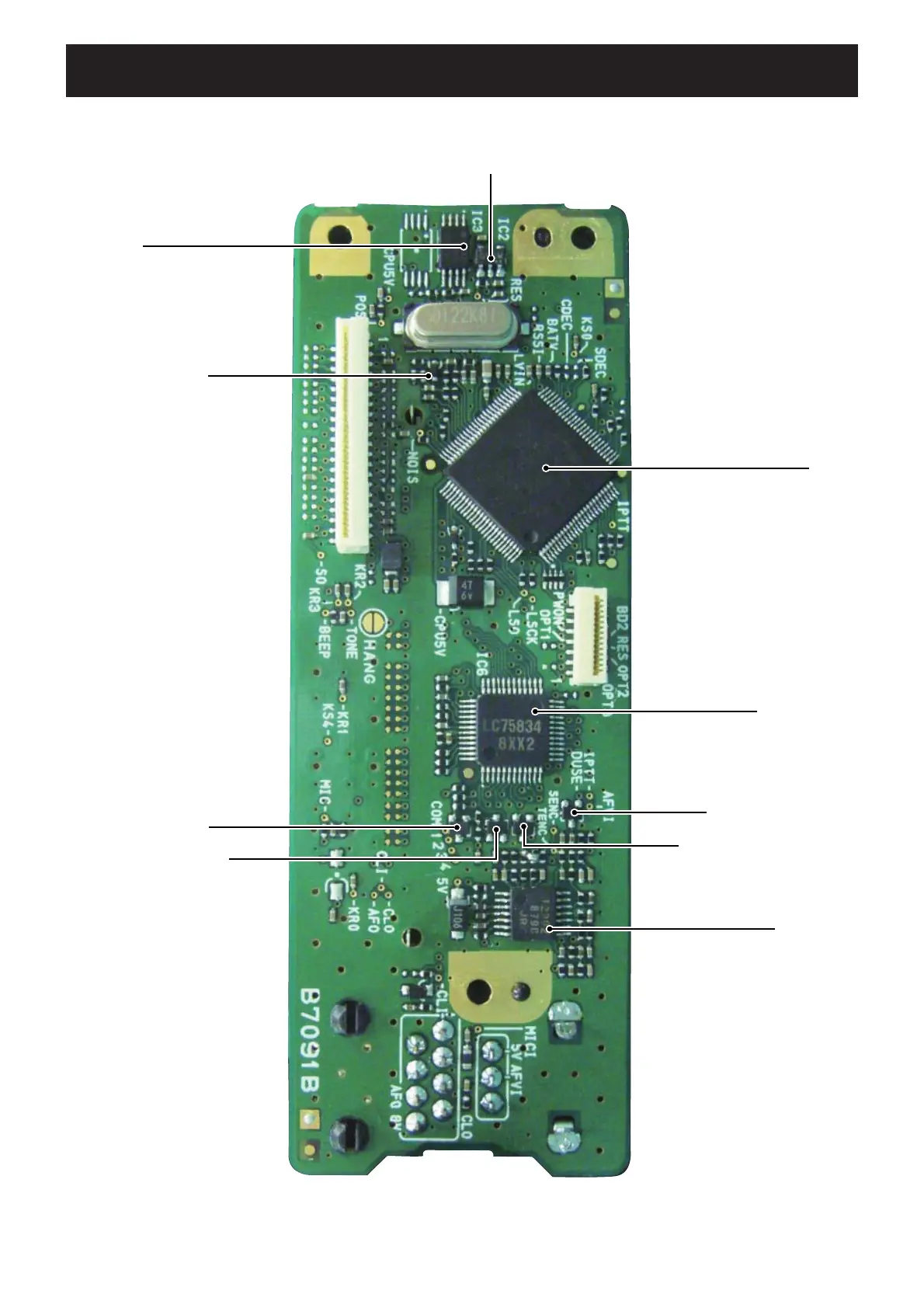

• FRONT UNIT
CPU
(IC1)
LCD DRIVER
(IC6)
TONE LPF
(IC5)
TONE FILTER SWITCH
(Q3)
EEPROM
(IC3)
CLOCK FREQUENCY
SHIFT DIODE
(D6)
BACKLIGHT CONTROLLER
(Q5)
DIMMER CONTROLLER
(Q2)
BACKLIGHT DRIVER
(Q1)
RESET IC
(IC2)
