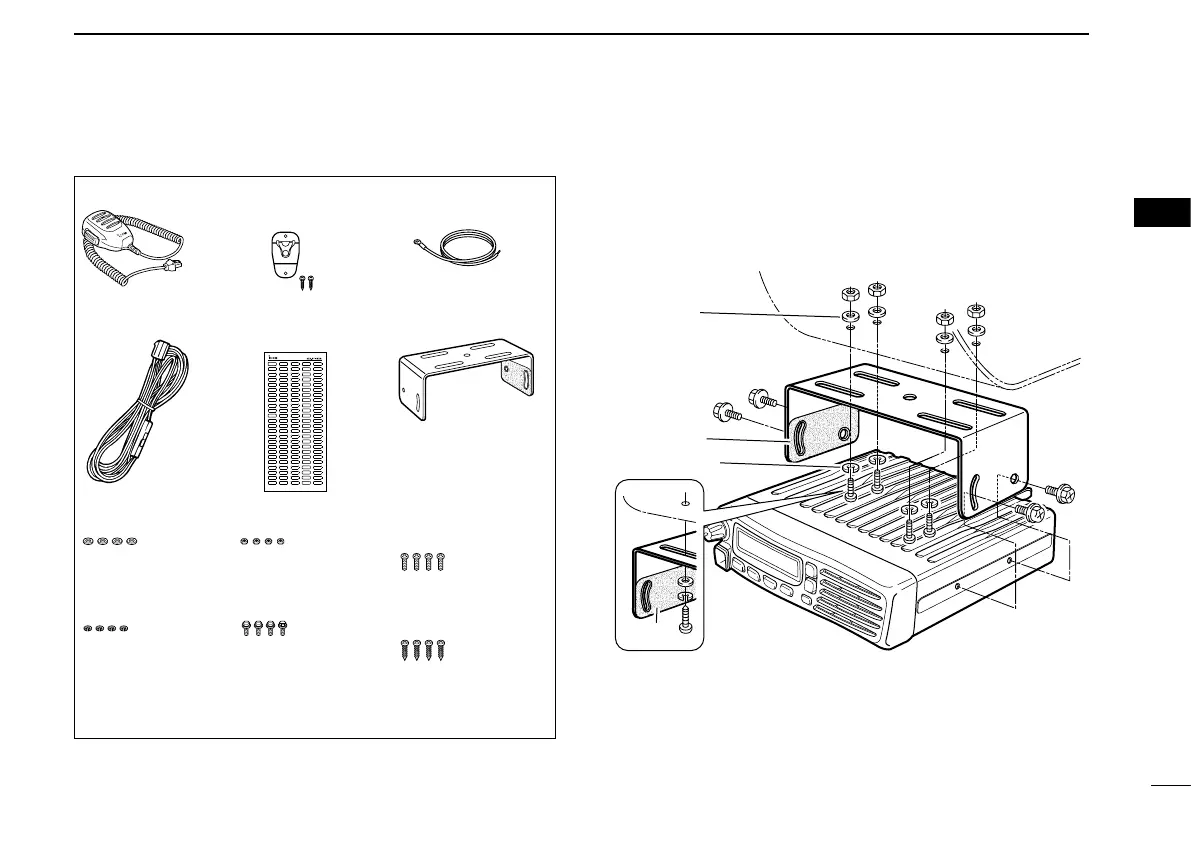

■ Supplied Accessories ■ Mounting the transceiver
The universal mounting bracket supplied with your trans-
ceiver allows overhead mounting.
• Mount the transceiver securely with the 4 supplied screws
to a thick surface which can support more than 1.5 kg
(3.3 lb).
Flat washer
Felt*
Spring washer
When using
self-tapping screws
Felt*
*Felts reduce the vibration effects.
CONNECTION AND MAINTENANCE
3
1
2
16
15
14
13
12
11
10
9
8
7
6
5
4
15
3
Microphone
Microphone hanger
and screw set
Microphone
hanger cable
DC power cable
Flat washers
Spring washers
Bracket bolts
Mounting screws
(M5×12)
Self-tapping screws
(M5×20)
Nuts
Function name
stickers*
Used for labelling the programmable function
keys according to their assinged functions.
*
Mounting bracket
