Icom IC-F621 Service Manual

F1 5210000120 Fuse FGB 15A [25W] 2
5210000080 Fuse FGB 20A [45W] 2
MC1
Optional product Microphone HM-100N 1
W1
Optional product Cable OPC-345 [25W] 1
Optional product Cable OPC-1132 [45W] 1
W2 8930000730 Cable OPC-049 1
MP1 8010019260 2633 mobil bracket 1
MP3 8820000530 Flange volt M4 × 8 NI 4
MP4 8810000470 Screw PH M5 × 12 (+–) 4
MP5 8810005840 Screw PH A M5 × 20 4
MP6 8850000150 Flat washer M5 NI BS 4
MP7 8850000390 Springe washer M5 4
MP8 8830000120 Nut M5 4
MP9 6910004210 731 mic hanger set 1
MP10 8310057570 Label 1705 LCD seal (I) [CONV], [BIIS] 1
8310057150 Label 1705 LCD seal (H) [LTR] 1
8310054140 Label 1705 LCD seal (E) [MPT] 1
J4 6450000140 Connector HSJ0807-01-010 1
W2 8900004540 Cable OPC-453 1
EP5
Optional product UT-108 [LTR] only 1
MP1 8930045070 2055 M-plate 1
MP2 8510011111 1922 VCO case-1 1
MP3 8510011180 1923 VCO cover 1
MP4 8510011460 2055 filter case 1
MP5 8510011610 2055 filter cover (A) 1
MP6 8930057900 2526 module holder assembly 1
MP8 8930045390 Sponge (FL) 1
MP11 8510014220 2055 SP-A plate [EUR] only 1
MP12 8930056510 2055 shield plate 1
MP13 8510005070 599 sheild plate 1
MP14 8930046150 Rubber sheet (AK)-1 1
MP15 8930057730 Shield sponge (J) 1
MP16 8930057730 Shield sponge (J) 1
MP17 8930057830 Shield sponge (L) 1
MP19 8930046771 Thermally sheet (G)-1 [45W] only 1
MP20 8930058610 Insulate plate (HD) 1
J1 6510004880 Connector MR-DS-E 01 1
SP1 2510001030 Speaker VS-57-0837A 1
WS1 8600036860 Cable FX2527 P01CH 1
MP1 8010018880 2526 chassis 1
MP2 8010018902 2055 cover (A)-2 1
MP3 8210018571 2526 front panel-1 1
MP4 8930057090 2526 front key 1
MP5 8610011180 Knob N292 1
MP6 8610007420 Knob spring 1
MP7 8930044761 2055 SP net-1 1
MP8 8930044100 2055 SP plate 1
MP9 8930027480 1126 TR-A clip 1
MP11 8810008660 Screw PH BT M3 × 8 NI-ZU 15
MP12 8810008760 Screw PH BT M2 × 8 NI-ZU 4
MP13 8810009990 Screw PH BT M3 × 8 ZK 6
MP14 8930057890 Non-woven sheet (CF) 1
MP15 8930057940 Shield sponge (N) [EUR] only 2
MP17 8930058990 Shield sponge (V) [EUR] only 1

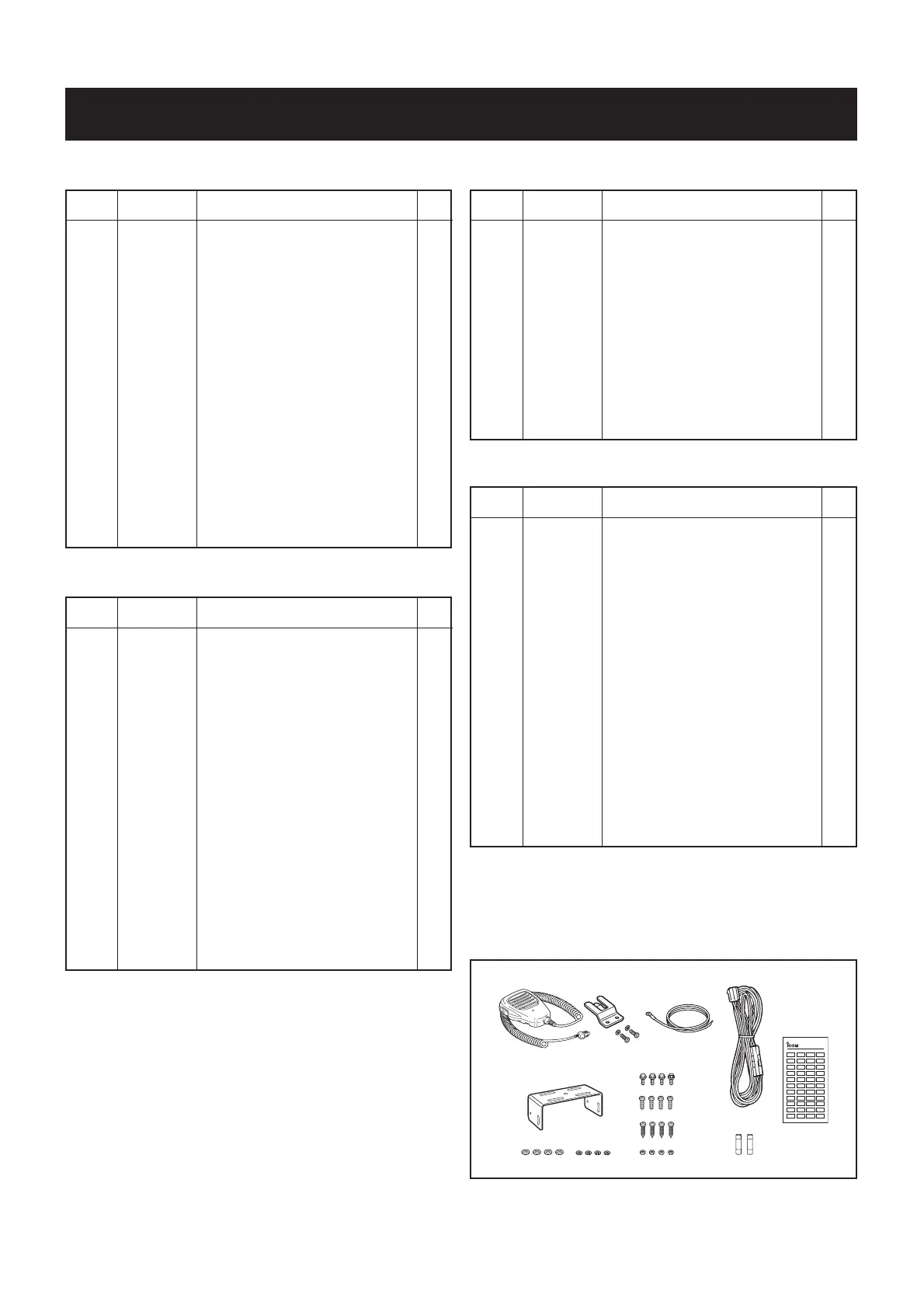

SECTION 7 MECHANICAL PARTS
7 - 1
[CHASSIS PARTS]
[ACCESSORY PARTS]
[FRONT UNIT]
R12 7210003020 Variable resistor EVU-F2KFK1 1
J1 6450002210 Connector 3017-8821 1
DS12 5030002780 LCD L1-0483TAT-1 1
W1 8900010950 Cable OPC-1126 1
EP2 8930057820 LCD contact SRCN-2526-SP-N-W 1
MP1 8210018630 2526 reflector 1
MP2 8930057150 2526 LCD holder 1
MP3 8930057140 2526 earth plate 2
MP4 8930057650 2526 LCD filter 1
[MAIN UNIT]
Screw abbreviations A, BT: Self-tapping
PH: Pan head ZK: Black
BS: Brass NI: Nickel
NI-ZU: Nickel-Zinc
MC1
MP1
MP9
W2
W1
MP3
MP4
MP5
MP6 MP7 MP8 F1
IC
O
M
MP10
LCD-STICKER
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
