2 - 2

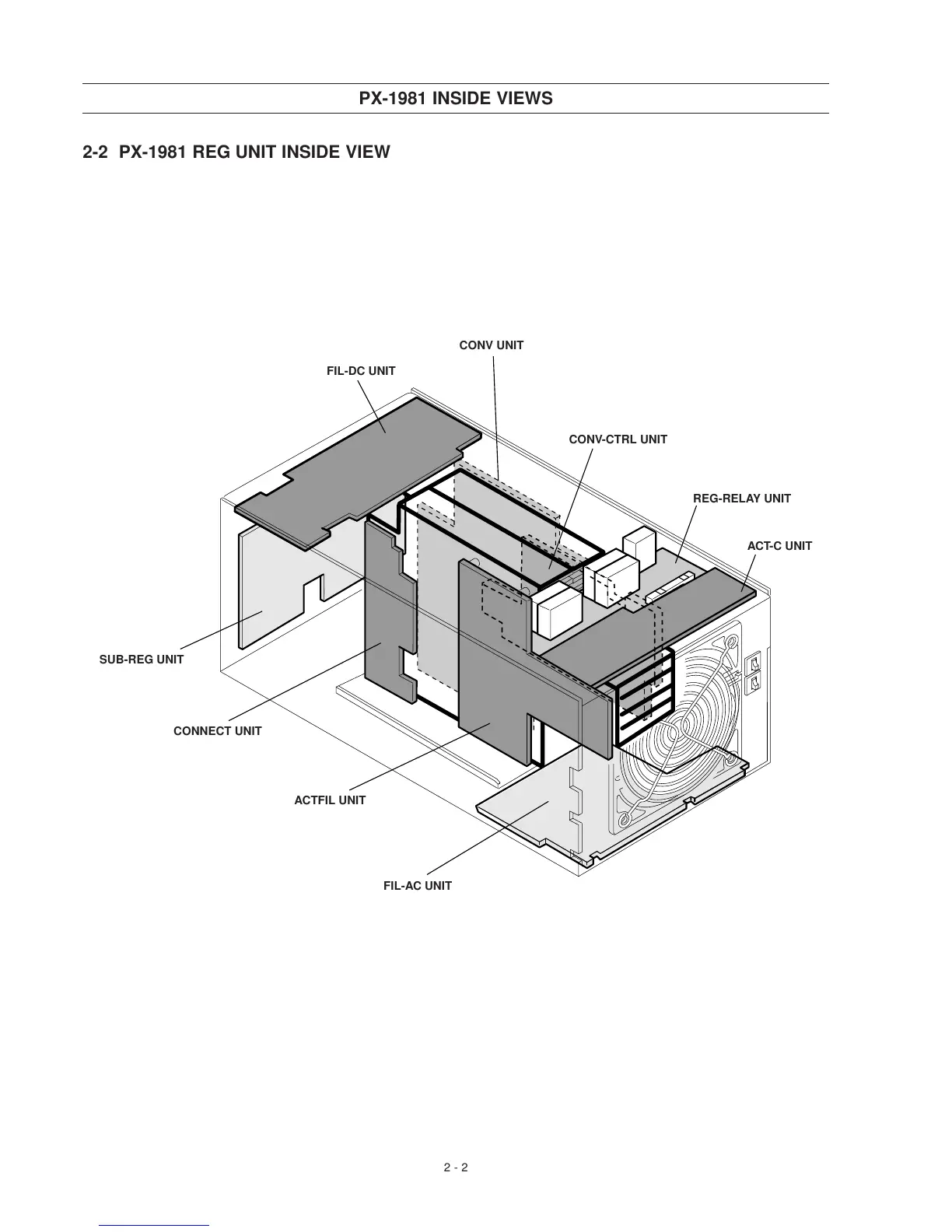

PX-1981 INSIDE VIEWS
2-2 PX-1981 REG UNIT INSIDE VIEW
CONNECT UNIT
SUB-REG UNIT
ACTFIL UNIT
FIL-AC UNIT
ACT-C UNIT
CONV UNIT
FIL-DC UNIT
CONV-CTRL UNIT
REG-RELAY UNIT
