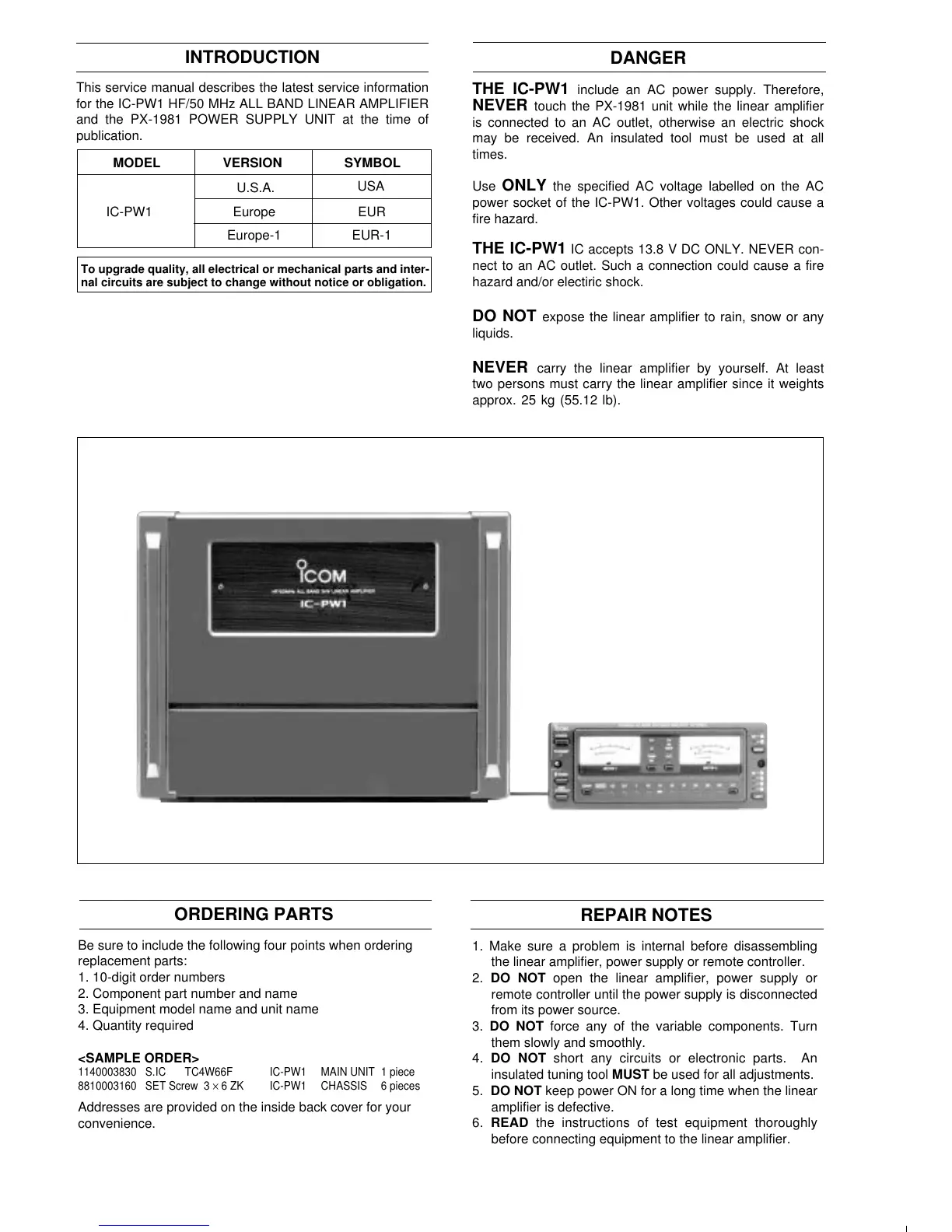

INTRODUCTION
This service manual describes the latest service information
for the IC-PW1 HF/50 MHz ALL BAND LINEAR AMPLIFIER
and the PX-1981 POWER SUPPLY UNIT at the time of
publication.
To upgrade quality, all electrical or mechanical parts and inter-
nal circuits are subject to change without notice or obligation.
DANGER
THE IC-PW1 include an AC power supply. Therefore,
NEVER touch the PX-1981 unit while the linear amplifier
is connected to an AC outlet, otherwise an electric shock
may be received. An insulated tool must be used at all
times.
Use
ONLY the specified AC voltage labelled on the AC
power socket of the IC-PW1. Other voltages could cause a
fire hazard.
THE IC-PW1 IC accepts 13.8 V DC ONLY. NEVER con-
nect to an AC outlet. Such a connection could cause a fire
hazard and/or electiric shock.
DO NOT expose the linear amplifier to rain, snow or any
liquids.
NEVER carry the linear amplifier by yourself. At least
two persons must carry the linear amplifier since it weights
approx. 25 kg (55.12 lb).
ORDERING PARTS
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1140003830 S.IC TC4W66F IC-PW1 MAIN UNIT 1 piece
8810003160 SET Screw 3 × 6 ZK IC-PW1 CHASSIS 6 pieces
Addresses are provided on the inside back cover for your
convenience.
REPAIR NOTES
MODEL VERSION SYMBOL
Europe
Europe-1
IC-PW1
USA
EUR
EUR-1
1. Make sure a problem is internal before disassembling
the linear amplifier, power supply or remote controller.
2. DO NOT open the linear amplifier, power supply or
remote controller until the power supply is disconnected
from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An
insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the linear
amplifier is defective.
6. READ the instructions of test equipment thoroughly
before connecting equipment to the linear amplifier.
U.S.A.
