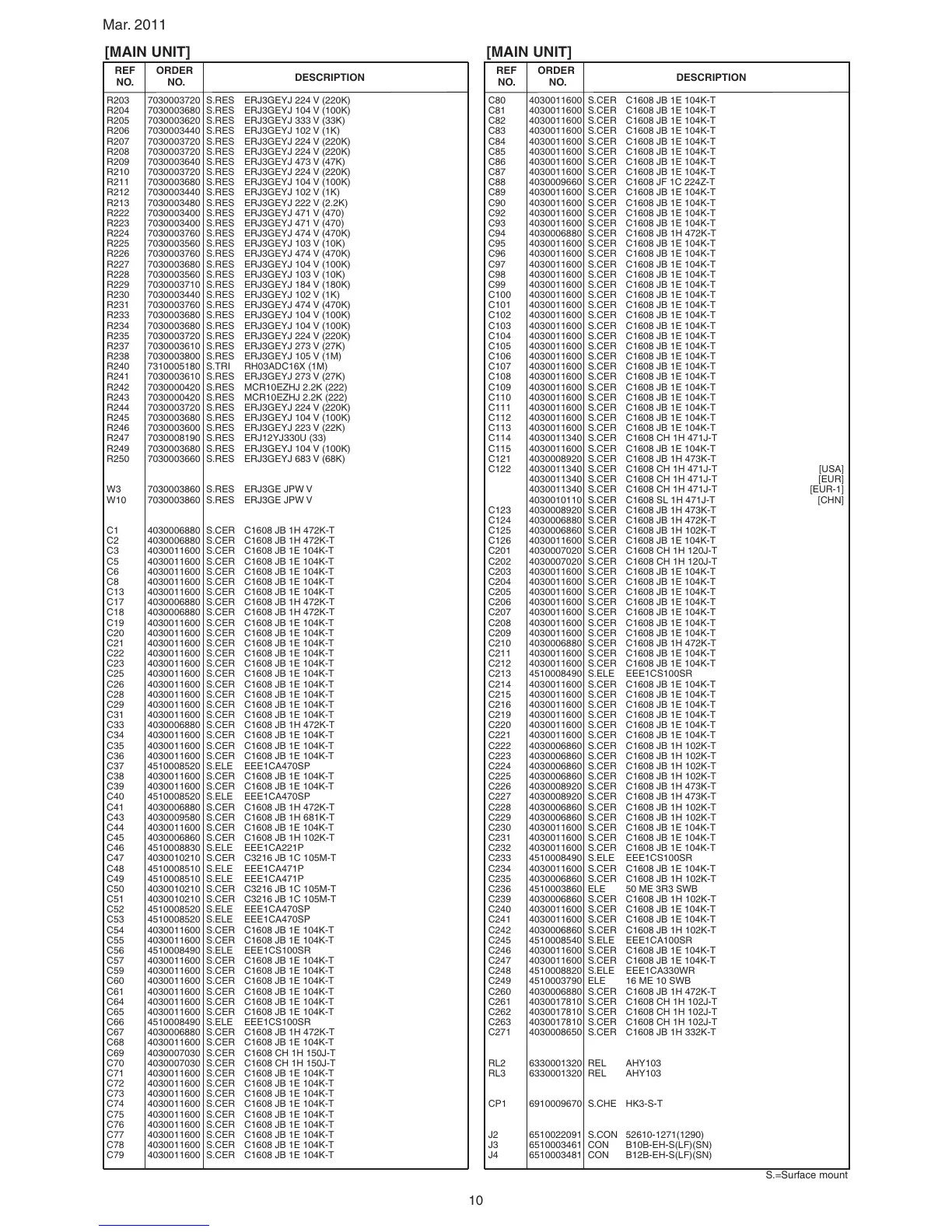

Icom IC-PW1 Service Manual Addendum

Mar. 2011
10
[MAIN UNIT]
REF ORDER
DESCRIPTION
NO. NO.
R203 7030003720 S.RES ERJ3GEYJ 224 V (220K)
R204 7030003680 S.RES ERJ3GEYJ 104 V (100K)
R205 7030003620 S.RES ERJ3GEYJ 333 V (33K)
R206 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R207 7030003720 S.RES ERJ3GEYJ 224 V (220K)
R208 7030003720 S.RES ERJ3GEYJ 224 V (220K)
R209 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R210 7030003720 S.RES ERJ3GEYJ 224 V (220K)
R211 7030003680 S.RES ERJ3GEYJ 104 V (100K)
R212 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R213 7030003480 S.RES ERJ3GEYJ 222 V (2.2K)
R222 7030003400 S.RES ERJ3GEYJ 471 V (470)
R223 7030003400 S.RES ERJ3GEYJ 471 V (470)
R224 7030003760 S.RES ERJ3GEYJ 474 V (470K)
R225 7030003560 S.RES ERJ3GEYJ 103 V (10K)
R226 7030003760 S.RES ERJ3GEYJ 474 V (470K)
R227 7030003680 S.RES ERJ3GEYJ 104 V (100K)
R228 7030003560 S.RES ERJ3GEYJ 103 V (10K)
R229 7030003710 S.RES ERJ3GEYJ 184 V (180K)
R230 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R231 7030003760 S.RES ERJ3GEYJ 474 V (470K)
R233 7030003680 S.RES ERJ3GEYJ 104 V (100K)
R234 7030003680 S.RES ERJ3GEYJ 104 V (100K)
R235 7030003720 S.RES ERJ3GEYJ 224 V (220K)
R237 7030003610 S.RES ERJ3GEYJ 273 V (27K)
R238 7030003800 S.RES ERJ3GEYJ 105 V (1M)
R240 7310005180 S.TRI RH03ADC16X (1M)
R241 7030003610 S.RES ERJ3GEYJ 273 V (27K)
R242 7030000420 S.RES MCR10EZHJ 2.2K (222)
R243 7030000420 S.RES MCR10EZHJ 2.2K (222)
R244 7030003720 S.RES ERJ3GEYJ 224 V (220K)
R245 7030003680 S.RES ERJ3GEYJ 104 V (100K)
R246 7030003600 S.RES ERJ3GEYJ 223 V (22K)
R247 7030008190 S.RES ERJ12YJ330U (33)
R249 7030003680 S.RES ERJ3GEYJ 104 V (100K)
R250 7030003660 S.RES ERJ3GEYJ 683 V (68K)
W3 7030003860 S.RES ERJ3GE JPW V
W10 7030003860 S.RES ERJ3GE JPW V
C1 4030006880 S.CER C1608 JB 1H 472K-T
C2 4030006880 S.CER C1608 JB 1H 472K-T
C3 4030011600 S.CER C1608 JB 1E 104K-T
C5 4030011600 S.CER C1608 JB 1E 104K-T
C6 4030011600 S.CER C1608 JB 1E 104K-T
C8 4030011600 S.CER C1608 JB 1E 104K-T
C13 4030011600 S.CER C1608 JB 1E 104K-T
C17 4030006880 S.CER C1608 JB 1H 472K-T
C18 4030006880 S.CER C1608 JB 1H 472K-T
C19 4030011600 S.CER C1608 JB 1E 104K-T
C20 4030011600 S.CER C1608 JB 1E 104K-T
C21 4030011600 S.CER C1608 JB 1E 104K-T
C22 4030011600 S.CER C1608 JB 1E 104K-T
C23 4030011600 S.CER C1608 JB 1E 104K-T
C25 4030011600 S.CER C1608 JB 1E 104K-T
C26 4030011600 S.CER C1608 JB 1E 104K-T
C28 4030011600 S.CER C1608 JB 1E 104K-T
C29 4030011600 S.CER C1608 JB 1E 104K-T
C31 4030011600 S.CER C1608 JB 1E 104K-T
C33 4030006880 S.CER C1608 JB 1H 472K-T
C34 4030011600 S.CER C1608 JB 1E 104K-T
C35 4030011600 S.CER C1608 JB 1E 104K-T
C36 4030011600 S.CER C1608 JB 1E 104K-T
C37 4510008520 S.ELE EEE1CA470SP
C38 4030011600 S.CER C1608 JB 1E 104K-T
C39 4030011600 S.CER C1608 JB 1E 104K-T
C40 4510008520 S.ELE EEE1CA470SP
C41 4030006880 S.CER C1608 JB 1H 472K-T
C43 4030009580 S.CER C1608 JB 1H 681K-T
C44 4030011600 S.CER C1608 JB 1E 104K-T
C45 4030006860 S.CER C1608 JB 1H 102K-T
C46 4510008830 S.ELE EEE1CA221P
C47 4030010210 S.CER C3216 JB 1C 105M-T
C48 4510008510 S.ELE EEE1CA471P
C49 4510008510 S.ELE EEE1CA471P
C50 4030010210 S.CER C3216 JB 1C 105M-T
C51 4030010210 S.CER C3216 JB 1C 105M-T
C52 4510008520 S.ELE EEE1CA470SP
C53 4510008520 S.ELE EEE1CA470SP
C54 4030011600 S.CER C1608 JB 1E 104K-T
C55 4030011600 S.CER C1608 JB 1E 104K-T
C56 4510008490 S.ELE EEE1CS100SR
C57 4030011600 S.CER C1608 JB 1E 104K-T
C59 4030011600 S.CER C1608 JB 1E 104K-T
C60 4030011600 S.CER C1608 JB 1E 104K-T
C61 4030011600 S.CER C1608 JB 1E 104K-T
C64 4030011600 S.CER C1608 JB 1E 104K-T
C65 4030011600 S.CER C1608 JB 1E 104K-T
C66 4510008490 S.ELE EEE1CS100SR
C67 4030006880 S.CER C1608 JB 1H 472K-T
C68 4030011600 S.CER C1608 JB 1E 104K-T
C69 4030007030 S.CER C1608 CH 1H 150J-T
C70 4030007030 S.CER C1608 CH 1H 150J-T
C71 4030011600 S.CER C1608 JB 1E 104K-T
C72 4030011600 S.CER C1608 JB 1E 104K-T
C73 4030011600 S.CER C1608 JB 1E 104K-T
C74 4030011600 S.CER C1608 JB 1E 104K-T
C75 4030011600 S.CER C1608 JB 1E 104K-T
C76 4030011600 S.CER C1608 JB 1E 104K-T
C77 4030011600 S.CER C1608 JB 1E 104K-T
C78 4030011600 S.CER C1608 JB 1E 104K-T
C79 4030011600 S.CER C1608 JB 1E 104K-T
S.=Surface mount
[MAIN UNIT]
REF ORDER
DESCRIPTION
NO. NO.
C80 4030011600 S.CER C1608 JB 1E 104K-T
C81 4030011600 S.CER C1608 JB 1E 104K-T
C82 4030011600 S.CER C1608 JB 1E 104K-T
C83 4030011600 S.CER C1608 JB 1E 104K-T
C84 4030011600 S.CER C1608 JB 1E 104K-T
C85 4030011600 S.CER C1608 JB 1E 104K-T
C86 4030011600 S.CER C1608 JB 1E 104K-T
C87 4030011600 S.CER C1608 JB 1E 104K-T
C88 4030009660 S.CER C1608 JF 1C 224Z-T
C89 4030011600 S.CER C1608 JB 1E 104K-T
C90 4030011600 S.CER C1608 JB 1E 104K-T
C92 4030011600 S.CER C1608 JB 1E 104K-T
C93 4030011600 S.CER C1608 JB 1E 104K-T
C94 4030006880 S.CER C1608 JB 1H 472K-T
C95 4030011600 S.CER C1608 JB 1E 104K-T
C96 4030011600 S.CER C1608 JB 1E 104K-T
C97 4030011600 S.CER C1608 JB 1E 104K-T
C98 4030011600 S.CER C1608 JB 1E 104K-T
C99 4030011600 S.CER C1608 JB 1E 104K-T
C100 4030011600 S.CER C1608 JB 1E 104K-T
C101 4030011600 S.CER C1608 JB 1E 104K-T
C102 4030011600 S.CER C1608 JB 1E 104K-T
C103 4030011600 S.CER C1608 JB 1E 104K-T
C104 4030011600 S.CER C1608 JB 1E 104K-T
C105 4030011600 S.CER C1608 JB 1E 104K-T
C106 4030011600 S.CER C1608 JB 1E 104K-T
C107 4030011600 S.CER C1608 JB 1E 104K-T
C108 4030011600 S.CER C1608 JB 1E 104K-T
C109 4030011600 S.CER C1608 JB 1E 104K-T
C110 4030011600 S.CER C1608 JB 1E 104K-T
C111 4030011600 S.CER C1608 JB 1E 104K-T
C112 4030011600 S.CER C1608 JB 1E 104K-T
C113 4030011600 S.CER C1608 JB 1E 104K-T
C114 4030011340 S.CER C1608 CH 1H 471J-T
C115 4030011600 S.CER C1608 JB 1E 104K-T
C121 4030008920 S.CER C1608 JB 1H 473K-T
C122 4030011340 S.CER C1608 CH 1H 471J-T [USA]
4030011340 S.CER C1608 CH 1H 471J-T [EUR]
4030011340 S.CER C1608 CH 1H 471J-T [EUR-1]
4030010110 S.CER C1608 SL 1H 471J-T [CHN]
C123 4030008920 S.CER C1608 JB 1H 473K-T
C124 4030006880 S.CER C1608 JB 1H 472K-T
C125 4030006860 S.CER C1608 JB 1H 102K-T
C126 4030011600 S.CER C1608 JB 1E 104K-T
C201 4030007020 S.CER C1608 CH 1H 120J-T
C202 4030007020 S.CER C1608 CH 1H 120J-T
C203 4030011600 S.CER C1608 JB 1E 104K-T
C204 4030011600 S.CER C1608 JB 1E 104K-T
C205 4030011600 S.CER C1608 JB 1E 104K-T
C206 4030011600 S.CER C1608 JB 1E 104K-T
C207 4030011600 S.CER C1608 JB 1E 104K-T
C208 4030011600 S.CER C1608 JB 1E 104K-T
C209 4030011600 S.CER C1608 JB 1E 104K-T
C210 4030006880 S.CER C1608 JB 1H 472K-T
C211 4030011600 S.CER C1608 JB 1E 104K-T
C212 4030011600 S.CER C1608 JB 1E 104K-T
C213 4510008490 S.ELE EEE1CS100SR
C214 4030011600 S.CER C1608 JB 1E 104K-T
C215 4030011600 S.CER C1608 JB 1E 104K-T
C216 4030011600 S.CER C1608 JB 1E 104K-T
C219 4030011600 S.CER C1608 JB 1E 104K-T
C220 4030011600 S.CER C1608 JB 1E 104K-T
C221 4030011600 S.CER C1608 JB 1E 104K-T
C222 4030006860 S.CER C1608 JB 1H 102K-T
C223 4030006860 S.CER C1608 JB 1H 102K-T
C224 4030006860 S.CER C1608 JB 1H 102K-T
C225 4030006860 S.CER C1608 JB 1H 102K-T
C226 4030008920 S.CER C1608 JB 1H 473K-T
C227 4030008920 S.CER C1608 JB 1H 473K-T
C228 4030006860 S.CER C1608 JB 1H 102K-T
C229 4030006860 S.CER C1608 JB 1H 102K-T
C230 4030011600 S.CER C1608 JB 1E 104K-T
C231 4030011600 S.CER C1608 JB 1E 104K-T
C232 4030011600 S.CER C1608 JB 1E 104K-T
C233 4510008490 S.ELE EEE1CS100SR
C234 4030011600 S.CER C1608 JB 1E 104K-T
C235 4030006860 S.CER C1608 JB 1H 102K-T
C236 4510003860 ELE 50 ME 3R3 SWB
C239 4030006860 S.CER C1608 JB 1H 102K-T
C240 4030011600 S.CER C1608 JB 1E 104K-T
C241 4030011600 S.CER C1608 JB 1E 104K-T
C242 4030006860 S.CER C1608 JB 1H 102K-T
C245 4510008540 S.ELE EEE1CA100SR
C246 4030011600 S.CER C1608 JB 1E 104K-T
C247 4030011600 S.CER C1608 JB 1E 104K-T
C248 4510008820 S.ELE EEE1CA330WR
C249 4510003790 ELE 16 ME 10 SWB
C260 4030006880 S.CER C1608 JB 1H 472K-T
C261 4030017810 S.CER C1608 CH 1H 102J-T
C262 4030017810 S.CER C1608 CH 1H 102J-T
C263 4030017810 S.CER C1608 CH 1H 102J-T
C271 4030008650 S.CER C1608 JB 1H 332K-T
RL2 6330001320 REL AHY103
RL3 6330001320 REL AHY103
CP1 6910009670 S.CHE HK3-S-T
J2 6510022091 S.CON 52610-1271(1290)
J3 6510003461 CON B10B-EH-S(LF)(SN)
J4 6510003481 CON B12B-EH-S(LF)(SN)
