4 - 9

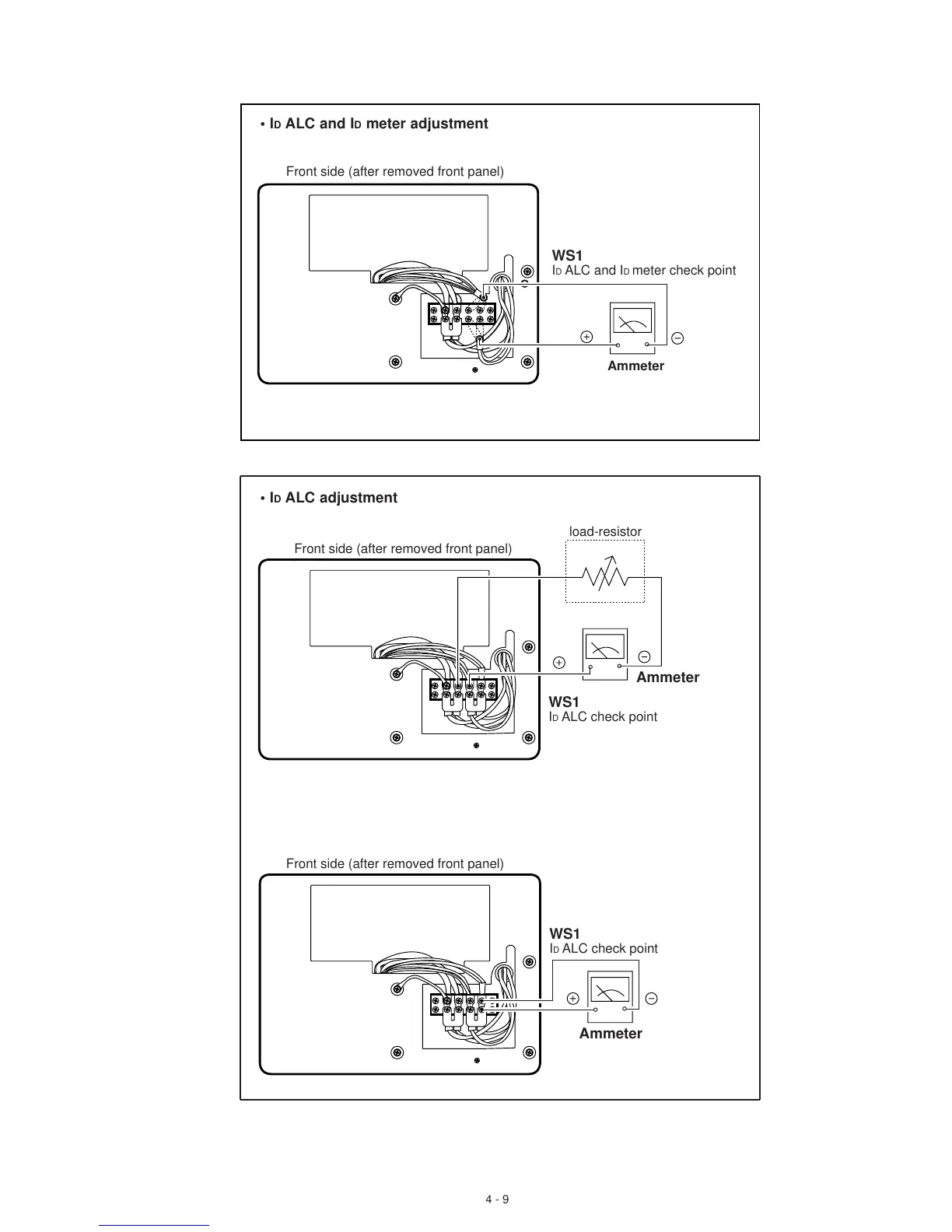

Front side (after removed front panel)
Ammeter
WS1
ID ALC and ID meter check point
Ammeter
Front side (after removed front panel)
load-resistor
WS1
ID ALC check point
Ammeter
Front side (after removed front panel)
WS1
ID ALC check point
• ID ALC and ID meter adjustment
• ID ALC adjustment
