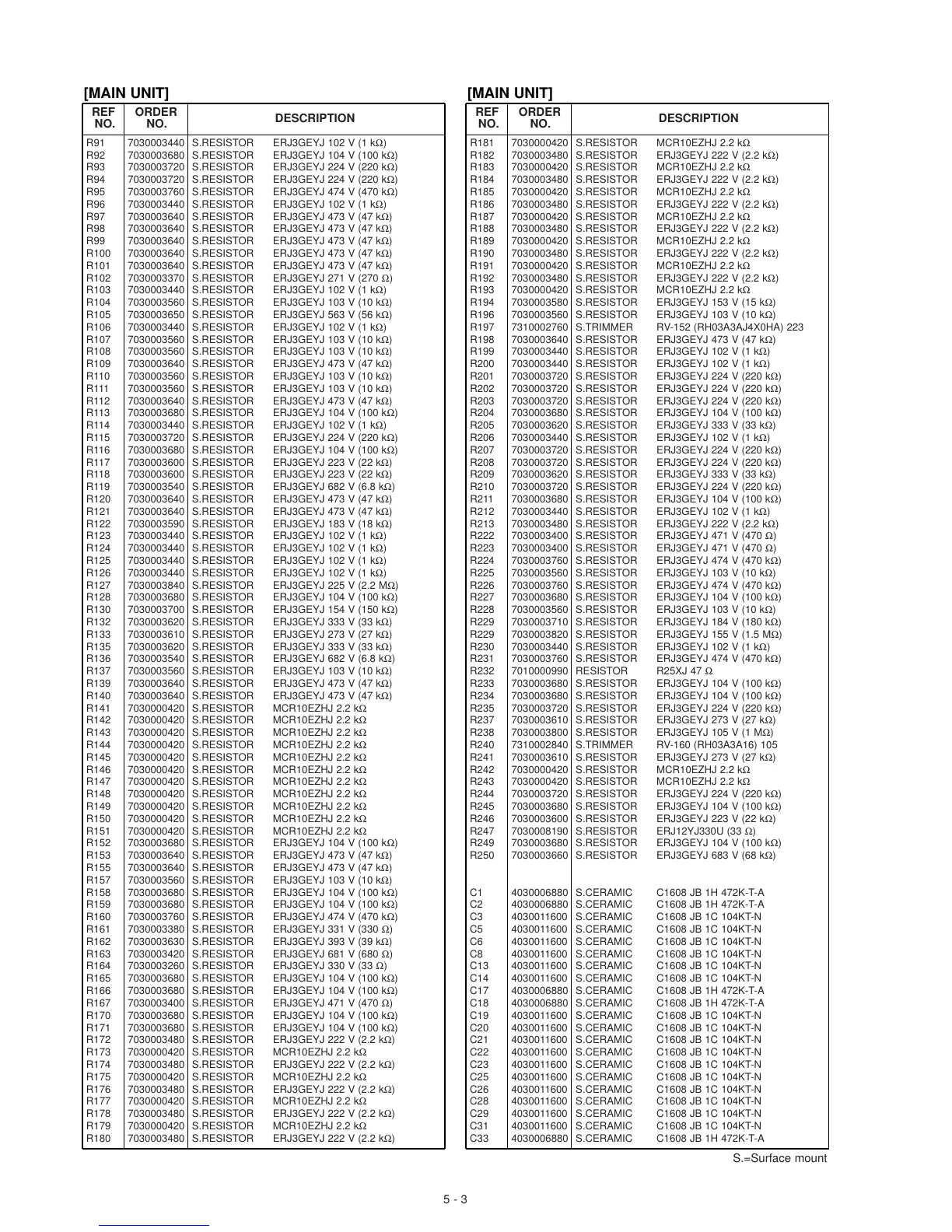

Icom IC-PW1 Service Manual Addendum

S.=Surface mount
R91 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R92 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R93 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R94 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R95 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R96 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R97 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R98 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R99 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R100 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R101 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R102 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R103 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R104 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R105 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R106 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R107 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R108 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R109 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R110 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R111 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R112 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R113 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R114 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R115 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R116 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R117 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R118 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R119 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ)
R120 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R121 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R122 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R123 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R124 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R125 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R126 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R127 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ)
R128 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R130 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R132 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R133 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R135 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R136 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ)
R137 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R139 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R140 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R141 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R142 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R143 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R144 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R145 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R146 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R147 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R148 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R149 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R150 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R151 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R152 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R153 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R155 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R157 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R158 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R159 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R160 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R161 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R162 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R163 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R164 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω)
R165 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R166 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R167 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R170 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R171 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R172 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R173 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R174 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R175 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R176 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R177 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R178 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R179 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R180 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
5 - 3
REF ORDER
DESCRIPTION
NO. NO.
[MAIN UNIT]
R181 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R182 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R183 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R184 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R185 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R186 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R187 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R188 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R189 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R190 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R191 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R192 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R193 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R194 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R196 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R197 7310002760 S.TRIMMER RV-152 (RH03A3AJ4X0HA) 223
R198 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R199 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R200 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R201 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R202 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R203 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R204 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R205 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R206 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R207 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R208 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R209 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R210 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R211 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R212 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R213 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R222 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R223 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R224 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R225 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R226 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R227 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R228 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R229 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ)
R229 7030003820 S.RESISTOR ERJ3GEYJ 155 V (1.5 MΩ)
R230 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R231 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R232 7010000990 RESISTOR R25XJ 47 Ω
R233 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R234 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R235 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R237 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R238 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R240 7310002840 S.TRIMMER RV-160 (RH03A3A16) 105
R241 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R242 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R243 7030000420 S.RESISTOR MCR10EZHJ 2.2 kΩ
R244 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R245 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R246 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R247 7030008190 S.RESISTOR ERJ12YJ330U (33 Ω)
R249 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R250 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
C1 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C2 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C3 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C5 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C6 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C8 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C13 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C14 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C17 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C18 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C19 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C20 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C21 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C22 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C23 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C25 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C26 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C28 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C29 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C31 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C33 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
REF ORDER
DESCRIPTION
NO. NO.
[MAIN UNIT]
