Icom IC-PW1 Service Manual Addendum

6 - 5
[PA UNIT]
W1 8900006990 Cable OPC-683 (N:10 L:110) 1
W2 8900007360 Cable OPC-711 (N:10 L:250) 1
W3 8900006990 Cable OPC-683 (N:10 L:110) 1
W4 8900007360 Cable OPC-711 (N:10 L:250) 1
MF1 2710000620 Fan PUDC12Z4-992 1
MF2 2710000620 Fan PUDC12Z4-992 1
MF3 2710000620 Fan PUDC12Z4-992 1
MP1 8930042520 1900 FHS angle 1
MP2 8930042510 1900 RHS angle 1
MP3 8410002123 1900 PA heat sink-3 1
MP4 8810003160 Set screw A M3 × 616
MP5 8810008490 Set screw H M2.6 × 8 NI 16
MP6 8810009620 Bind screw BT M3 × 6 ZK 4
MP7 8810009620 Bind screw BT M3 × 6 ZK 6
MP8 8810009620 Bind screw BT M3 × 6 ZK 8
MP9 8930043050 1900 Spacer angle 1
MP10 8810003160 Set screw A M3 × 64
MP11 8820000550 Cap-bolt M4 × 8 ZK 12
MP12 8810003360 Set screw C M3 × 61
MP13 8810003360 Set screw C M3 × 61
MP14 8810003360 Set screw C M3 × 61
MP15 8810003360 Set screw C M3 × 61
MP16 8810003360 Set screw C M3 × 61
MP17 8810003360 Set screw C M3 × 61
MP18 8810003360 Set screw C M3 × 61
MP19 8810003360 Set screw C M3 × 61
MP21 8930047400 1900 C-sheeet 1
MP22 8930047410 1900 D-sheet 1
WS1 8970022930 EX1900 J boad (special) (4)/PA 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[PA-1 BOARD]
J2 6510017920 Connector 1811P342 1
J5 6510003390 Connector B03B-EH-S 1
EP1 6910011330 Terminal OT-009 M3 1
EP2 6910011330 Terminal OT-009 M3 1
EP3 6910000640 Bead FSOH090RN 1
WS1 8970022531 EX1900 J boad set-1 (1)/PA-1 1
WS2 8970022540 EX1900
1.5D coaxial cable (1)/PA-1 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[PA-2 BOARD]
J2 6510017920 Connector 1811P342 1
J5 6510003390 Connector B03B-EH-S 1
EP1 6910011330 Terminal OT-009 M3 1
EP2 6910011330 Terminal OT-009 M3 1
EP3 6910000640 Bead FSOH090RN 1
WS1 8970022551 EX1900 J boad set-1 (1)/PA-2 1
WS2 8970022560 EX1900 1.
5D coaxial cable (1)/PA-2 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[PA-3 BOARD]
J2 6510017920 Connector 1811P342 1
J5 6510003390 Connector B03B-EH-S 1
EP1 6910011330 Terminal OT-009 M3 1
EP2 6910011330 Terminal OT-009 M3 1
EP3 6910000640 Bead FSOH090RN 1
WS1 8970022571 EX1900 J boad set-1 (1)/PA-3 1
WS2 8970022580 EX1900
1.5D coaxial cable (1)/PA-3 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[PA-4 BOARD]
J2 6510017920 Connector 1811P342 1
J5 6510003390 Connector B03B-EH-S 1
EP1 6910011330 Terminal OT-009 M3 1
EP2 6910011330 Terminal OT-009 M3 1
EP3 6910000640 Bead FSOH090RN 1
WS1 8970022591 EX1900 Jboad set-1(1)/PA-4 1
WS2 8970022600 EX1900
1.5D coaxial cable (1)/PA-4 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
[SPLITR UNIT]
J1 6510007020 Connector TMP-J01X-V6 1
J2 6510007020 TMP-J01X-V6 1
J4 6510007020 TMP-J01X-V6 1
J5 6510007020 TMP-J01X-V6 1
J6 6510007020 TMP-J01X-V6 1
J7 6510007020 TMP-J01X-V6 1
J8 6510007020 TMP-J01X-V6 1
RL1 6330001330 AG 201344 1
RL2 6330000470 NR-HD (12V) AE5343 1
WS1 8600035721 EX1900 P01*J03*09SP-1 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.

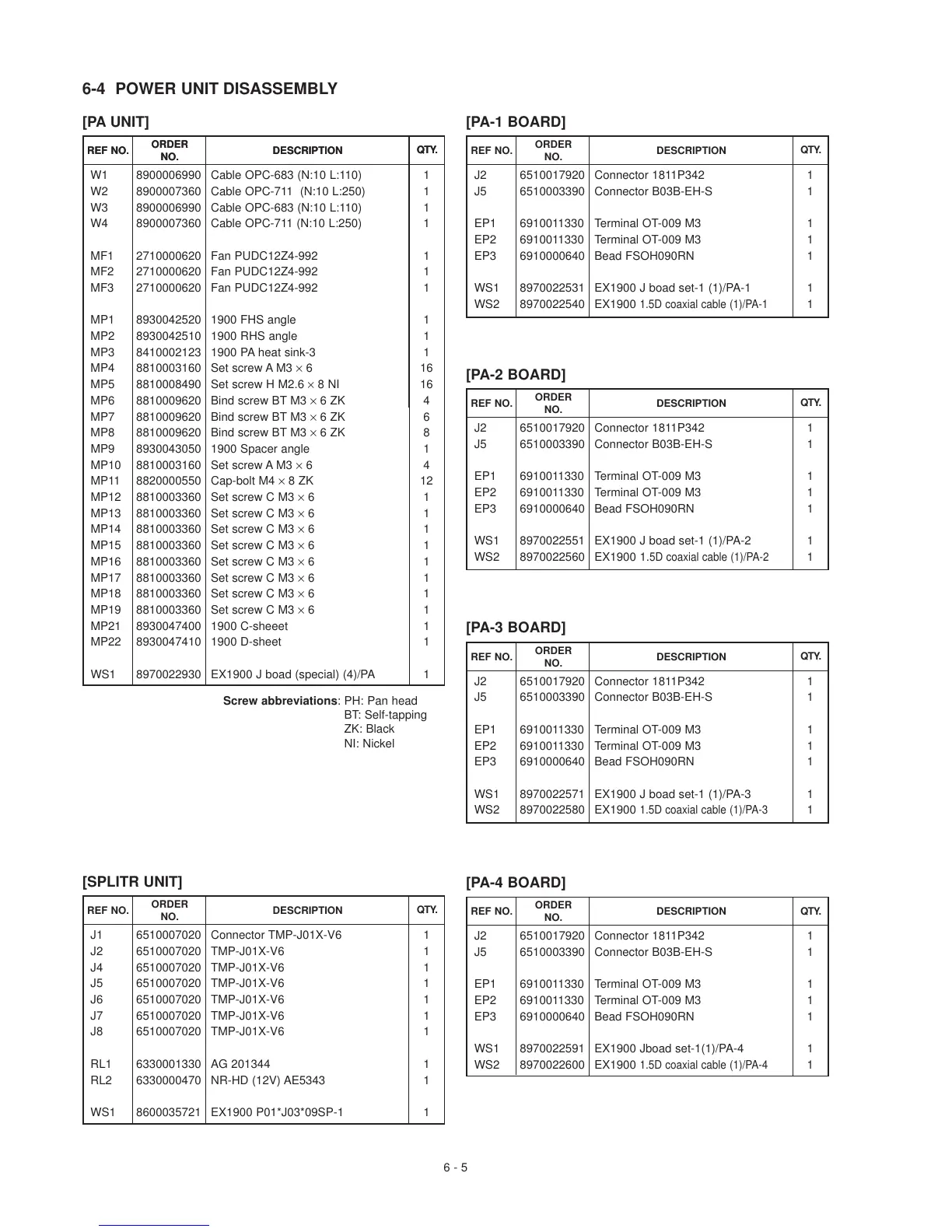

6-4 POWER UNIT DISASSEMBLY
Screw abbreviations: PH: Pan head
BT: Self-tapping
ZK: Black
NI: Nickel
