C1 4620000130 UV55 150pF 1
C2 4620000130 UV55 150pF 1
EP7 9019001020 Enpire tube 10.0 (d) L=6.5 (mm) 1
MF1 2710000460 Stepping motor MP28GA 1
MF2 2710000460 Stepping motor MP28GA 1
MF3 2710000630 Fan FBA08T12HC (w/beadscore) 1
MP1 8510011322 1900 A-TUN case-2 1
MP2 8510011351 1900 A-TUN cover-1 1
MP3 8930044041 1900 A-motor angle-1 1
MP4 8810006500 Bind screw M4 × 20 ZK 4
MP5 8810002160 Screw FH M3 × 56
MP6 8930030111 1414 Plate-1 2
MP7 8820000880 1528 Screw 4
MP8 8930044030 1900 TUN angle 1
MP9 8950003200 UJ6-5 (univ. cuppling) 2
MP10 8930044050 1900 CU plate 1
MP11 8810002160 Screw FH M3 × 51
MP12 8810009620 Bind screw BT M3 × 6 ZK 1
MP13 8510011332 1900 B-TUN case-2 1
MP14 8810009620
Tapping screw bind B0 M3 × 6 ZK(BT)
3
MP15 8810009620
Tapping screw bind B0 M3 × 6 ZK(BT)
3
MP16 8810009620
Tapping screw bind B0 M3 × 6 ZK(BT)
3
MP17 8810008660
Tapping screw bind PH B0 M3 × 8 NI-ZU (BT)
4
MP18 8810009620
Tapping screw bind B0 M3 × 6 ZK(BT)
4
MP19 8810003160 Set screw A M3 × 64
MP20 8810008660
Tapping screw bind PH B0 M3 × 8 NI-ZU (BT)
4
MP21 8810009310
Tapping screw bind PH B0 M3 × 6 NI-ZU (BT)
2
MP22 8810003380 Set screw C M3 ×10 1
MP23 8810003160 Set screw A M3 × 62
MP24 8810003360 Set screw C M3 × 62
MP25 8950000180 Cable tie-80 2
MP26 6910008240 Clip 59TN4772 2
MP27 8810003160 Set screw A M3 × 64
MP28 8930007100 Alumi-sheet C 3
MP31 8930047180 1900 A-grounding plate 1
MP32 8810008660
Tapping screw bind PH B0 M3 × 8 NI-ZU (BT)
1
MP34 8950001770 Filamen tape 9510 12 × 40 1
MP35 8950004950 Filamen tape 9510 12 × 195 1
MP36 8930047810 1900 Tun spring 1
MP37 8930047190 1900 B-grounding plate 1
MP38 8810008630
Tapping screw bind PH B0 M3 × 6 NI-ZU (BT)
1
MP39 8930004070 Grounding spring (C) 1
MP40 8930008660
Tapping screw bind PH B0 M3 × 8 NI-ZU (BT)
1
WS1 8970022910 EX1900 Special coxial cable (1)/TU 1
6 - 7
[TUNER UNIT]
REF NO.
ORDER
NO.
DESCRIPTION
QTY.

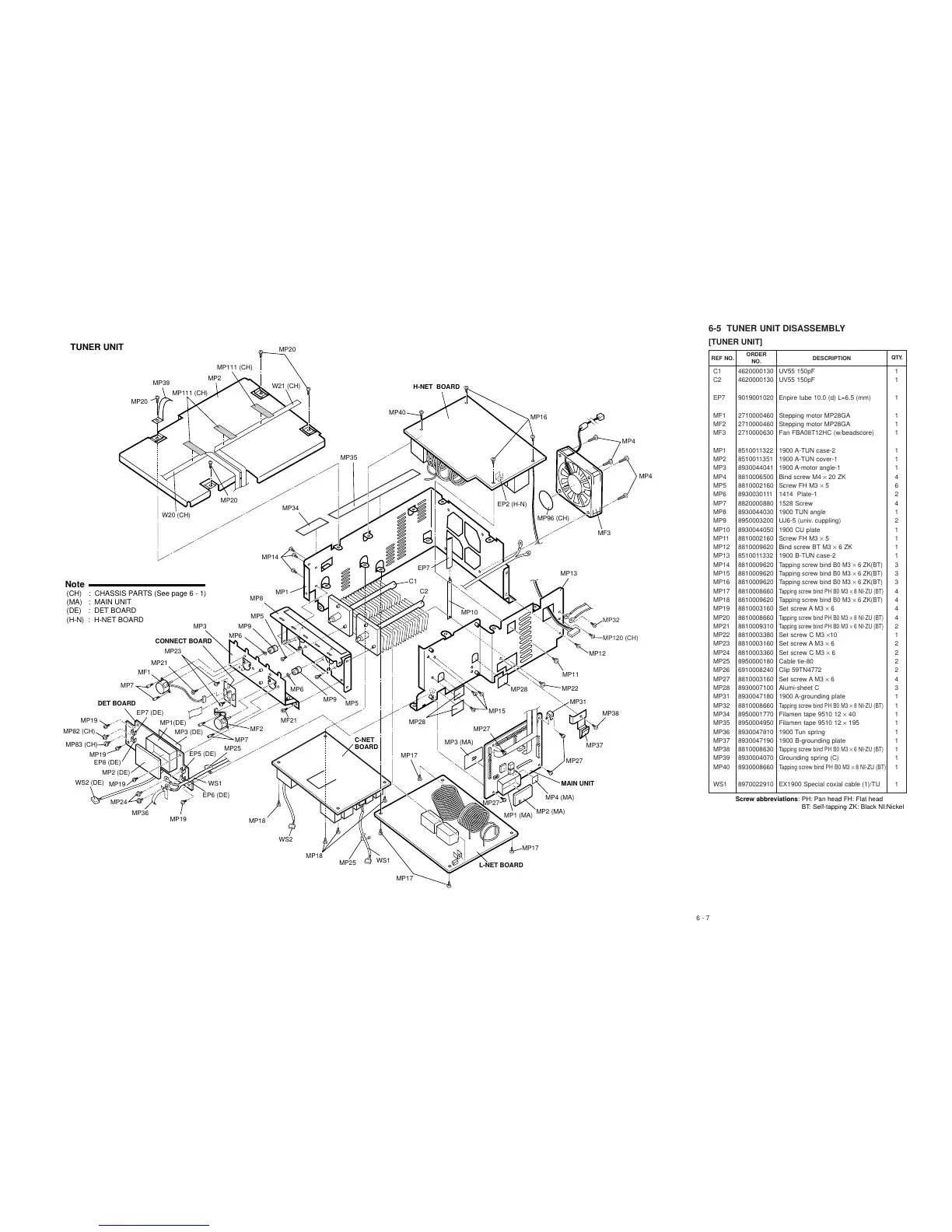

6-5 TUNER UNIT DISASSEMBLY
