Icom IC-PW1 Service Manual Addendum

6 - 9

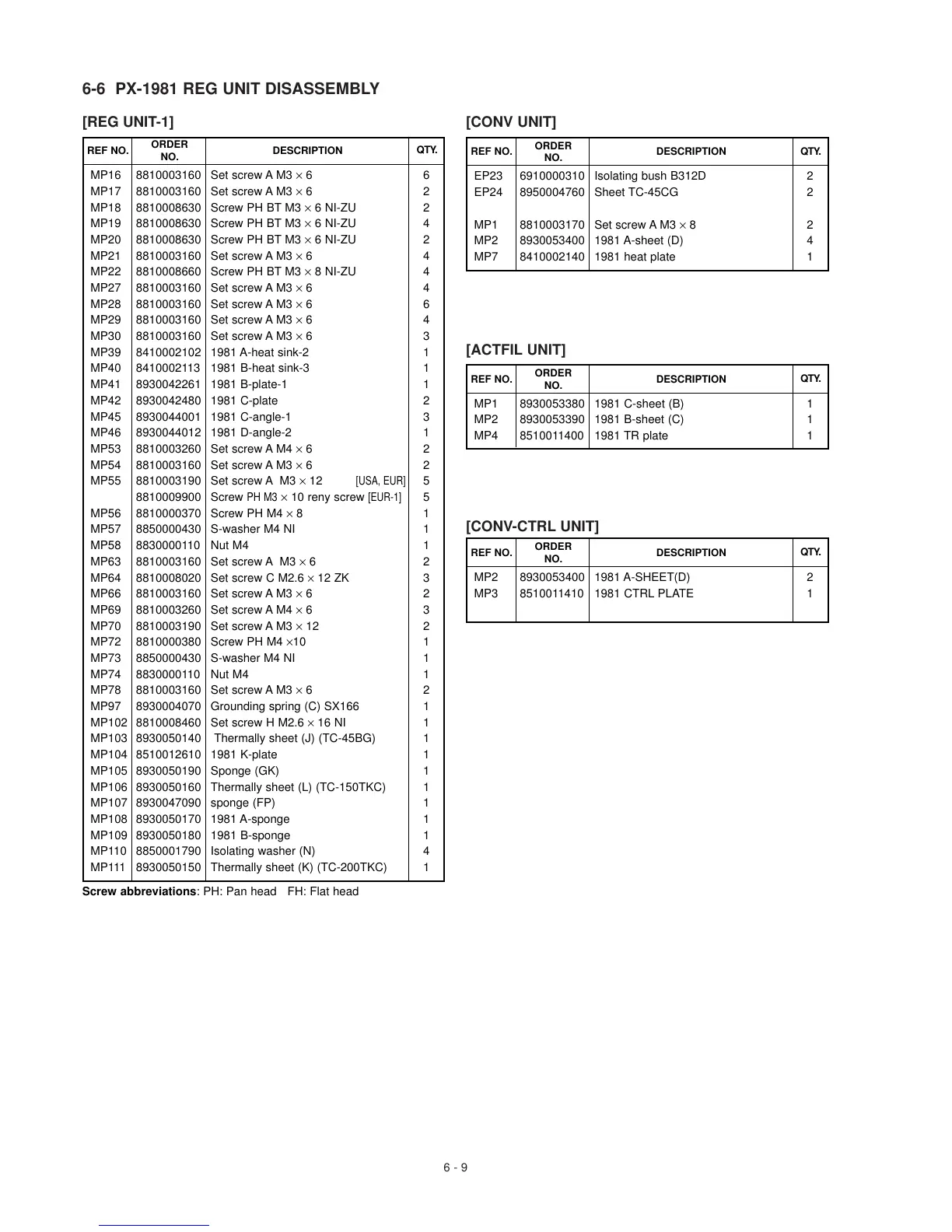

6-6 PX-1981 REG UNIT DISASSEMBLY
[REG UNIT-1] [CONV UNIT]
[ACTFIL UNIT]
[CONV-CTRL UNIT]
Screw abbreviations: PH: Pan head FH: Flat head
MP16 8810003160 Set screw A M3 × 66
MP17 8810003160 Set screw A M3 × 62
MP18 8810008630 Screw PH BT M3 × 6 NI-ZU 2
MP19 8810008630 Screw PH BT M3 × 6 NI-ZU 4
MP20 8810008630 Screw PH BT M3 × 6 NI-ZU 2
MP21 8810003160 Set screw A M3 × 64
MP22 8810008660 Screw PH BT M3 × 8 NI-ZU 4
MP27 8810003160 Set screw A M3 × 64
MP28 8810003160 Set screw A M3 × 66
MP29 8810003160 Set screw A M3 × 64
MP30 8810003160 Set screw A M3 × 63
MP39 8410002102 1981 A-heat sink-2 1
MP40 8410002113 1981 B-heat sink-3 1
MP41 8930042261 1981 B-plate-1 1
MP42 8930042480 1981 C-plate 2
MP45 8930044001 1981 C-angle-1 3
MP46 8930044012 1981 D-angle-2 1
MP53 8810003260 Set screw A M4 × 62
MP54 8810003160 Set screw A M3 × 62
MP55 8810003190 Set screw A M3 × 12
[USA, EUR] 5
8810009900 Screw PH M3 × 10 reny screw [EUR-1] 5
MP56 8810000370 Screw PH M4 × 81
MP57 8850000430 S-washer M4 NI 1
MP58 8830000110 Nut M4 1
MP63 8810003160 Set screw A M3 × 62
MP64 8810008020 Set screw C M2.6 × 12 ZK 3
MP66 8810003160 Set screw A M3 × 62
MP69 8810003260 Set screw A M4 × 63
MP70 8810003190 Set screw A M3 × 12 2
MP72 8810000380 Screw PH M4 ×10 1
MP73 8850000430 S-washer M4 NI 1
MP74 8830000110 Nut M4 1
MP78 8810003160 Set screw A M3 × 62
MP97 8930004070 Grounding spring (C) SX166 1
MP102 8810008460 Set screw H M2.6 × 16 NI 1
MP103 8930050140 Thermally sheet (J) (TC-45BG) 1
MP104 8510012610 1981 K-plate 1
MP105 8930050190 Sponge (GK) 1
MP106 8930050160 Thermally sheet (L) (TC-150TKC) 1
MP107 8930047090 sponge (FP) 1
MP108 8930050170 1981 A-sponge 1
MP109 8930050180 1981 B-sponge 1
MP110 8850001790 Isolating washer (N) 4
MP111 8930050150 Thermally sheet (K) (TC-200TKC) 1
EP23 6910000310 Isolating bush B312D 2
EP24 8950004760 Sheet TC-45CG 2
MP1 8810003170 Set screw A M3 × 82
MP2 8930053400 1981 A-sheet (D) 4
MP7 8410002140 1981 heat plate 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
MP1 8930053380 1981 C-sheet (B) 1
MP2 8930053390 1981 B-sheet (C) 1
MP4 8510011400 1981 TR plate 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
MP2 8930053400 1981 A-SHEET(D) 2
MP3 8510011410 1981 CTRL PLATE 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
