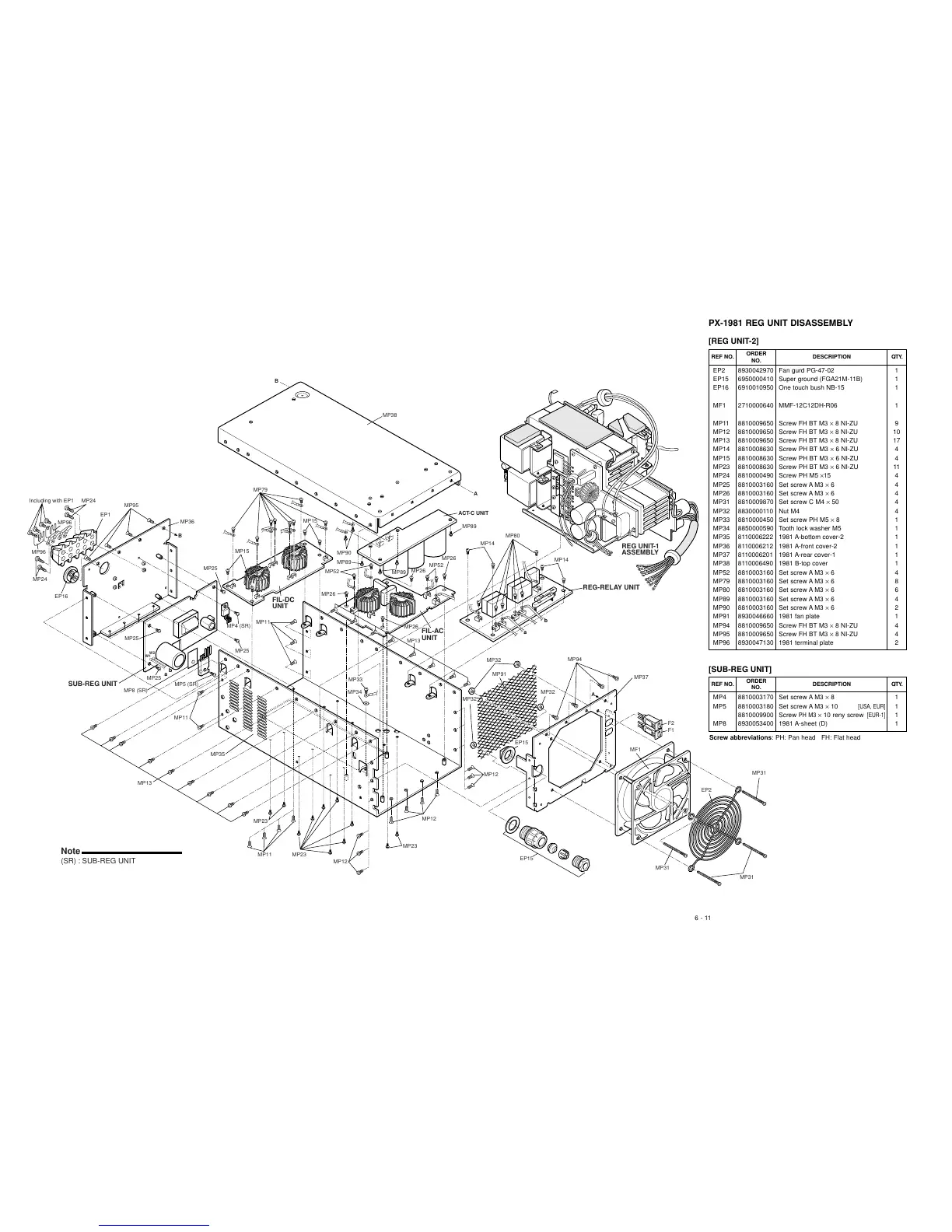

PX-1981 REG UNIT DISASSEMBLY
[REG UNIT-2]
[SUB-REG UNIT]
Screw abbreviations: PH: Pan head FH: Flat head
EP2 8930042970 Fan gurd PG-47-02 1
EP15 6950000410 Super ground (FGA21M-11B) 1
EP16 6910010950 One touch bush NB-15 1
MF1 2710000640 MMF-12C12DH-R06 1
MP11 8810009650 Screw FH BT M3 × 8 NI-ZU 9
MP12 8810009650 Screw FH BT M3 × 8 NI-ZU 10
MP13 8810009650 Screw FH BT M3 × 8 NI-ZU 17
MP14 8810008630 Screw PH BT M3 × 6 NI-ZU 4
MP15 8810008630 Screw PH BT M3 × 6 NI-ZU 4
MP23 8810008630 Screw PH BT M3 × 6 NI-ZU 11
MP24 8810000490 Screw PH M5 ×15 4
MP25 8810003160 Set screw A M3 × 64
MP26 8810003160 Set screw A M3 × 64
MP31 8810009870 Set screw C M4 × 50 4
MP32 8830000110 Nut M4 4
MP33 8810000450 Set screw PH M5 × 81
MP34 8850000590 Tooth lock washer M5 1
MP35 8110006222 1981 A-bottom cover-2 1
MP36 8110006212 1981 A-front cover-2 1
MP37 8110006201 1981 A-rear cover-1 1
MP38 8110006490 1981 B-top cover 1
MP52 8810003160 Set screw A M3 × 64
MP79 8810003160 Set screw A M3 × 68
MP80 8810003160 Set screw A M3 × 66
MP89 8810003160 Set screw A M3 × 64
MP90 8810003160 Set screw A M3 × 62
MP91 8930046660 1981 fan plate 1
MP94 8810009650 Screw FH BT M3 × 8 NI-ZU 4
MP95 8810009650 Screw FH BT M3 × 8 NI-ZU 4
MP96 8930047130 1981 terminal plate 2
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
MP4 8810003170 Set screw A M3 × 81
MP5 8810003180 Set screw A M3 × 10
[USA, EUR]
1
8810009900 Screw
PH M3
× 10 reny screw
[EUR-1]
1
MP8 8930053400 1981 A-sheet (D) 1
REF NO.
ORDER
NO.
DESCRIPTION
QTY.
