Icom IC-T2H Service Manual

3 - 1

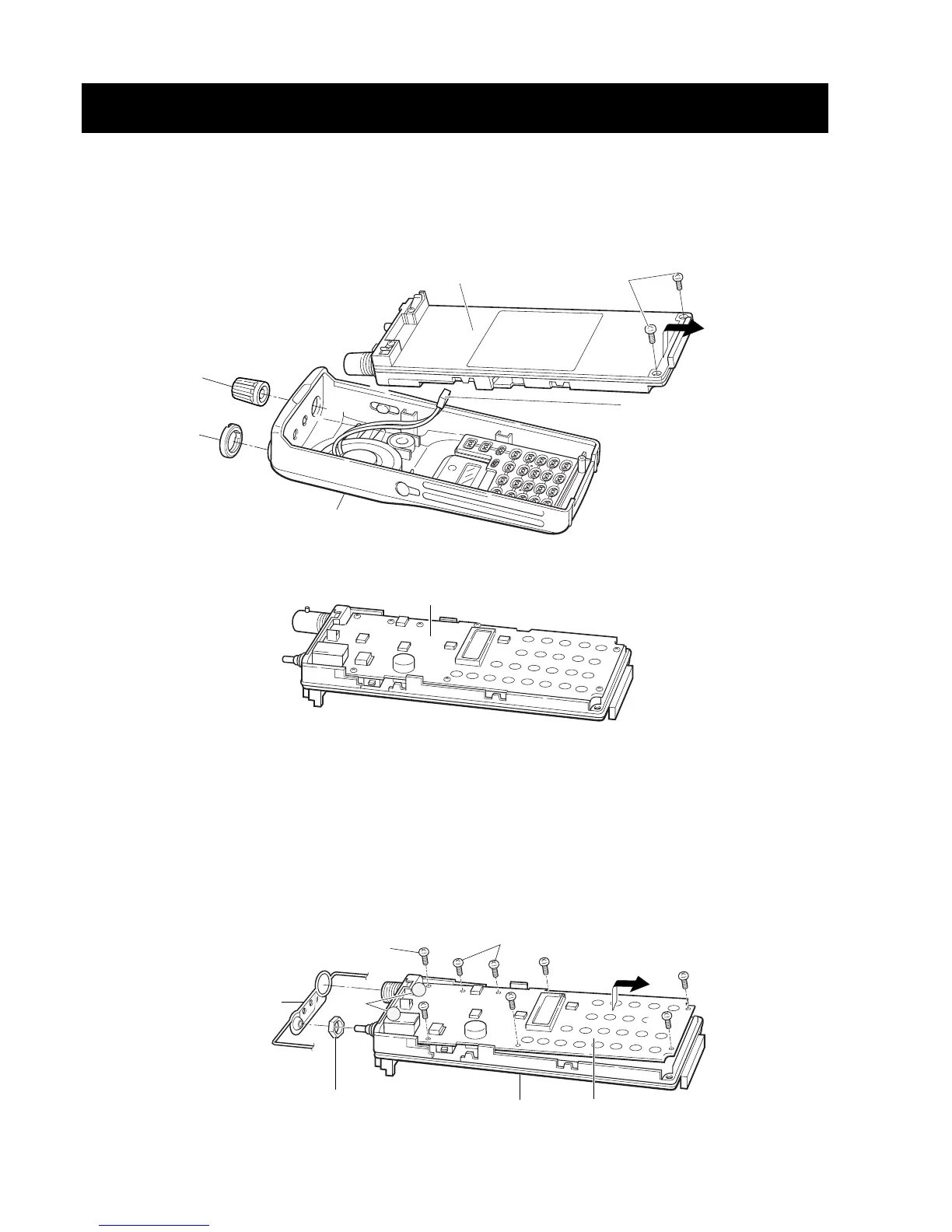

SECTION 3 DISASSEMBLY INSTRUCTIONS
• Removing the chassis panel
q Unscrew 1 nut,
A
, and remove 1 nob,
B
.
w Unscrew 2 screws,
C
.
e Remove the the chassis in the direction of the arrow.
r Unplug J6 to separate front panel and chassis.
• Removing the MAIN unit
q Remove the sealing rubber.
w Unsolder 2 points,
D
, and unscrew 1 nut,
E
.
e Unscrew 2 screws,
F
, and 6 screws,
G
(silver, 2 mm), to separate the chassis and MAIN unit.
r Remove the MAIN unit in the direction of the arrow.
Chassis
C
(nickel, 2 mm) × 2
J6 (Speaker connector)
Front panel
A
Nut
B
Nob
F
(black, 2 mm) × 2
G
G
MAIN unit
Sealing rubber
E
Nut
Chassis
G
G
G
D
G
(silver, 2 mm) × 6
MAIN UNIT (Top view)
