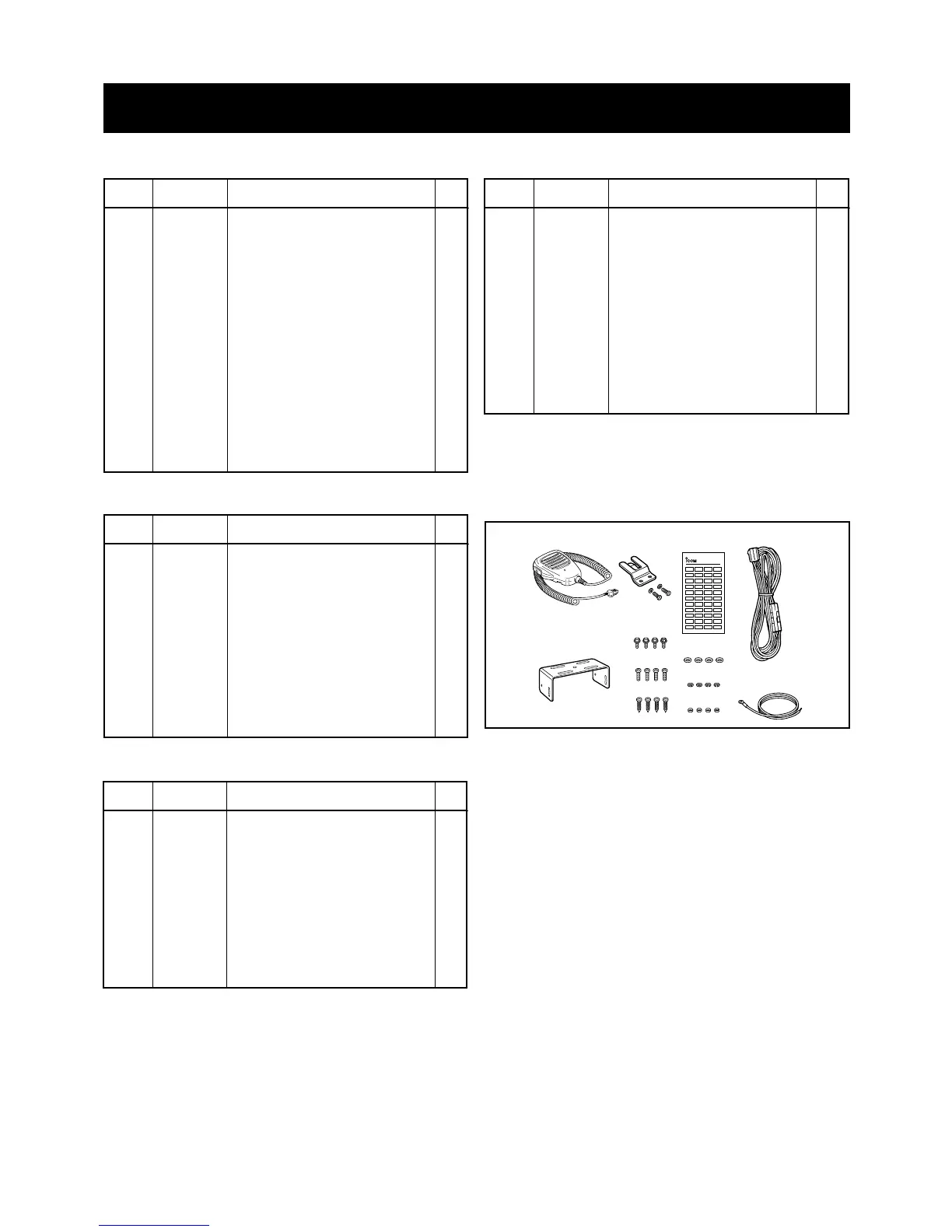

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1
MC1
MP1
MP9 MP10
W2
W1
MP3
MP4
MP5
MP6
MP7
MP8
IC
O
M
LCD-STICKER
J1 6510004880 Connector MR-DS-E 01 1
MP1 8010019060 2601 chassis 1
MP2 8110007820 2601 cover 1
MP3 8210019340 2622 front panel 1
MP4 8930059010 2622 keyboard 1
MP5 8930059090 2622 LCD plate 1
MP6 8210019350 2622 reflector 1
MP7 8610011180 Knob N292 1
MP9 8810008660 Screw PH BT M3 × 8 NI-ZU 8
MP10 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP11 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP12 8810008760 Screw PH BT M3 × 8 NI-ZU 3
MP13 8810008660 Screw PH BT M3 × 8 NI-ZU 1
MP14 8810009990 Screw PH BT M3 × 8 ZK 4
MP15 8810009990 Screw PH BT M3 × 8 ZK 2
MP16 8930059100 2622 LCD filter 1
MP17 8930059000 2601 SP net 1
[CHASSIS PARTS]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
R14 7210003020 Variable resistor EVU-F2KFK1 B14 1
SP1 2510001220 Speaker C052SB500-13 1
J1 6450002210 Connector 3017-8821 1
W1 8900010500 Cable OPC-1046 1
DS11 5030002510 LCD L2-0607TAY 1
EP2 8930059170 LCD contact SRCN-2622-SP-N-W 1
MP1 8930059110 2622 spring 1
[FRONT UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
J4 6450000140 Connector HSJ0807-01-010 1
W2 8900011861 Cable OPC-1195A 1
MP1 8510002280 VCO shield plate (A) 1
MP4 8510014940 2601 VCO case 1
MP5 8510014950 2601 VCO cover 1
MP6 8510014910 2601 filter case 1
MP7 8510015110 2602 M-plate 1
MP9 8930058990 Shield sponge (V) 1
MP10 8930058840 Shield sponge (T) [GEN] only 1
MP11 8930058840 Shield sponge (T) 1
[MAIN UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
MC1 0800005780 Microphone HM-100N 1
W1 8900011780 Cable OPC-1194 1
W2 8900000730 Cable OPC-049 1
MP1 8010019170 2601 mobil bracket assembly 1
MP3 8820000530 Flange bolt M4 × 8 NI 4
MP4 8810000470 Screw PH M5 × 12 (+-) 4
MP5 8810005840 Screw PH A M5 × 20 4
MP6 8850000150 Flat washer M5 NI BS 4
MP7 8850000390 Spring washer M5 4
MP8 8830000120 Nut M5 4
MP9 6910004210 731 mic hanger set 1
MP10 8310054770 1705 LCD seal (F) 1
[ACCESSORIES]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
Screw abbreviations A,BT:
Self-tapping
PH: Pan head
ZK: Black BS: Brass
NI: Nickel NI-ZU: Nickel-Zinc
