Icom iF110 Service Manual

ANT
CHASSIS
J1
to DC cable
W2
IC3
1
4
8
5
18
169
1
8
16
9
1
to Optional unit
15
30 16
J1
GND
5V
VCC
MMUTE
AFONO
BEEPO
RMUTE
DET
DISC
REM
CCS
CIRQ
SO
SI
SCK
PTTI
PTTO
MCOT
MCIN
NC
BUSY
NC
SIGO
OPT1 OPT2 OPT3
GND
DAST
OV12 OV12
DIM
40 2
39
to FRONT unit J2
1
J2
DAST
OPT3 OPT2 OPT1
PTTO
PTTI
REM
SCK
SI
SO
CIRQ
CCS
MIC
EPTT
NC
BEEP
PWON
8V
GND
GND
TONE
TENC
NOIS
EXOE
EXST
UNLK
PLST
CDEC
SDEC
OV12
RSSI
LVIN
TEMP
BATV
NC
NC
5V
CPU5
AFO
VCC
1
11
J6
DIM
HORN
GND
AFO
GND
DISC
GND
IN
GND
PTT
to Optional
cable OPC-617
SP
-
1
to
speaker
2
J7
SP+

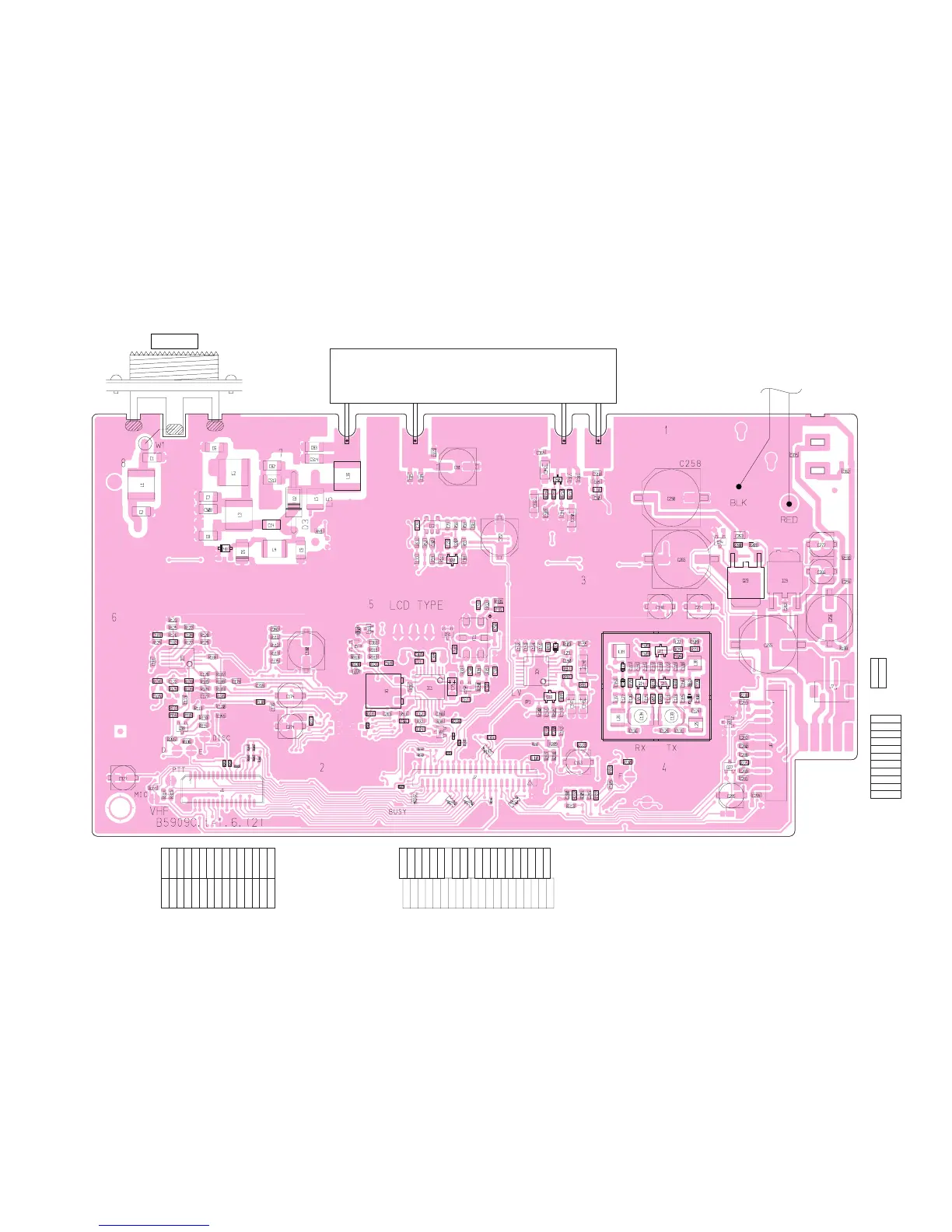

9-2 MAIN UNIT
• TOP VIEW
9 - 3
