Icom iF110 Service Manual

2 - 1

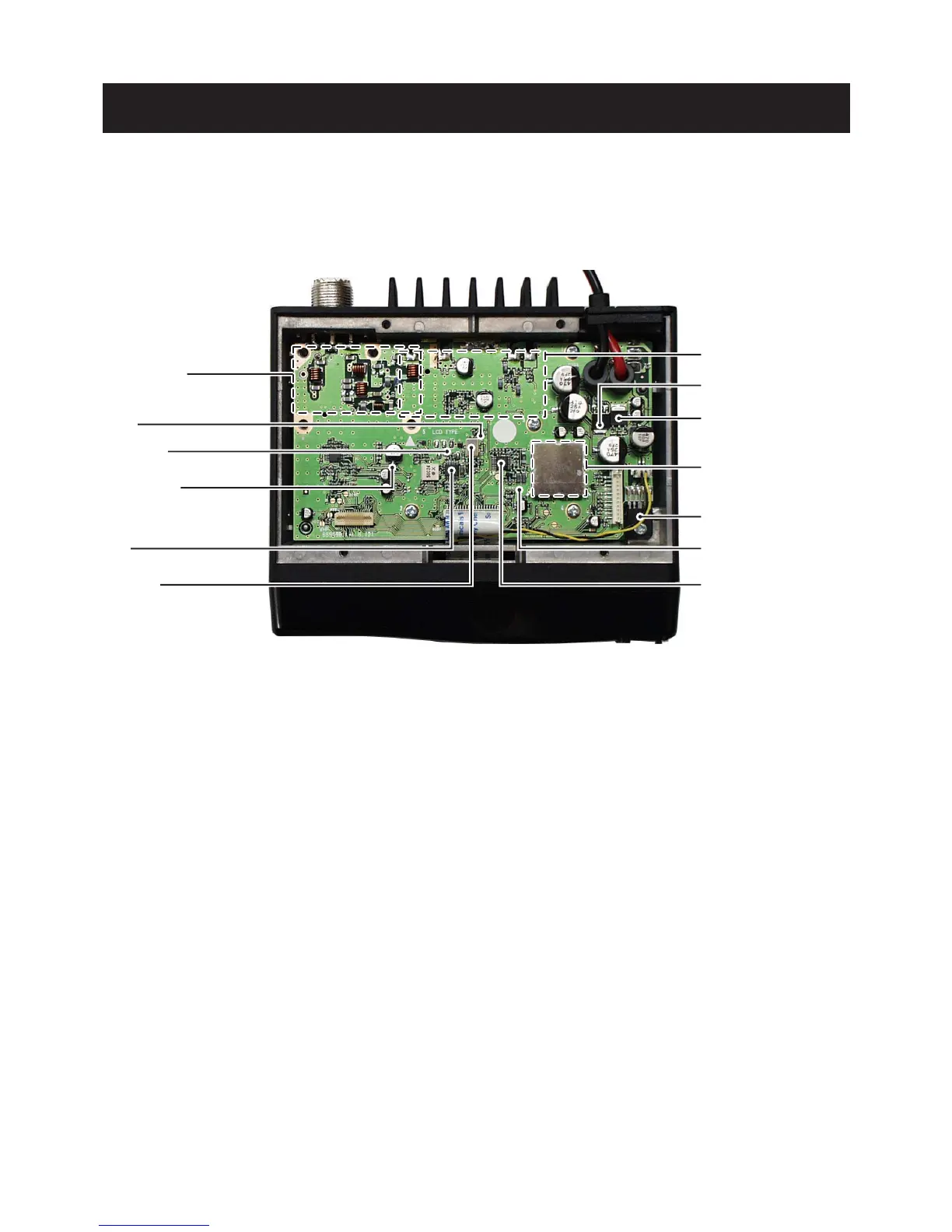

SECTION 2 INSIDE VIEW
Antenna switch/
Low-pass filter circuit
Mixer*
(Q3: 3SK299)
2nd IF filter*
(FI2: ALFYM450F=K)
D/A converter*
(IC6: M62363FP-650C)
IF IC
(IC1: TA31136FN)
1st IF filter
(FI1: FL-335)
* Located under side of the point.
Final FET module
(IC3: S-AV33)
CPU 5V regurator*
(IC10: AN78L05M)
8V regurator
(IC9: TA7808F)
VCO circuit
AF amplifier
(IC8: LA4425A)
Reference crystal oscillator*
(X2: CR-740 15.3 MHz)
PLL IC
(IC4: MB15A02PFV-1)

Icom iF110 Specifications

General

Brand	Icom
Model	iF110
Category	Transceiver
Language	English
