3 - 1

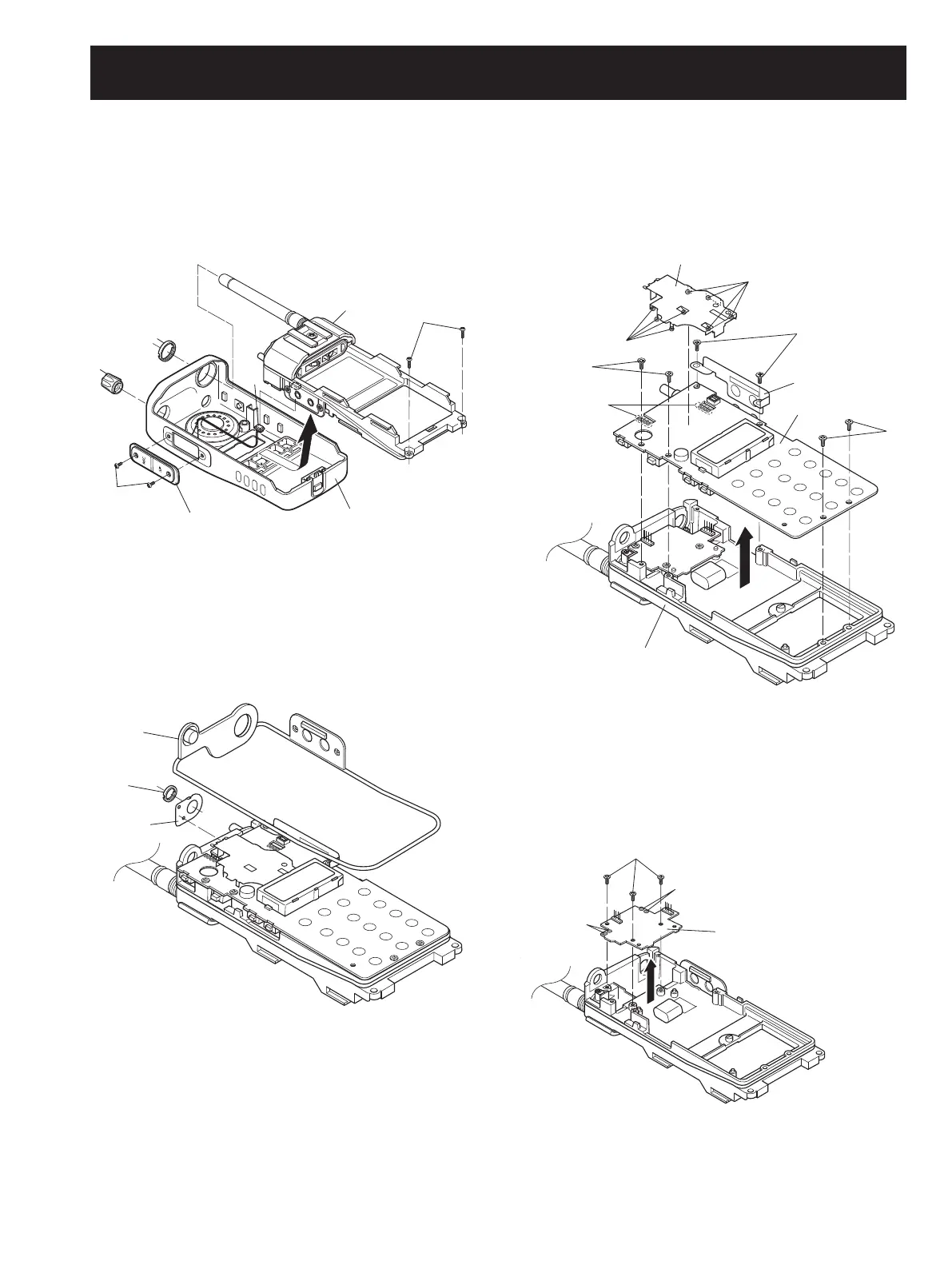

SECTION 3 DISASSEMBLY INSTRUCTIONS
2 REMOVING THE MAIN-C UNIT
q Remove the main seal F.
w Unscrew VR nut G, and remove the top plate H.
3 REMOVING THE PA-C UNIT
q Unscrew 3 screws M.
w Unsolder 4 points N, and take off the PA-C UNIT in the
direction of the arrow.
1 REMOVING THE CHASSIS UNIT
q Unscrew ANT nut A, and remove knob B.
w Unscrew 2 screws C, and remove the jack panel.
e Unscrew 2 screws D, and unplug the connector E from
the chassis unit
.
r Take off the chassis unit in the direction of the arrow from
the front panel.
e Unscrew 6 screws J.
r Remove the side plate I.
t Unsolder 8 points K, and remove the shield cover.
y Unsolder 8 points L, and take off the MAIN-C UNIT in
the direction of the arrow.
