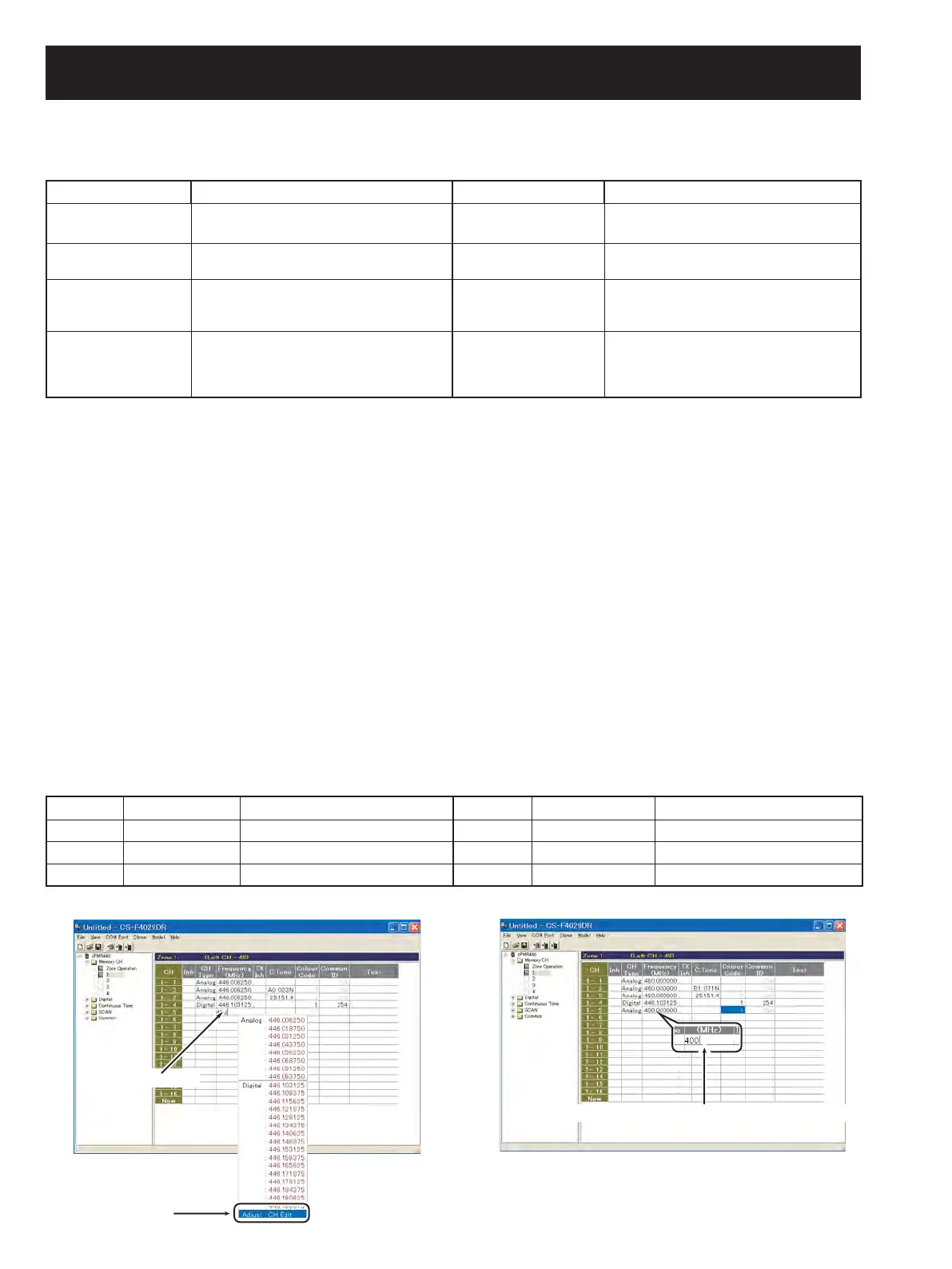

SECTION 5 ADJUSTMENT PROCEDURES
5-1 PREPARATION
When adjusting IC-F4029SDR, CS-F4029DR
CLONING SOFTWARE,
CS-F4029 ADJ
ADJUSTMENT SOFTWARE
(Rev. 1.0 or later),
OPC-478/U
JIG CABLE
(modifi ed OPC-478/U
CLONING CABLE
; see the page 5-2) and the following test equipments are required.
EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE
DC power supply
Output voltage
Current capacity
: 7.2 V DC
: More than 1 A
External speaker
Input impedance
Capacity
: 8
Ω
: 1 W or more
FM deviation meter
Frequency range
Measuring range
: DC–600 MHz
: 0 to
±
10 kHz
Attenuator
Power attenuation
Capacity
: 20 or 30 dB
: 10 W
Frequency counter
Frequency range
Frequency accuracy
Sensitivity
: 0.1–300 MHz
: ±1 ppm or better
: 100 mV or better
Standard signal
generator (SSG)
Frequency range
Output level
: 0.1–600 MHz
: 0.1 µV to 32 mV
(–127 to –17 dBm)
RF power meter
Measuring range
Frequency range
Impedance
SWR
: 0.1–1 W
: 100–600 MHz
: 50
Ω
: Better than 1.2 : 1
Oscilloscope
Frequency rang
Measuring range
: DC–20 MHz
: 0.01–20 V
5 - 1
▄
SYSTEM REQUIREMENTS
(for the ADJUSTMENT SOFTWARE)
• Microsoft
®
Windows
®
98/98SE/Me/2000/XP • RS-232C serial port (D-sub 9 pin) or USB port
▄
BEFORE STARTING SOFTWARE ADJUSTMENT
Clone the adjustment frequencies and settings into the transceiver, and set the confi guration using the CS-F4029DR
CLON-
ING SOFTWARE
before starting the software adjustment. Otherwise, the software adjustment can not be started.
CAUTION!: BACK UP the originally programmed memory data in the transceiver before programming the adjustment frequen-
cies. When program the adjustment frequencies into the transceiver, the transceiver’s memory data will be overwrit-
ten and lose original memory data at the same time.
e Type the specified frequency for the adjustment.
q Double click.
w Select.
y
After the installation is completed, the “InstallShield Wiz-
ard Complete” will appear. Then click [Finish].
u
Eject the CD.
i
Program group ‘CS-F4029 ADJ’ appears in the ‘Programs’
folder of the start menu, and ‘CS-F4029 ADJ’ icon ap-
pears on the desk top screen.
Microsoft and Windows are registered trademarks of Micro-
soft Corporation in the U.S.A. and other countries.
*; The frequency can be input directly as below.
• ADJUSTMENT FREQUENCY LIST
CHANNEL FREQUENCY SETTING CHANNEL FREQUENCY SETTING
1-1 446.006250 MHz
None
1-4 446.103125 MHz
None
1-2 446.006250 MHz
• DTCS code : 071
1-5 400.000000 MHz*
None
1-3 446.006250 MHz
• CTCSS frequency : 151.4 Hz
▄
ADJUSTMENT SOFTWARE INSTALLATION
q
Quit all applications when Windows is running.
w
Insert the CD into the appropriate CD drive.
e
Double-click the “Setup.exe” contained in the ‘CS-F4029
ADJ’ folder in the CD drive.
r
The “Welcome to the InstallShield Wizard for CS-F4029
ADJ” will appear. Click [Next>].
t
The “Choose Destination Location” will appear. Then click
[Next>] to install the software to the destination folder. (e.g.
C:\Program Files\Icom\CS-F4029 ADJ)
To Next Page
