Icom iF4029SDR Service Manual

5 - 2
IC-F4029SDR
FM
deviation meter
Osciiloscope
to the J701 (PA-C UNIT)
Attenuator
10 dB or 20 dB
RF power meter
0.01–1 W/50 Ω
Frequency
counter
Standard signal generator
0.1 µV to 32 mV
(–127 dBm to –17 dBm)
CAUTION!
DO NOT transmit while
the SSG is connected to
the antenna connector
SINAD meter
Speaker (8 Ω)
To [SP] jack
JIG cable 2
JIG cable 1
PC
to USB port
to RS-232C port
OPC-478 (RS-232C type)
OPC-478U (USB type)
Audio
generator
AC
millivoltmeter
To [MIC] jack
To MIC/GND
To SP /
DC power supply
7.2 V /1 A
+
–
+
–

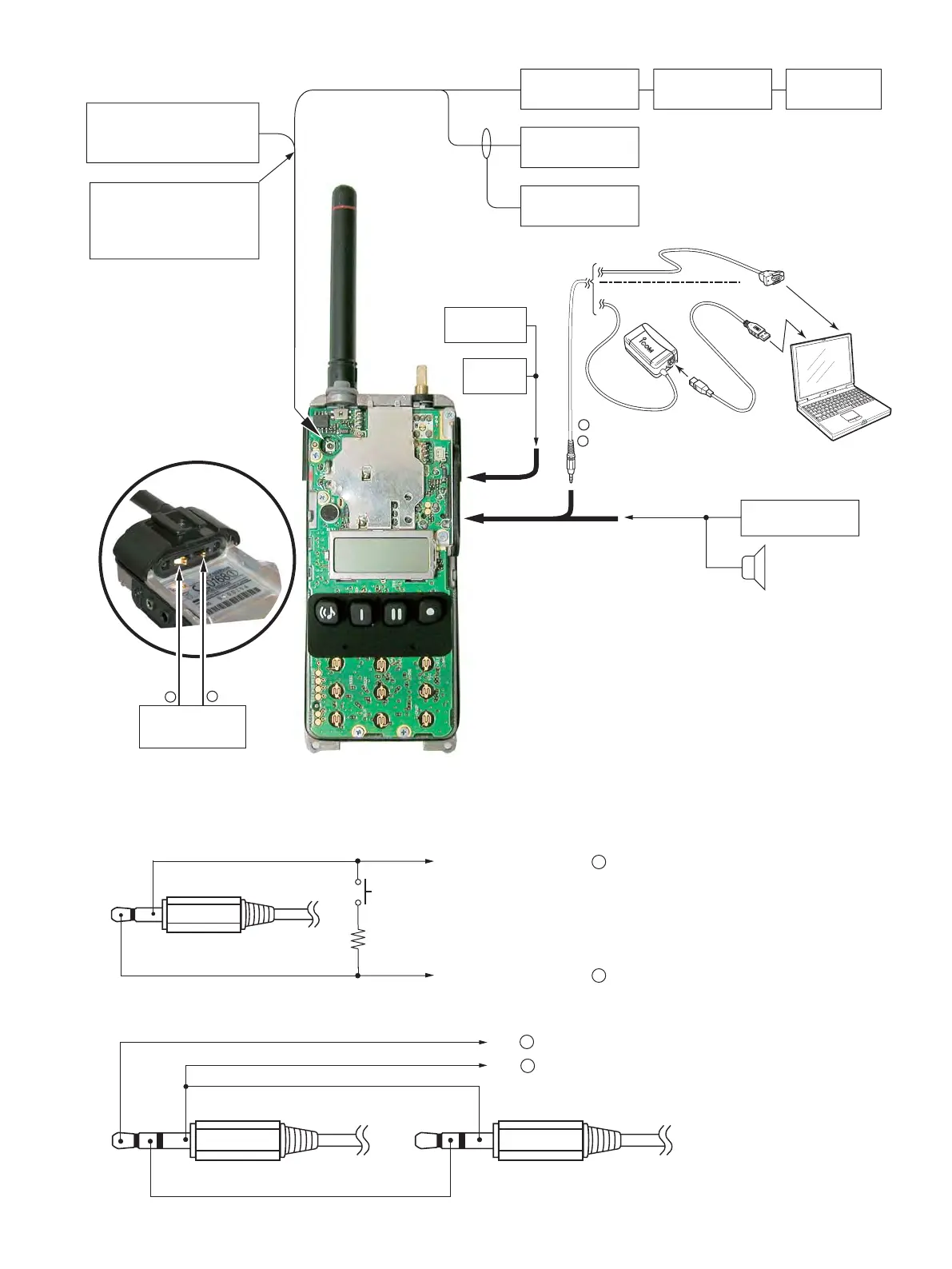

• CONNECTION
• JIG CABLES
3-conductor 3.5(d) mm plug
(SP +
)
(CLONE)
OPC-478/U
(GND)
(SP)
(SP − )
[JIG cable 2]
JIG cable
2-conductor 2.5 (d) mm plug
(MIC)
(GND
)
33 kΩ
(to the audio generator ” + ”
)
[JIG
ca
bl
e
1]
(to the audio generator ” − ”
)
PTT
