ICON EDGE USER MANUAL
15
Pattern Module Disassemble and Install Instruction：
With the limitation of the space, the CMY module has to be removed before disassemble the pattern
and color module. Ensure the Zoom Assy is pushed forward to the front lens.

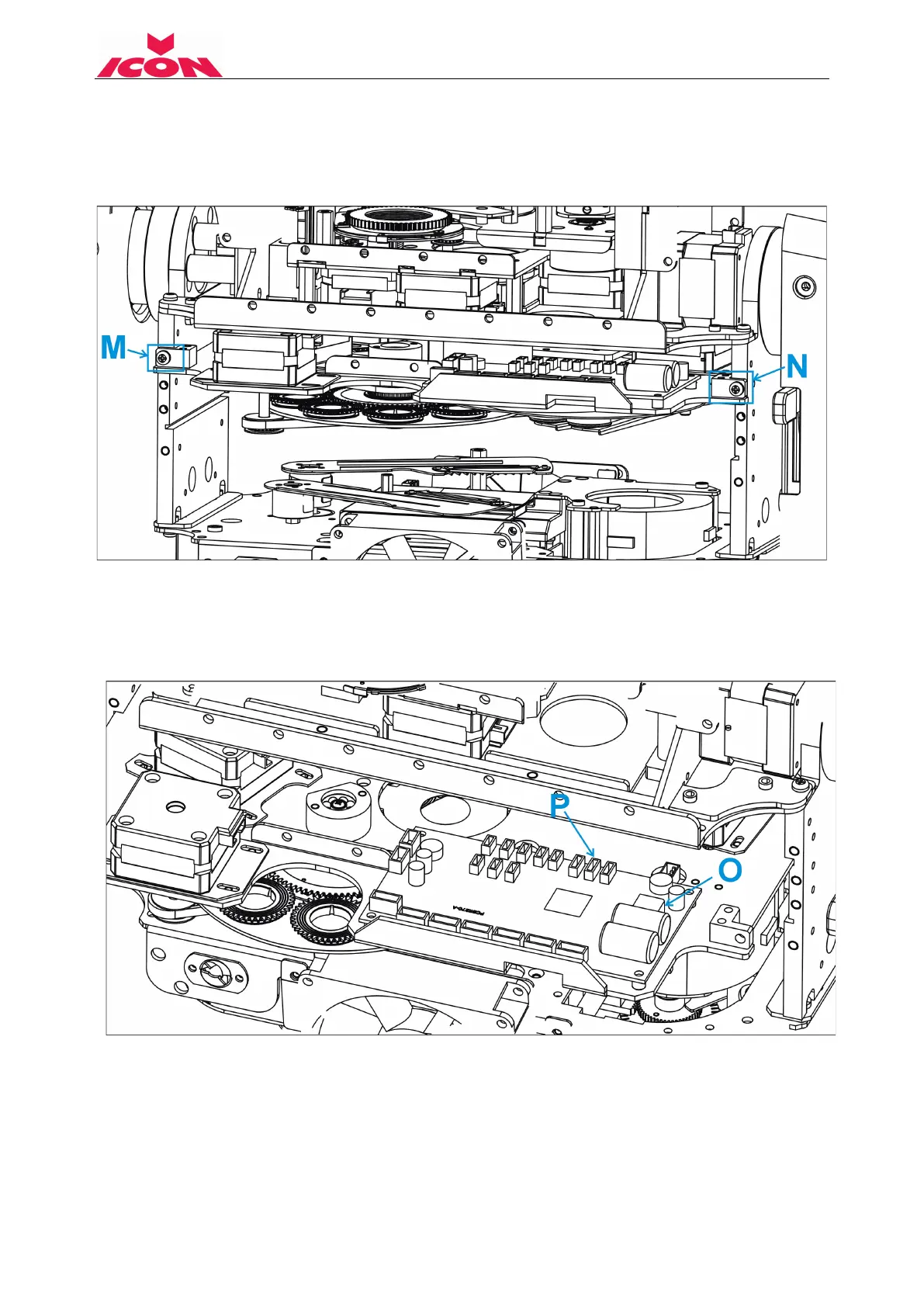

Disassemble 5: Remove 2 screws: M, N
Install 3: Push the gobo into the right place and lock 2 screws M, N.
Disassemble 6: Pull out the gobo assembly about 60mm, unplug the power cord from socket O, and
signal wire from socket P.
Install 2: Push along the gobo assembly into the slot about 50mm, plug the power cord into socket O
and signal wire into socket P.
