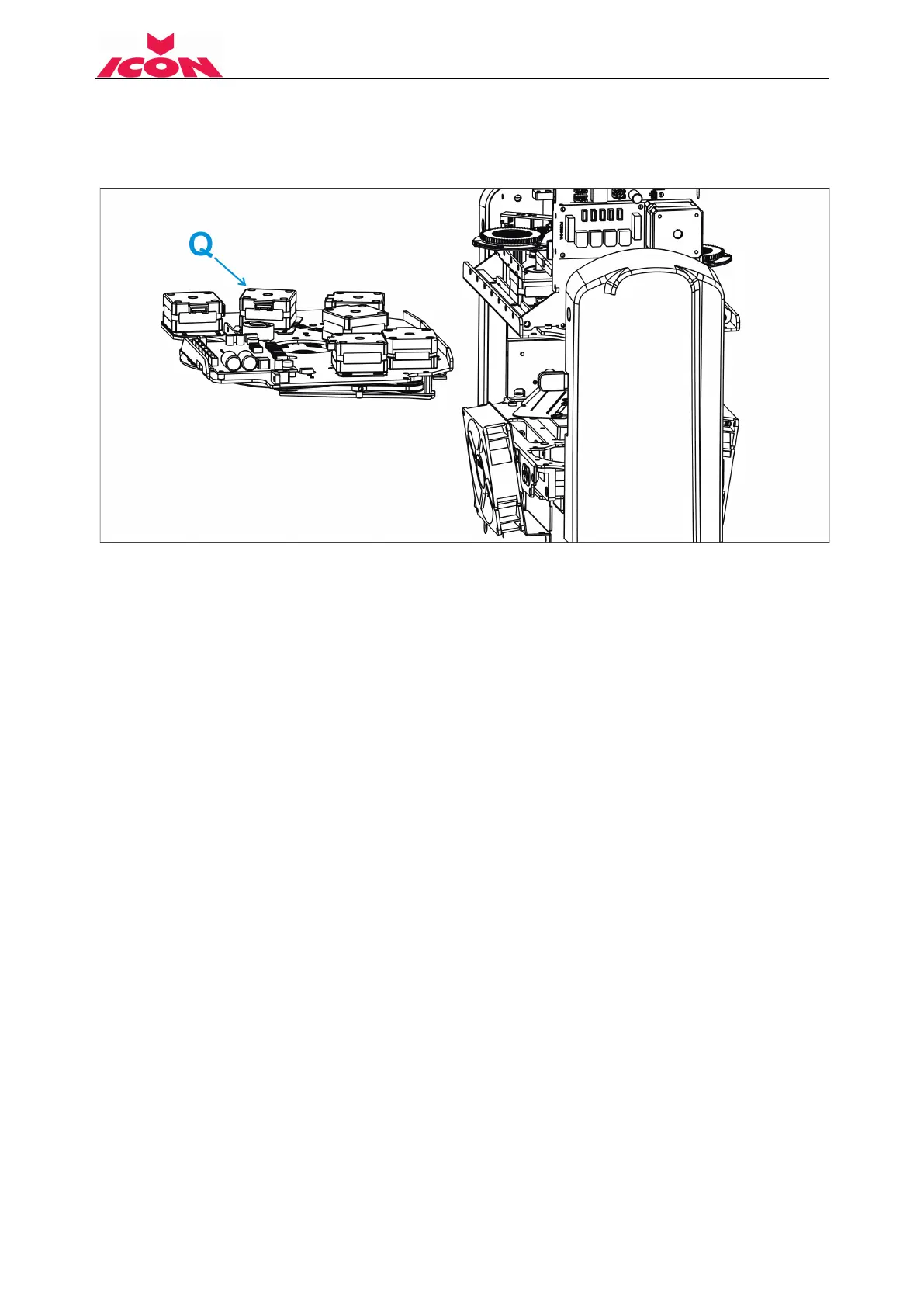

Remove 7: Pull out the gobo & color assembly Q until it’s separated from the fixture. This is all for
the gobo & color assembly disassembling.
Install 1: Push along the gobo & color assembly Q into the socket.
Pattern assembly installation is the backward procedure from 1-3. Last but not the least, install the
CMY module in the end 4-7.
