ICON QCON LITE - Getting Started; Connecting Your Qcon Lite Controller

Getting Started

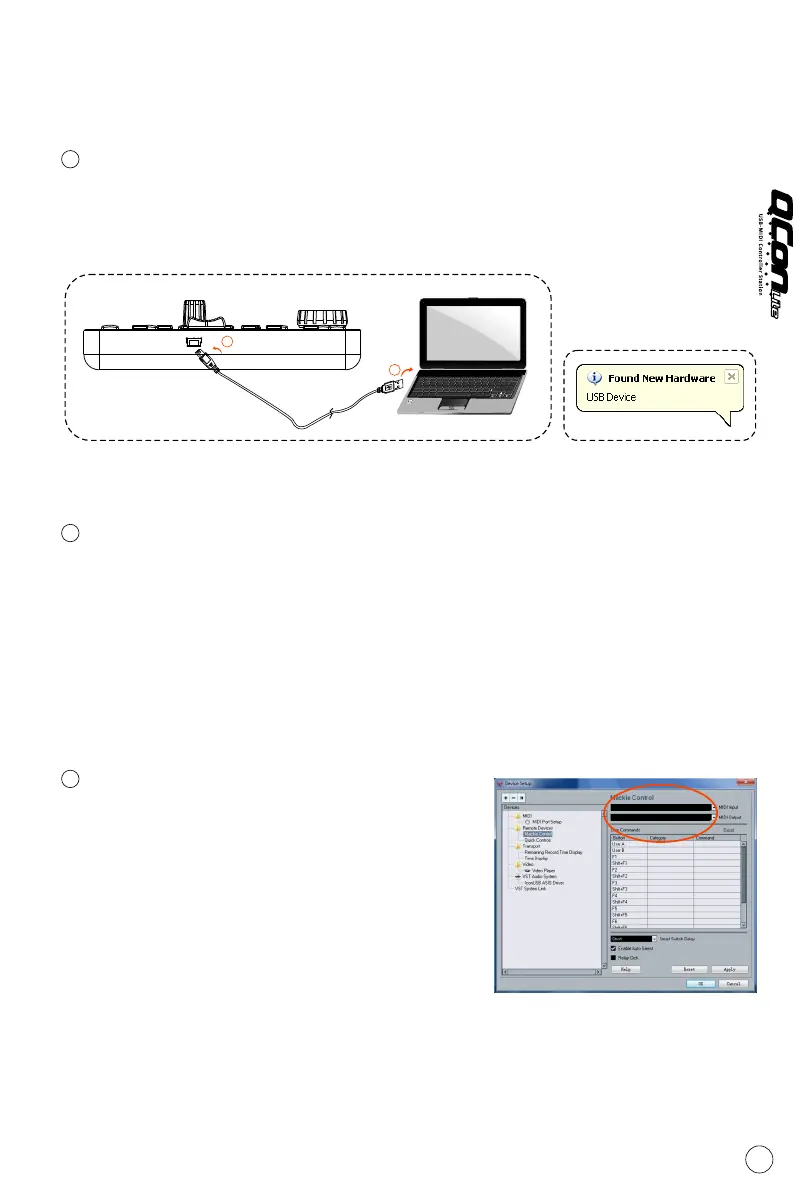

Connecting Your Qcon Lite Controller
Connect the Qcon Lite to your Mac/PC via the USB port.
Choose a USB port on your Mac/PC and insert the wide (flat) end of the USB
cable. Connect the cable's other end to the Qcon Lite. Your Mac/PC should
automatically “detect” the new hardware and notify you that it is ready to use.
Mode select & assign the MIDI messages to Qcon Lite
Select Mackie Control or HUI mode from the pull down menu for pre-mapped
MIDI mapping.
Setup your DAW
Activate the ICON Qcon Lite controller in
your DAW or MIDI software using “MIDI
Setup” or “MIDI Devices”.
TM TM TM
For Logic , Cubase and Nuendo , choose
Mackie Control at the “Device List”.
(Note: Every application does this a little
different, so refer to your software user
manual for the settings.)
iCON Qcon Lite Ver1.00
iCON Qcon Lite Ver1.00
1
2
3
6
Select User Defined mode for self MIDI assignment.Refer to page.9 for “Assign
TM
the MIDI messages with “iMap ” software.
Tip: Make sure you have selected the correct DAW mode in the pull down menu
