- 32 -

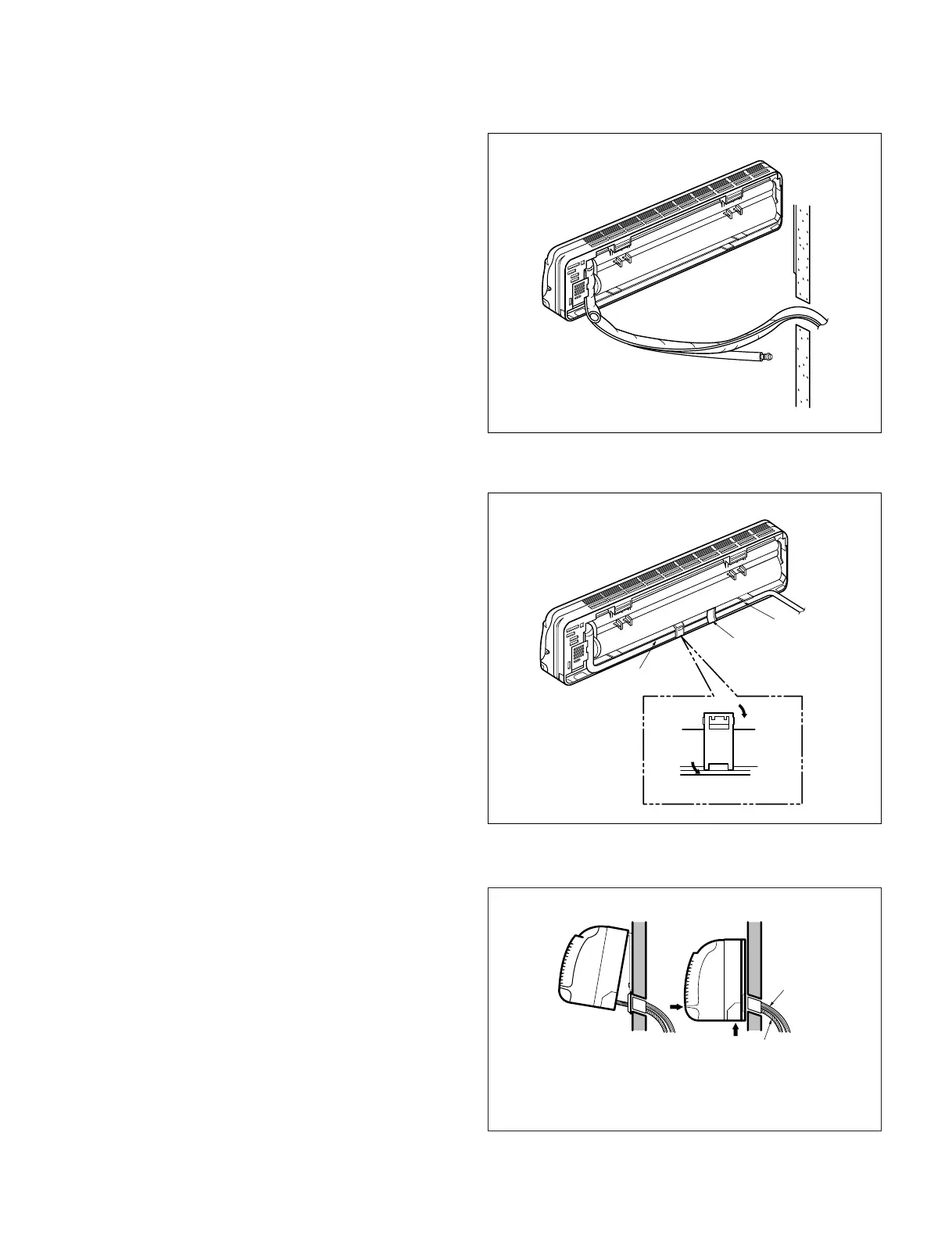

10. Set the pipings and the connecting cable to the
back of the chassis with the tubing holder
• Hook the edge of tubing holder to tap on chassis and
push the bottom of tubing holder to be engaged in
the bottom of chassis.
11. Indoor unit installation
• Hook the indoor unit onto the upper portion of
installation plate. (Engage the two hooks of the rear
top of the indoor unit with the upper edge of the
installation plate.)
Ensure the hooks are properly seated on the
installation plate by moving it in left and right.
Piping
Taping
Drain hose
Tubing holder
➀
Hook
➁ Push
Connecting
cable
Drain hose
Press the lower left and right side of the unit against the
Installation Plate until the lower hooks engage with their
slots (sound click).
