1) Checking the Drainage
1. Remove the Grille from the cabinet.
• Set the up-and-down air direction louver to open
position (horizontally) by finger pressure.
• Remove 3 screws.
• To remove the Grille, pull lower the left and right
side of the grille toward you (slightly tilted) and lift it
straight upward (Four tabs on the top inside edge of
chassis are clear of their slots).
2. Check the drainage.
• Pour a glass of water on the evaporator.
• Ensure if water flows drain hose of indoor unit
without any leakage.
(5)

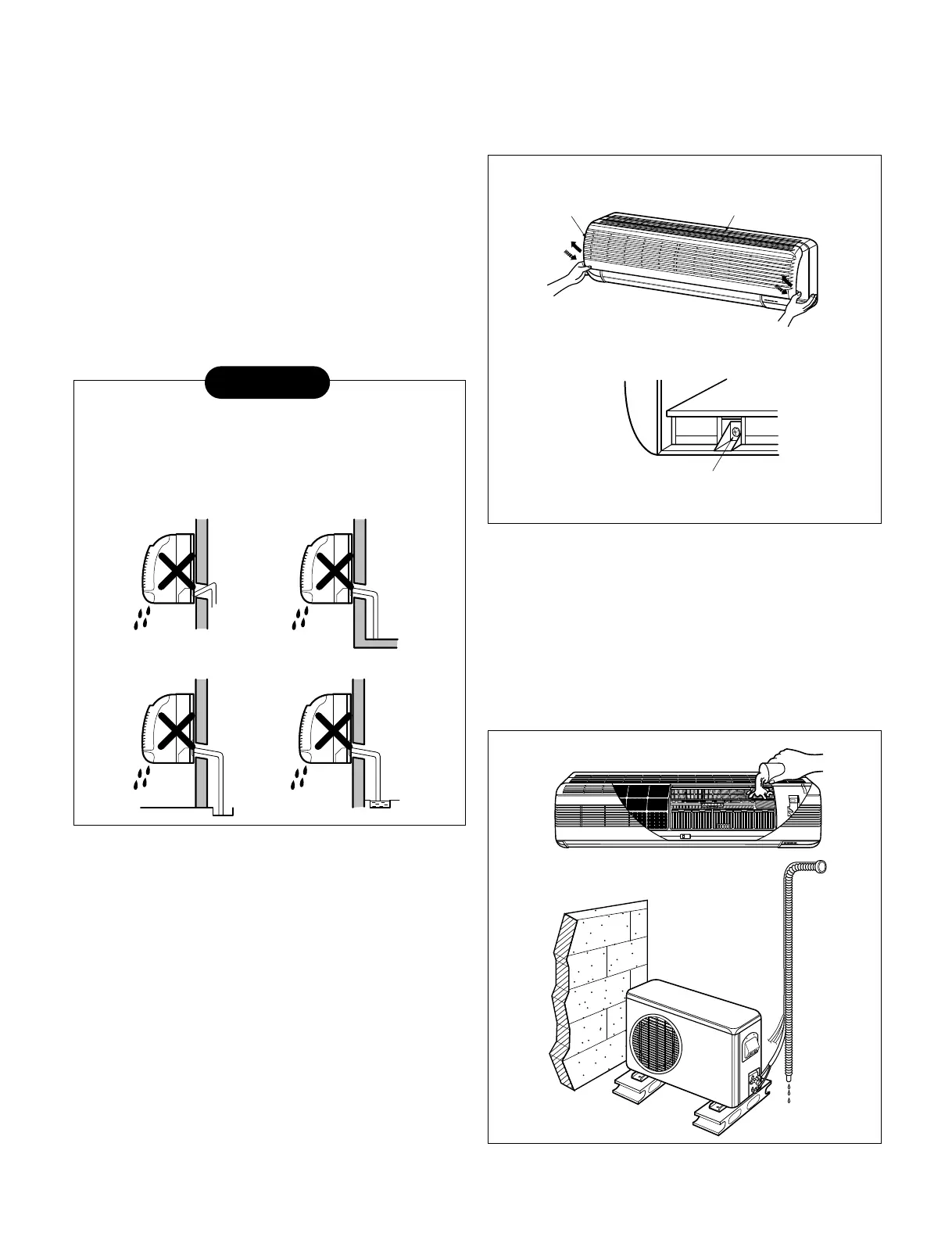

Checking the Drainage and Connecting the cable to Indoor unit
Grille
Chassis
Screw(3 places)
NOTE
• Outside drain hose should be lower than inside.
• The end of drain hose should not come in touch
with surface of land.
• The end of drain hose should not dip into sewer
or water.
To Next Page
