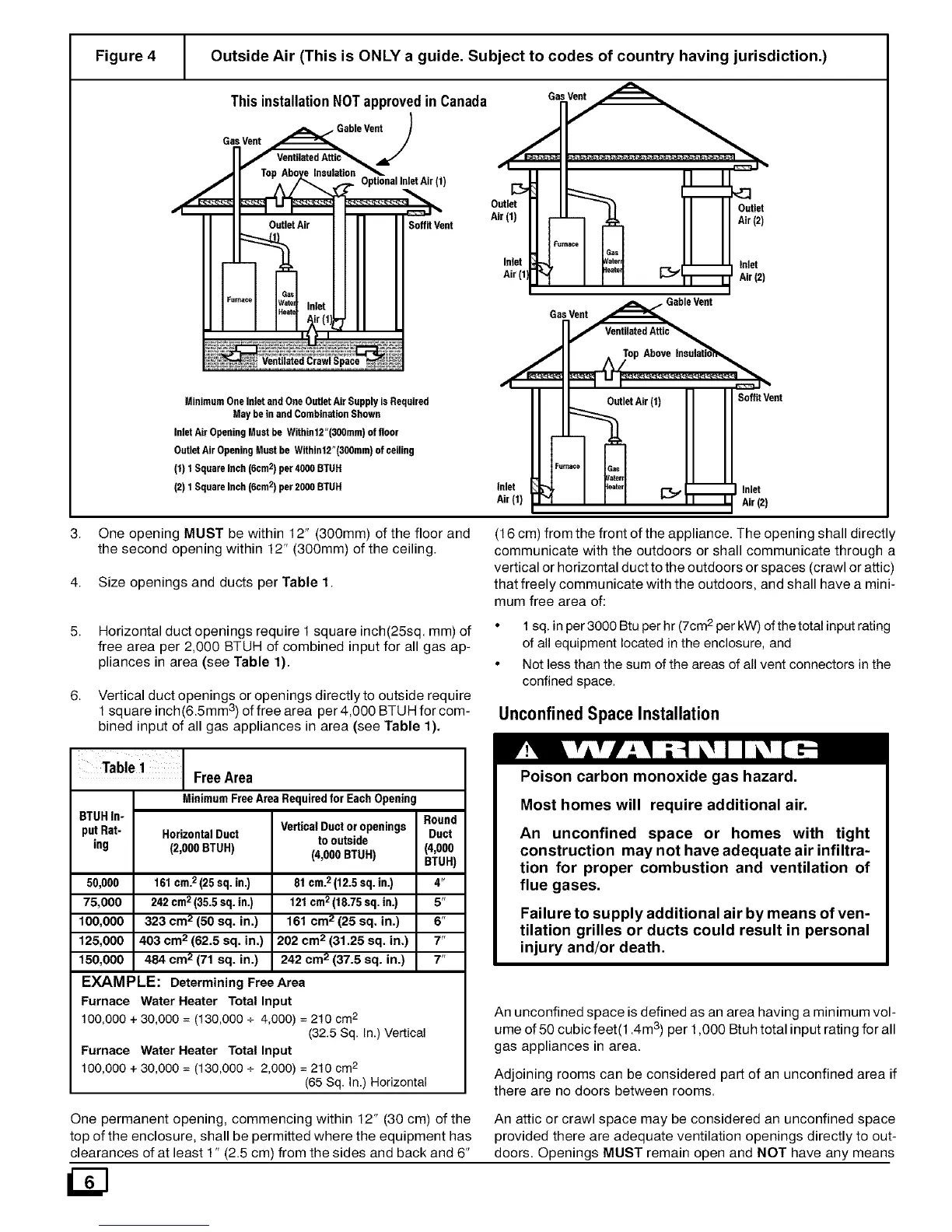

Figure 4 Outside Air (This is ONLY a guide. Subject to codes of country having jurisdiction.)
Gas Vent
This installation NOT approved in Canada
Ga_sVent _GableVent ;
I'11111vent,,=0dA ,o =/
"_ Outlet[_
Inlet
Air (1
MinimumOneInlet andOne OutletAirSupply is Required
May be inand CombinationShown
InletAir OpeningMustbe Within12"(300mm)of floor
OutletAir OpeningMustbe Withint2"(300ram)of ceiling
(t) 1Square Inch(6cm2)per4000 BTUR
(2)1Square Inch(6cm2)per2000 BTUR
Inlet
Air(t)
C a__ J JJ Air(2',
_, !ate, , _ Inlet
_, .t_ E_"I _ Air (2
GasVent ._Geble Vent
/ VentilatedAttic_
Top Above Insulati6]'_
t Outl_tAir(1) _ SoffitVent[_ Inlet
Air(2)
3.
4.
5.
One opening MUST be within 12" (300mm) of the floor and
the second opening within 12" (300mm) of the ceiling.
Size openings and ducts per Table 1.
Horizontal duct openings require 1 square inch(25sq, mm) of
free area per 2,000 BTUH of combined input for all gas ap-
pliances in area (see Table 1).
Vertical duct openings or openings directly to outside require
1 square inch(6.5mm 3) of free area per 4,000 BTUH for com-
bined input of all gas appliances in area (see Table 1).
(16 cm) from the front of the appliance. The opening shall directly
communicate with the outdoors or shall communicate through a
vertical or horizontal duct to the outdoors or spaces (crawl or attic)
that freely communicate with the outdoors, and shall have a mini-
mum free area of:
• 1sq. inper 3000 Btu per hr (7cm2 per kW) ofthe total inputrating
of all equipment located in the enclosure, and
• Not less than the sum of the areas of all vent connectors in the
confined space.
Unconfined Space Installation
Table 1
Free Area
MinimumFreeAreaRequiredfor EachOpening
BTUHIn-
putRat- HorizontalDuct
ing (2,000BTUH)
50,000 161 cm.2(25 sq.in.)
75,000 242cm2(35.5 sq.in.)
100,000 323 cm 2 (50 sq. in.)
125,000 403 cm2 (62.5 sq. in.)
150,000 484 cm 2 (71 sq. in.)
VerticalDuctoropenings Round
to outside Duct
(4,000BTUH) (4,000
BTUH)
81 cm.2(12.5 sq.in.) 4"
121 cm2(18.75sq. in.) 5"
161 cm 2(25 sq. in.) 6"
202 cm 2 (31.25 sq. in.) 7"
242 cm2 (37.5 sq. in.) 7"
EXAMPLE: Determining Free Area
Furnace Water Heater Total Input
100,000 + 30,000 = (130,000 + 4,000) = 210 cm2
(32.5 Sq. In.) Vertical
Furnace Water Heater Total Input
100,000 + 30,000 = (130,000 + 2,000) = 210 cm2
(65 Sq. In.) Horizontal
Poison carbon monoxide gas hazard.
Most homes will require additional air.
An unconfined space or homes with tight
construction may not have adequate air infiltra-
tion for proper combustion and ventilation of
flue gases.
Failure to supply additional air by means of ven-
tilation grilles or ducts could result in personal
injury and/or death.
An unconfined space is defined as an area having a minimum vol-
ume of 50 cubic feet(1.4m 3)per 1,000 Btuh total input rating for all
gas appliances in area.
Adjoining rooms can be considered part of an unconfined area if
there are no doors between rooms.
One permanent opening, commencing within 12" (30 cm) of the
top of the enclosure, shall be permitted where the equipment has
clearances of at least 1" (2.5 cm) from the sides and back and 6"
/SJ
An attic or crawl space may be considered an unconfined space
provided there are adequate ventilation openings directly to out-
doors. Openings MUST remain open and NOT have any means
