FEATURES

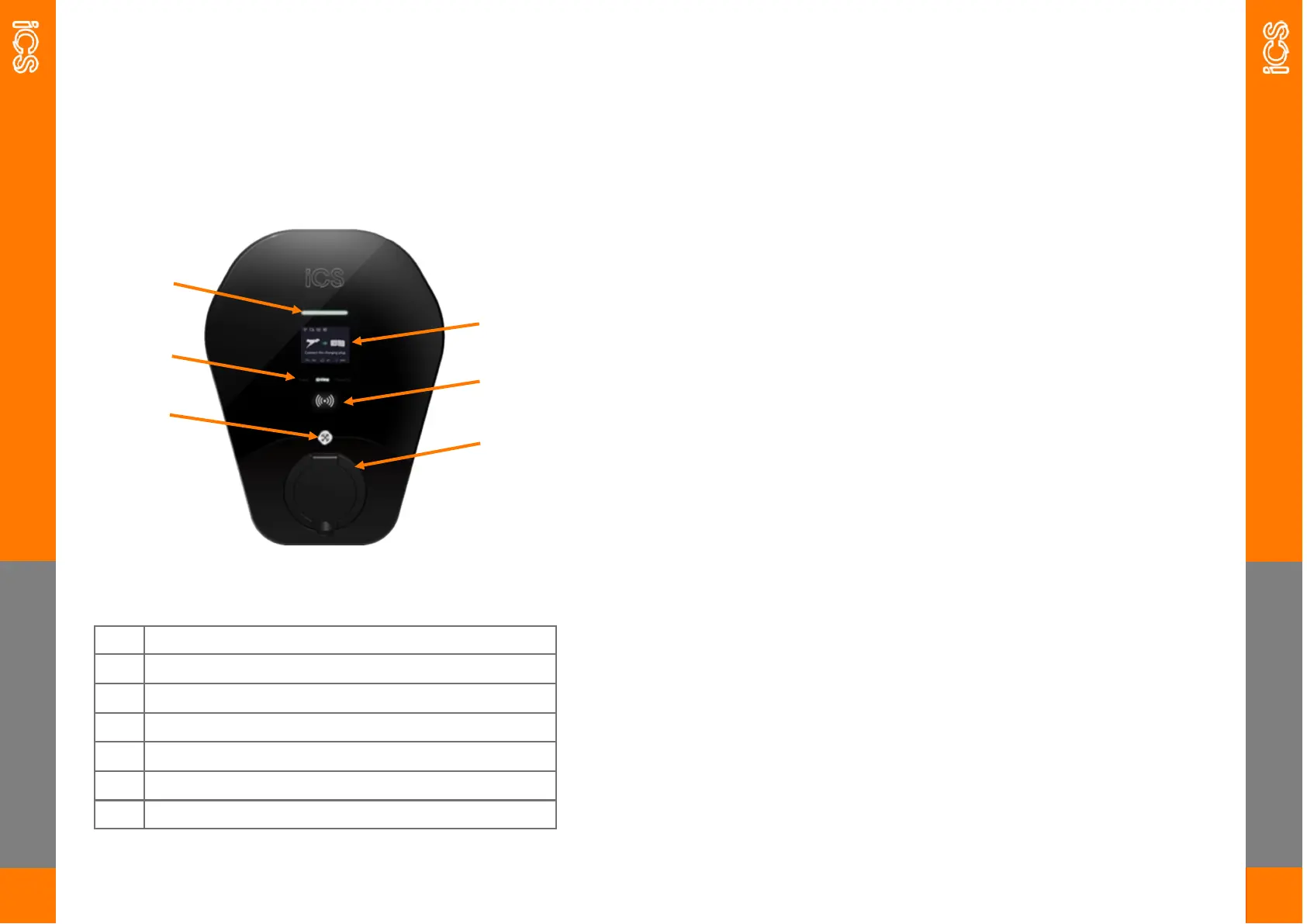

PRODUCT OVERVIEW

No. Item

1 RGB LED indicator

2 2.8’’ LCD screen

3 Status indicator, Fault, Online, Charging

4 RFID card reader

5 Physical button

6 Type-2 socket for EV Charging

FEATURES

NOTES BEFORE INSTALLATION

Dependent upon the type of cable used and if mechanical protection

is present the charger may require to be further protected by an

external Residual Current Device (RCD) to be installed in the

upstream circuit which complies with the following:

· Rated residual operating current not exceeding 30mA,

· Type-A,

· Complies with one of the following standards: IEC61008-1,

IEC61009-1, IEV60947-2 or IEC62423,

Please note, integrated onboard RCD protection to IEC60947-2 is in-

cluded within the charger.

TOOLS REQUIRED FOR INSTALLATION AND SETUP

· Philips #2 Screwdriver,

· Torx T25 Security Screwdriver,

· Electric Drill and Drill Bits,

· Crimp Tools,

· A device with Wi-Fi e.g. Phone, Tablet, Laptop etc.
