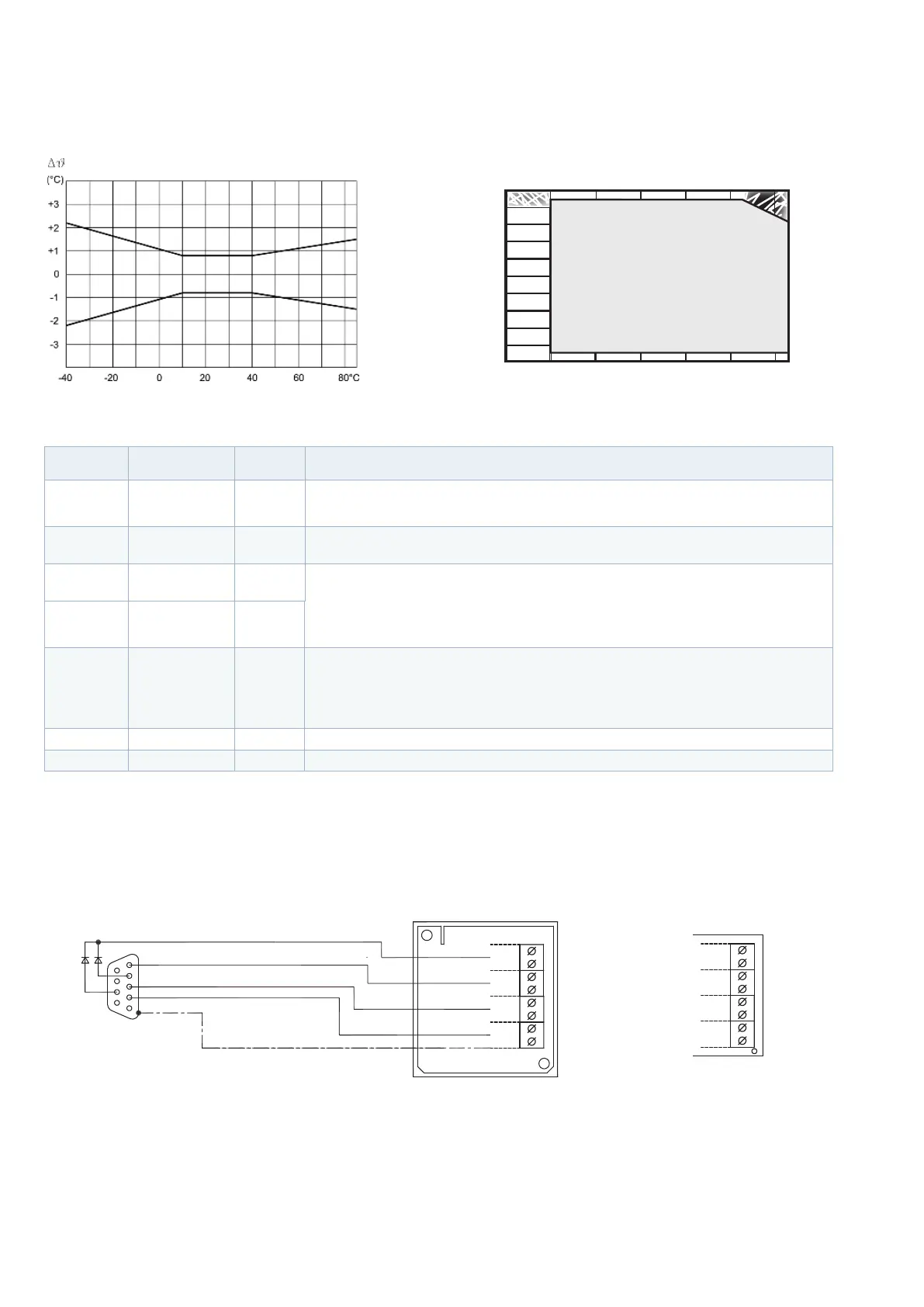

ICS IL Series - Accessories; Connection Diagram

Working range of humidity and temperature
Connection diagram RS232 and RS485
ILW(K)KR... with data line AWKR.02.00-xx.x ILW(K)KM...
recommended working range
% r.h.
100%
80%
60%
40%
20%
0%
-40°C 0°C 40°C 80°C
Temperature accuracy of the sensors
ZE36 as designation F5.2
adapter required for sensor tubes Ø 12mm
for humidity standard ZE 31/1 and wall console 20.009
ZE 31/1-12
ZE 31/1-33
ZE 31/1-75
ZE 31/1-84
ZE 31/1-97
as designation F5.2
humidity standard to check the accuracy of the sensors 12 %rh at 25°C
humidity standard to check the accuracy of the sensors 33 %rh at 25°C
humidity standard to check the accuracy of the sensors 75 %rh at 25°C
humidity standard to check the accuracy of the sensors 84 %rh at 25°C
humidity standard to check the accuracy of the sensors 97 %rh at 25°C
ZE33 as designation F5.2 adapter for humidity standard ZE 31/1
Flange 20.045 xing ange for sensor tubes Ø 12mm with rubber sealing
5
9
6
1
RD
BN
YE
BK
Shield
+U
B
GND
A / TX
B / RX
+U
B
GND
TX
RX
Accessories
Designation Order reference Info sheet Description
Sub-D
data line
RS232
AWKR.02-00-xx.x -
Sub-D data line up to max. 15 m for direct connection to serial PC interface;
(e.g. 15m: AWKR.02-00-15.0) Note: jack of data line IP30 / -10...50°C !
USB adapter
RS232->USB
USB adapter -
USB adapter for Sub-D-data line
To connect up the Sub-D-data line to a USB interface on the PC or Laptop
Setup cable
UART -> USB
BKKM.02.AK-01.8 -
Connecting cable sensor --> PC, suitable for all sensors of the L Series digital,
to congurate / change the Modbus parameters
