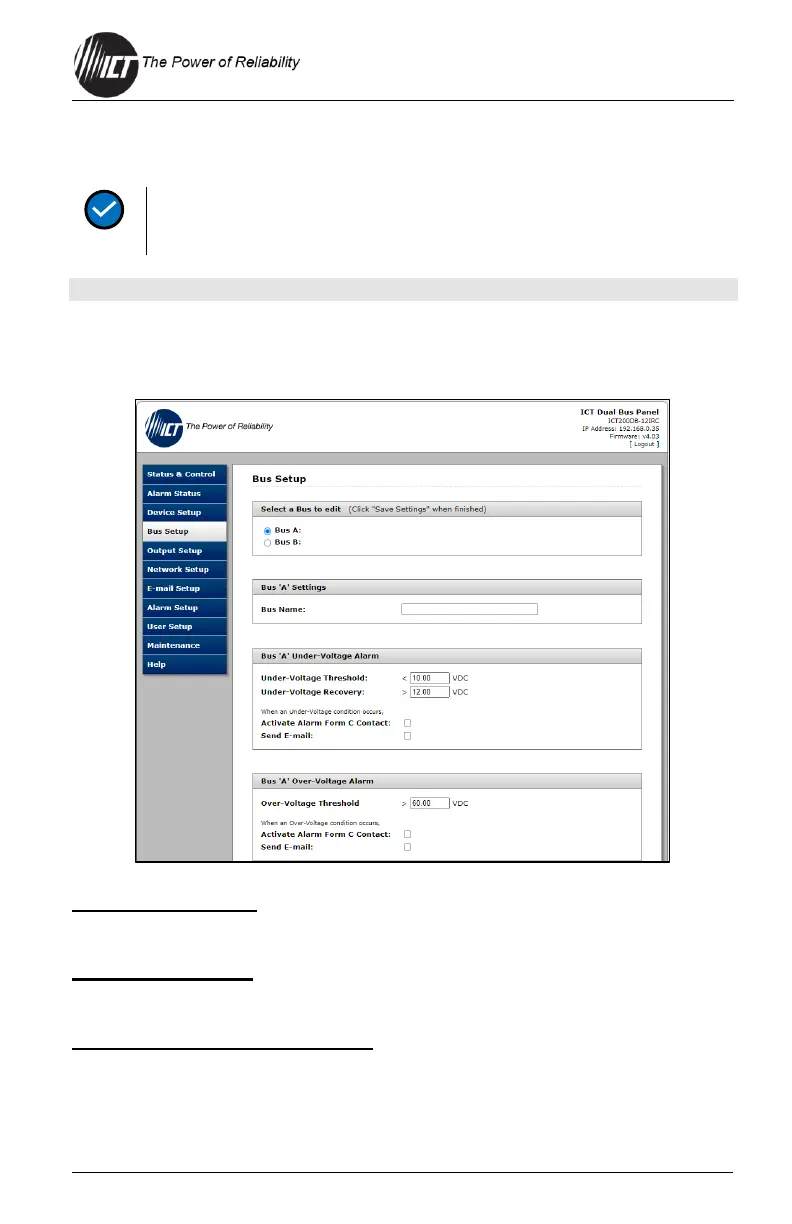

30 Innovative Circuit Technology Ltd.
PRODUCT SPECIFICATIONS
Operating Voltage (either bus): 10VDC to 60VDC, or -10VDC to -60VDC
Current Rating: 100A max, 80A continuous Bus A
100A max, 80A continuous Bus B
25A max, 20A Continuous per output (12/24V)
15A max, 12A Continuous per output (48V)
Fuse Capacity (ICT200DF): 25A Max ATO 32V x 6 per bus (12/24V)
15A Max FKS-ATO 80V x 6 per bus (48V)
CAUTION: Use only 80Vdc rated fuses, 15A max each for nominal 48Vdc
systems, or 25A max for 12 or 24V systems
NOTE: Fuses should normally be operated continuously at no more
than 80% of their nominal current rating
Breaker Capacity (ICT200DB): 25A Max 65Vdc x 6 per bus (12/24V)
15A Max 65Vdc x 6 per bus (48V)
CAUTION: Use only 65Vdc rated breakers, 15A max each for nominal
48Vdc systems, or 25A max for 12 or 24V systems
NOTE: Breakers should normally be operated continuously at no more
than 80% of their nominal current rating
Meter Accuracy, Voltage: Bus voltage readings +/-1%
Meter Accuracy, Current: Channel current readings +/- 3%
Power Consumption: < 6 W (all outputs disabled)
< 24W (all outputs enabled)
Alarm Form-C Contacts: 1 output per bus, 1A 60VDc max
Alarm Sensor Inputs: Five external dry contact alarm inputs,
configurable for NC or NO contacts. Applied
voltage 3.3V, 0.4mA for contact closure
detection
Ethernet: 10Base-T/100Base-T, RJ45 Connector
SNMP: SNMP v1/v2c supported
Input Connector: 4x Insulated M8 Stud, with slip-on insulating
boot, 75in-lb max torque
