Icy Box IB-M2HSF-703 User Manual

Manual IB-M2HSF-703 Manual IB-M2HSF-703

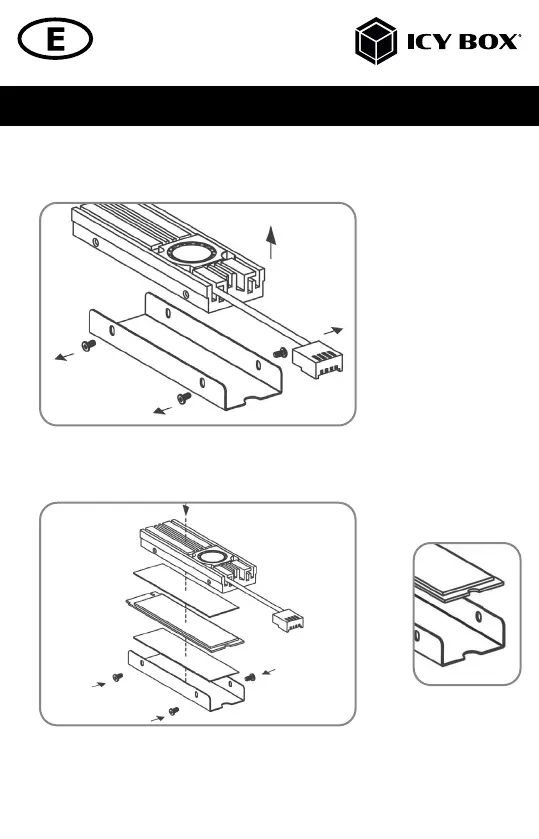

Installation
1. Unscrew all four screws of the counter plate on the bottom of the heat sink.
2. Install both thermal pads. Install the first thermal pad on the counter plate and the second thermal pad
on the top of your M.2 SSD. Now gently press the SSD together with the thermal pad on the counter
plate. Then press the M.2 SSD together with the counter plate on the bottom of the main heat sink and fix
it with all four screws.
Note: Make sure that the contacts of the M.2 SSD protrude over the counter plate. Also, when installing a
22x 80 mm M.2 SSD, make sure that the M.2 SSD and the counter plate are aligned in the same way (notch
at the end).
Hint

Icy Box IB-M2HSF-703 Specifications

General

Type	Heatsink/Radiatior
Fan diameter	20 mm
Number of speeds	1
Quantity per pack	1 pc(s)
Suitable location	Solid-state drive
Thermal conductivity	1.5 W/m·K
Rotational speed (max)	10000 RPM
Operating temperature (T-T)	-20 - 180 °C
Material	Aluminium, Silicone
Fan connector	4-pin
Product color	Black, Grey
Number of fans	1 fan(s)
Number of fins	8
Thermal pad included	Yes
Voltage	12 V
Harmonized System (HS) code	84733080

Weight and Dimensions

Depth	24 mm
Width	75 mm
Height	13 mm
Weight	51 g
Package depth	200 mm
Package width	105 mm
Package height	27 mm
Package weight	123 g
Fan dimensions (W x D x H)	20 x 20 x 6 mm
