Conversion Kit

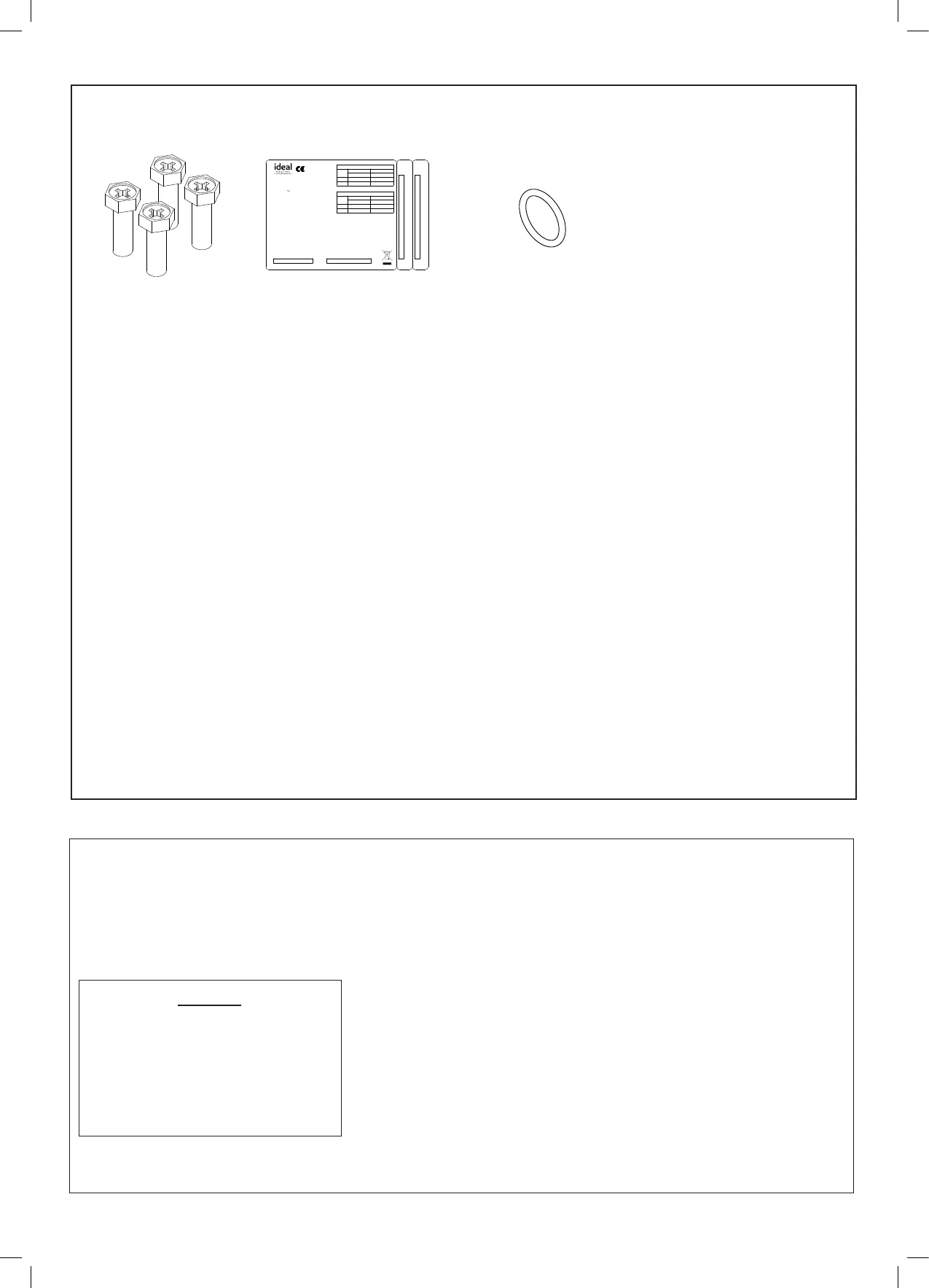

KIT CONTENTS
LEGEND
A. 4 o󰀨 - M5 x12 mm bolts
B. Self adhesive Natural Gas data plate
C. O-ring
A CB
SAFETY
EXAMPLE: VR 22546400000001
FOR NATURAL GAS ONLY
PO BOX 103, NATIONAL AVENUE, HULL,
EAST YORKSHIRE, HU5 4JN
MAX. FLOW TEMPERATURE 90`C
kW (Btu/h)
I.P.20
NOX CLASS 6
24.0(81,900)
23.3(79,500)
kW (Btu/h)
BOILER TYPE:C
53
C
63
B
23
78.6(268,200)
MAX.
25.8(88,000)
NON-COND'G
WITH A GOVERNED METER
MADE IN THE UK BY IDEAL BOILERS LTD.
kW (Btu/h)
26.6(90,750)
HEAT OUTPUT "P" =
MIN.
HEAT INPUT "Q" =
COUNTRIES OF DESTINATION: GB, IE
NET
OPERATING WATER PRESSURE
PMS = 6.0 bar MAX, 0.3 bar MIN
2797
CAT. I
2H
NATURAL GAS
230V 50HZ FUSED AT 13A
2H-G20-20mbar
MIN.
82.2(280,450)
POWER CONSUMPTION 110W
88.8(303,000)
MAX.
kW (Btu/h)
GROSS
80.0(272,950)
CONDENSING
80kW IMAX XTRA 2 80kW IMAX XTRA 2
CE 682118
80kW IMAX XTRA 2
RECORD THE ORIGINAL BOILER DETAILS
BOILER TO BE INSTALLED
GAS SUPPLY PRESSURE 20mbar
IMPORTANT
After completing the servicing or replacement of components always:
• Test for gas soundness.
• Check the water system is correctly lled and free of air. Air in the boiler
could cause damage to the heat exchanger.
• With the system hot examine all water connections for soundness.
• Check the gas rate and measure the combustion CO/CO
2
content. The
CO/CO
2
ratio of the ue gas should not be greater than 0.004 ratio & the
CO should not exceed 350ppm.
• Carry out functional checks as appropriate.
It is the law that any service work must be
carried out by a Suitably qualied Gas Safe
Registered Engineer. In IE service work
must be carried out by a competent person.
WARNING
ALWAYS TURN OFF THE GAS SUPPLY
AT THE GAS SERVICE COCK, AND
SWITCH OFF AND DISCONNECT
THE ELECTRICITY SUPPLY TO THE
APPLIANCE AND ANY EXTERNAL
CONTROLS BEFORE SERVICING OR
REPLACING COMPONENTS.
