REPLACEMENT OF LED SPOTLIGHT

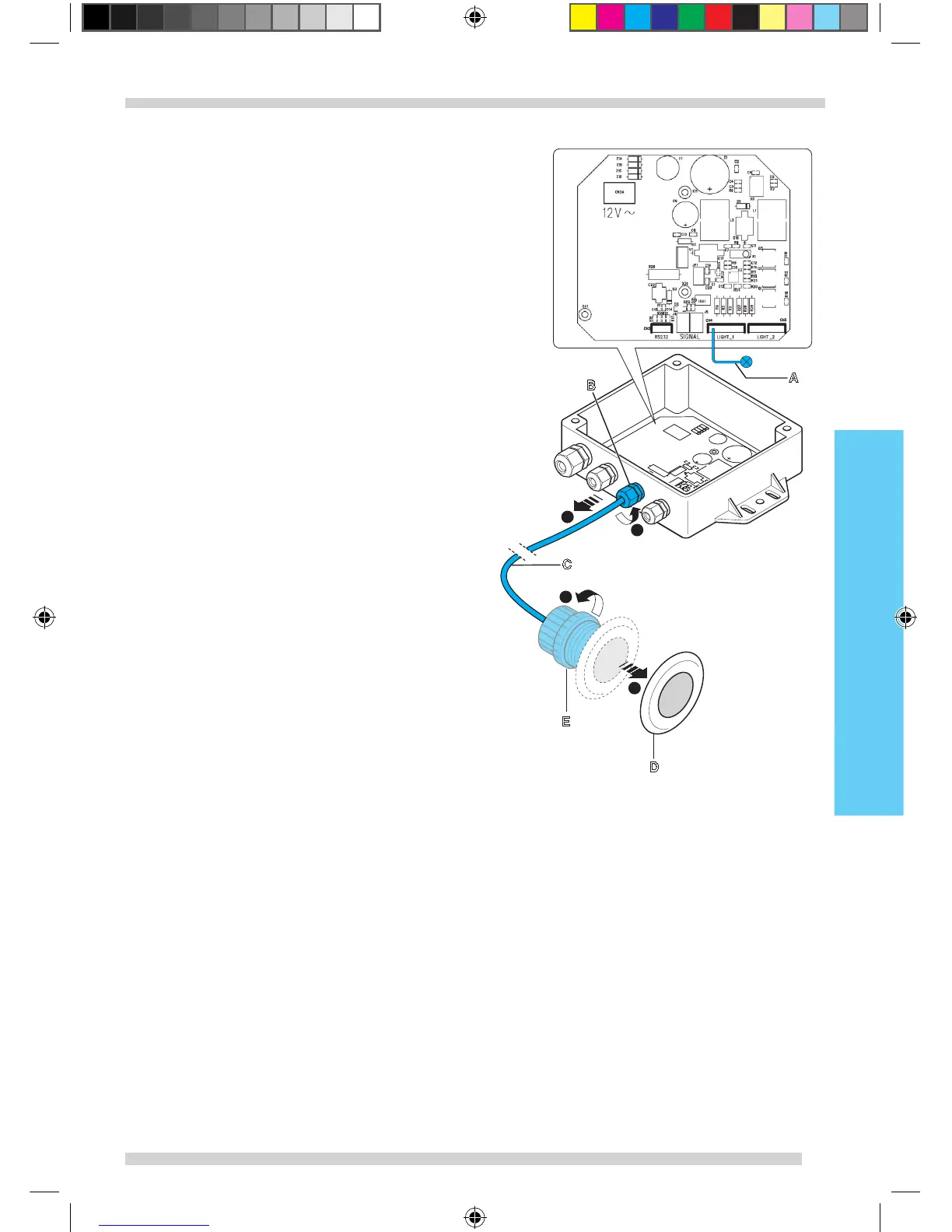

To replace the LED spotlight, proceed as follows
after disconnecting the power supply to the
system.
1) Open the box that contains the control unit
and disconnect cable "A" from the terminal
"LIGHT".
2) Loosen cable clamp "B" which holds the cable
in place.
3) Remove the cable "C" connected to the spot-
light.
4) Remove the ring nut "D", making sure you do
not scratch the tub.
5) Loosen the fastening ring nut "E" located on
the back of the tub.
6) Remove the entire block of the old spotlight
and replace it with a new one, following the
above steps in reverse order.
Note: The LED spotlight is considered a Class 1 LED
unit.
SPOT_1+12V ACRS232
L N
SPOT_2
2
3
4
5
B
D
E
A
C
F
Fig.8
