IDEAL INSTINCT 120

13
Installation & Servicing
INSTALLATION

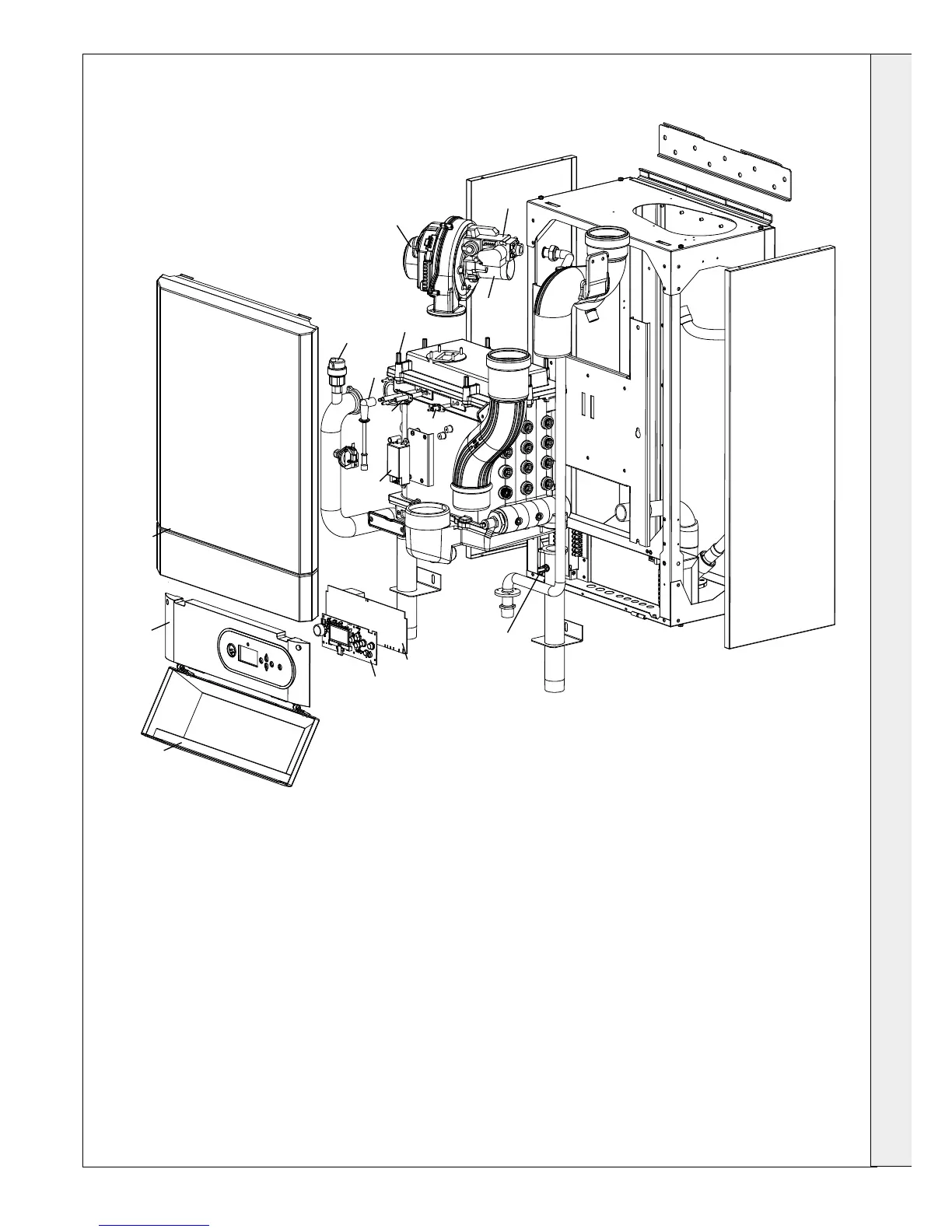

4 BOILER ASSEMBLY - Exploded View
INSTALLATION
308
502
309
304
306
105
302
305
208
232
230
231
310
301
501
80kW Model shown
KEY
105 Auto Air Vent
208 Burner Fixings Kit
230 Fan
231 Gas Valve Kit
232 Venturi 30kW Kit
301 Dry Fire Thermistor Kit
302 Lead Ignition Kit
304 Ignitor Unit
305 Electrode Detection Kit
306 Ignition Electrode Kit
308 Fascia Plastic
309 HMI Board
310 Primary PCB
501 Jacket Assembly Kit
502 Door Assembly Kit
